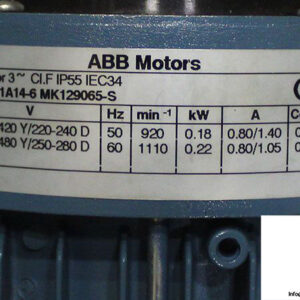

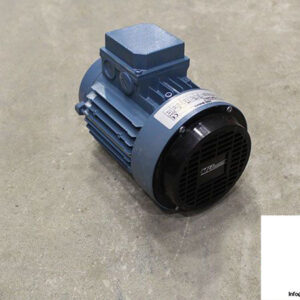

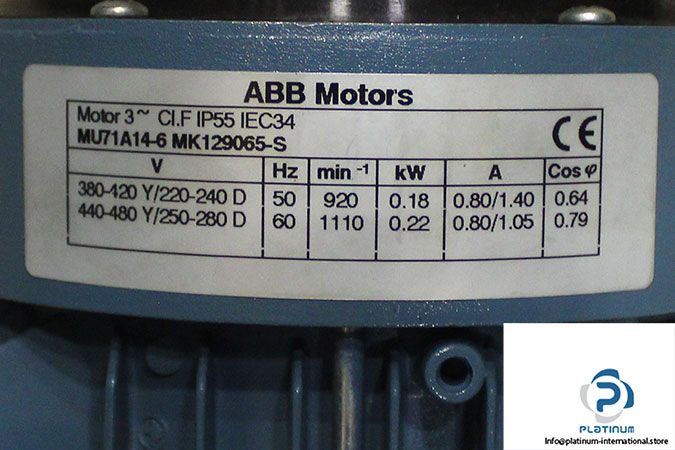

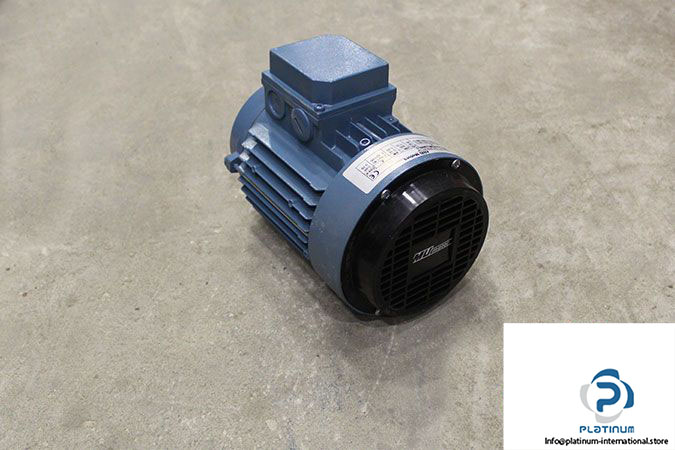

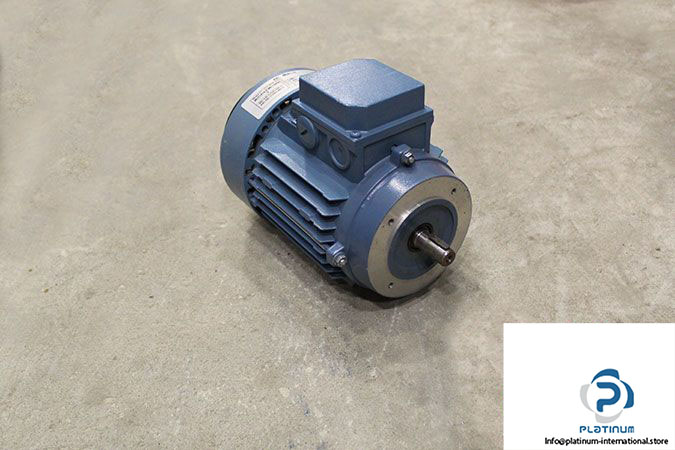

ABB MU71A14-6 MK129065-S 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: MU71A14-6MK129065-S

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Current (Star): 0.8 A

Rated Current (Delta): 1.4 A

Rated Speed: 920 min^-1

Rated Power: 0.18 kW

Power Factor: 0.64

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Current (Star): 0.8 A

Rated Current (Delta): 1.05 A

Rated Speed: 1110 min^-1

Rated Power: 0.22 Kw

Power Factor: 0.79

Shaft Diameter: 14 mm

Flange Diameter: 105 mm

Motor Size: 71A

Number of Poles: 6

Protection Class: IP55

Insulation Class: F

Weight: 4.9 kg
