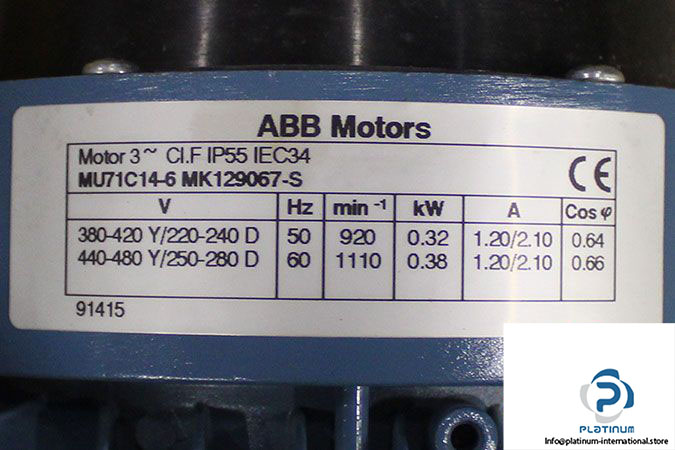

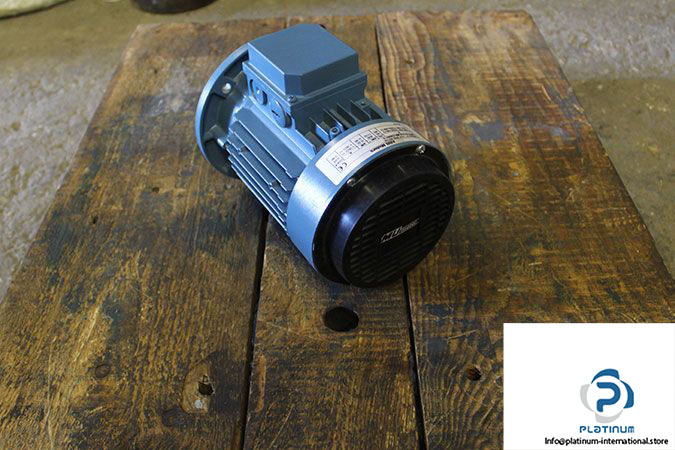

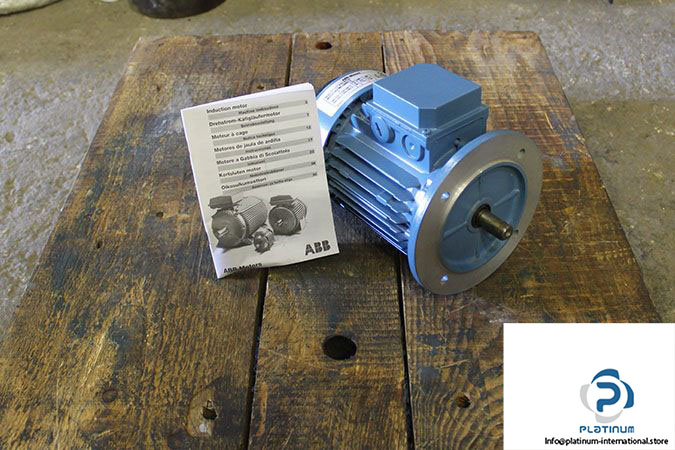

ABB MU71C14-6 MK129067-S 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: MU71C14-6MK129067-S

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 920 min^-1

Rated Power: 0.32 kW

Power Factor: 0.64

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 1110 min^-1

Rated Power: 0.38 kW

Power Factor: 0.66

Rated Current (Star): 1.2 A

Rated Current (Delta): 2.1 A

Flange Diameter: 160 mm

Shaft Diameter: 14 mm

Number of Poles: 6

Protection Class: IP55

Insulation Class: F

Weight: 6.78 kg
