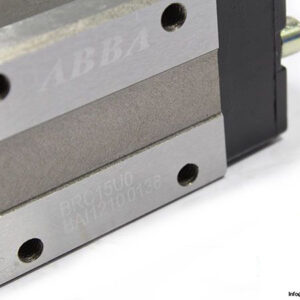

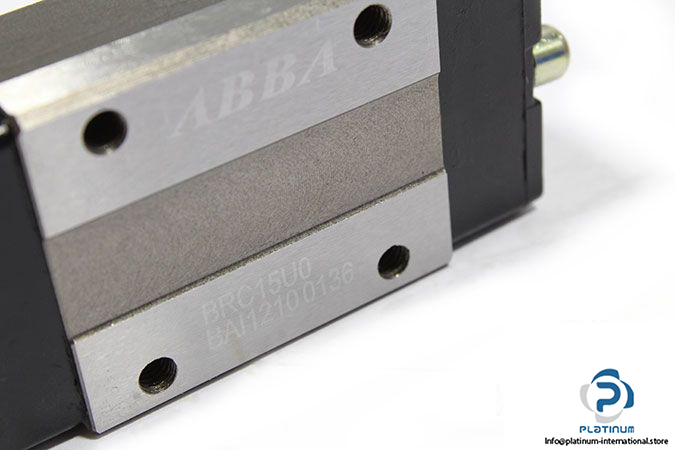

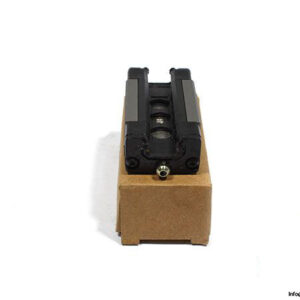

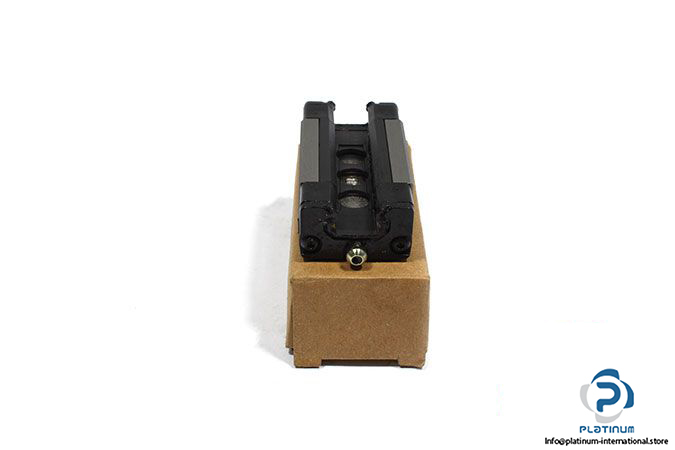

Abba BRC15U0 Linear Guideway Block
Manufacturer: ABBA
Type: Linear Guideway Block BRC
Model: BRC 15 U0
Size: 15 mm
Block Type: Slim-line block, Standard length, Standard height
Preload class: Z1, Light preload
Accuracy class: N
End Cap Type: End cap with Self-lubricant part
Basic Load Ratings:
Dynamic C: 850 kgf
Static C0: 1350 kgf

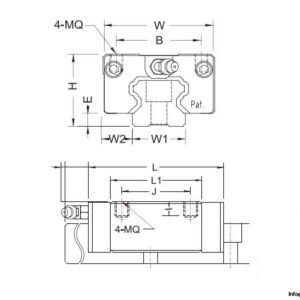

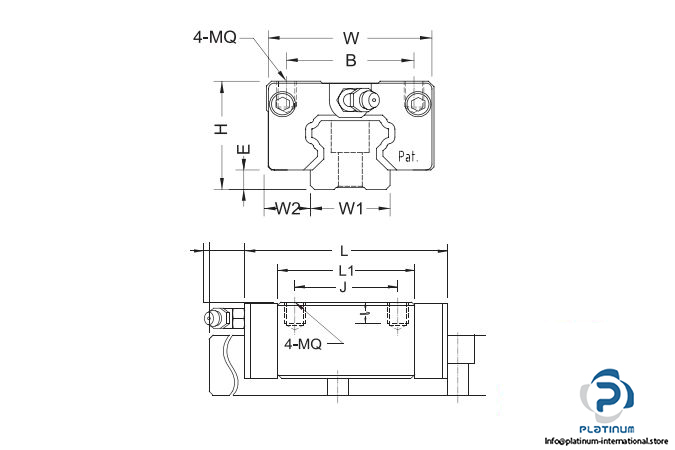

Dimensions
Total Height H: 24 mm
Block Width W: 34 mm
Block Length L: 66 mm
Weight: 0.17 kg
