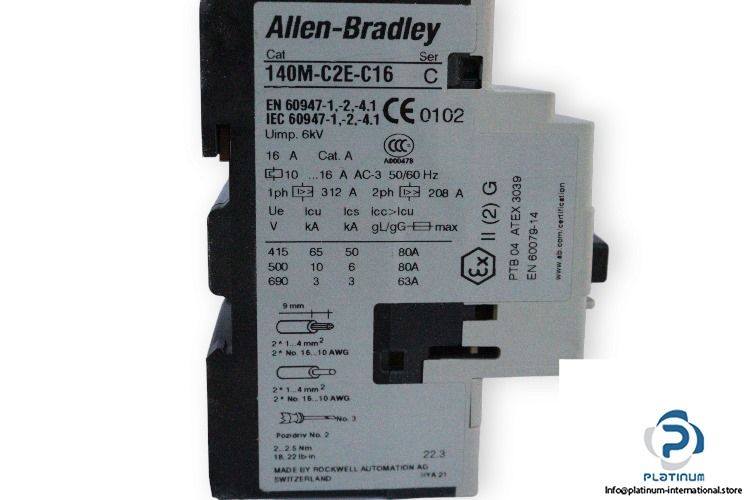

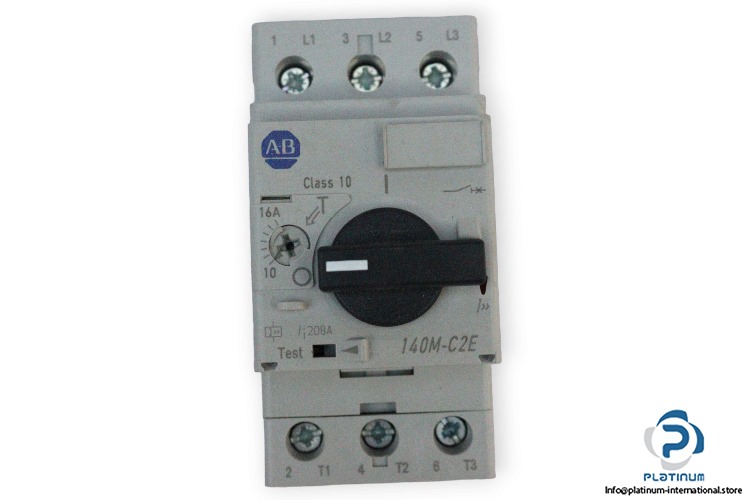

Allen-Bradley 140M-C2E-C16 Motor Protection

Manufacturer: ALLEN-BRADLEY
Type: Motor Protection
Model: 140MC2EC16

Rated Operating Voltage Max.: 690 V AC
Rated Operational Current (Ie): 16 A
Sitting Range: 10 … 16 A
Magnetic Release Current: 208 A
Power Loss: 6 W
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 6 kV
Power AC-3:
230 V AC: 4 kW
400 V AC: 7.5 kW
Rated Service Short-Circuit Breaking Capacity (Ics):
415 V: 50 kA
500 V: 6 kA
690 V: 3 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
415 V: 65 kA
500 V: 10 kA
690 V: 3 kA
Poles No.: 3-Poles
Type of Electrical Connection: Screw Connection
Dimensions: 90 x 45 x 74.5 mm
