Motors & Drives Servo Gearboxes

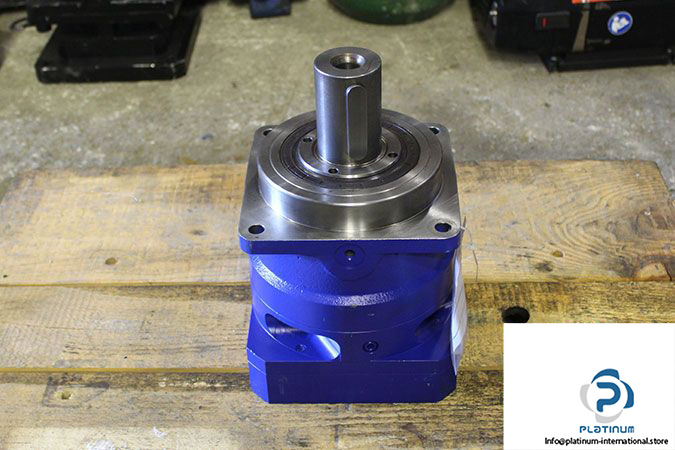

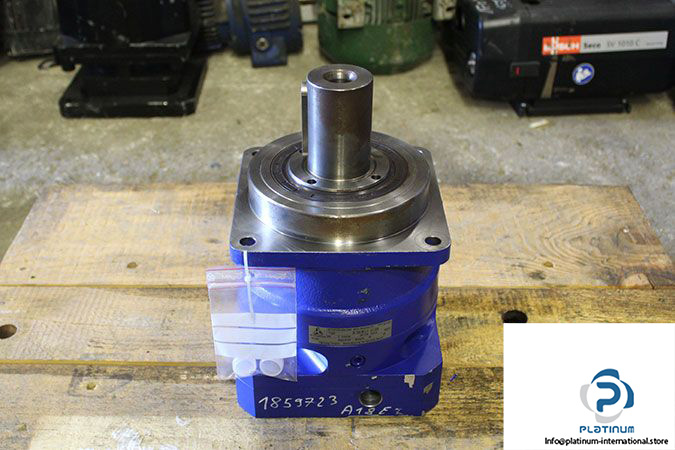

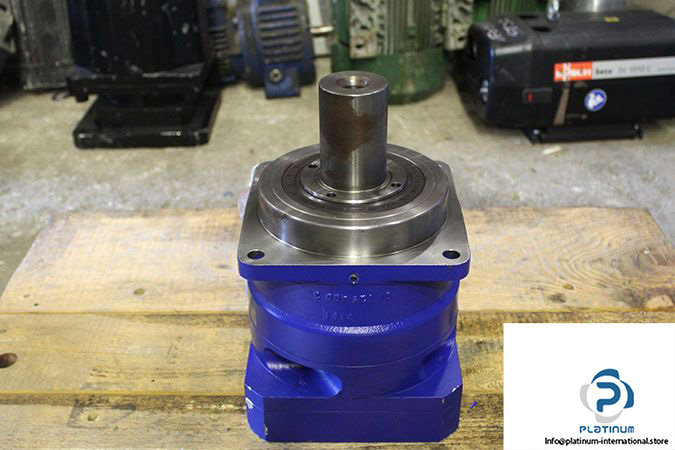

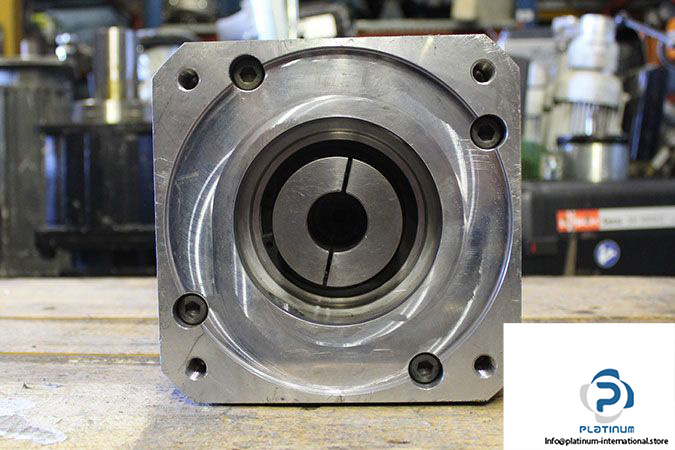

Alpha SP 180-MF1-5-141-000 Planetary Gearbox

Name: ALPHA SP 180-MF1-5-141-000 PLANETARY GEARBOX
SKU: 981759
Price: 1100.00 USD
Availability: LimitedAvailability

alpha-SP-180-MF1-5-141-000-planetary-gearbox-1

alpha-sp-180-mf1-5-141-000-planetary-gearbox-3

alpha-sp-180-mf1-5-141-000-planetary-gearbox-2

alpha-sp-180-mf1-5-141-000-planetary-gearbox-4

New

Available on request

1 100,00$

Manufacturer

ALPHA

SKU

981759

Category

Servo Gearboxes

Condition

New

Alpha Gear Gearbox Planetary Reducer

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

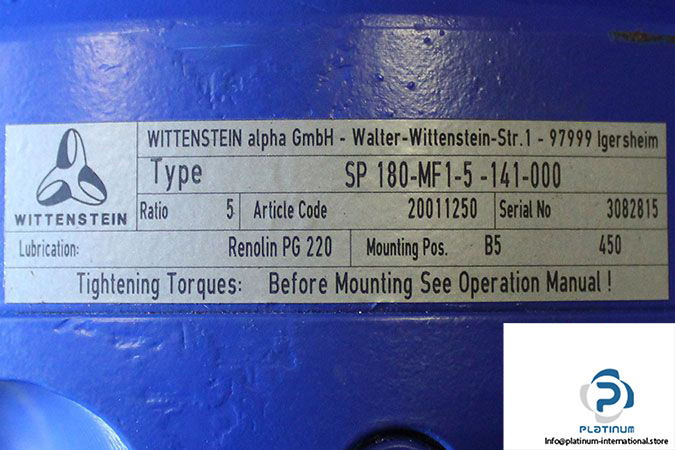

Manufacturer: Alpha

Type: Planetary Gearbox

Model: SP 180-MF1-5-141-000

Art No: 20011250

Ratio: 5

Size: 180

Stages: 1-Stage

Max. Torque: 1936 Nm

Nominal Torque: 919 Nm

Permitted Average Input Speed: 1500 rpm

Max. Input Speed: 4500 rpm

Max. Axial Force: 15570 N

Max. Lateral Force: 15400 N

Ambient Temperature: -15…40 C°

Efficiency at Full Load: 97

Mounting Position: B5

Flange Diameter: 190 mm

Shaft Diameter (Input): 32 mm

Shaft Diameter (Output): 55 mm

Oil amount: 450 cmm

Lubrication: Renolin PG 220

Weight: 27.3 kg
