Asahi UCT 202 Take UP Ball Bearing Unit
Used
In stock1 unitReady to ship
Take Up Ball Bearing Unit
Asahi UCT202 bearing unit with UC202 insert and T204 housing. 15 mm shaft diameter, set screw locking, and durable take-up design for reliable shaft alignment in machinery.AsahiBallbearingComponentsEquipmentHousingIndustrialLockMechanicalRotatingscrewSetshaftSupportT204TakeUC202UCT202Unitup
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

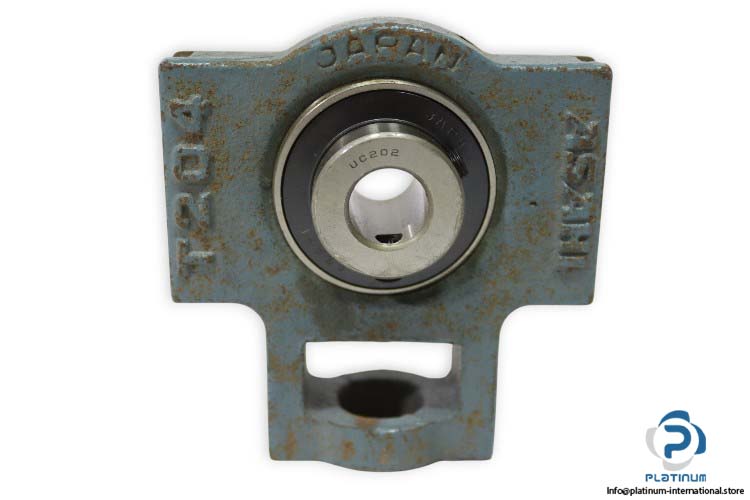

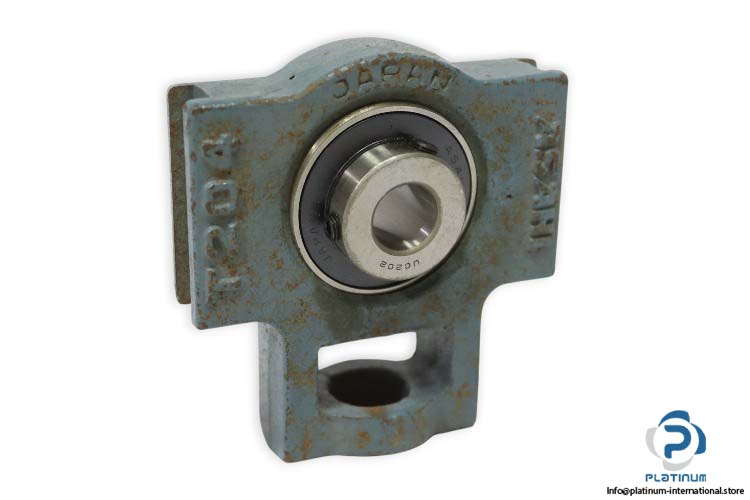

Asahi UCT202 Take Up Ball Bearing Unit
The Asahi UCT202 is a precision-engineered take-up ball bearing unit designed for smooth motion, durability, and reliable shaft alignment in industrial machinery.
Manufacturer: Asahi
Type: Take Up Ball Bearing Unit
Model: UCT202
Bearing No.: UC202
Housing No.: T204

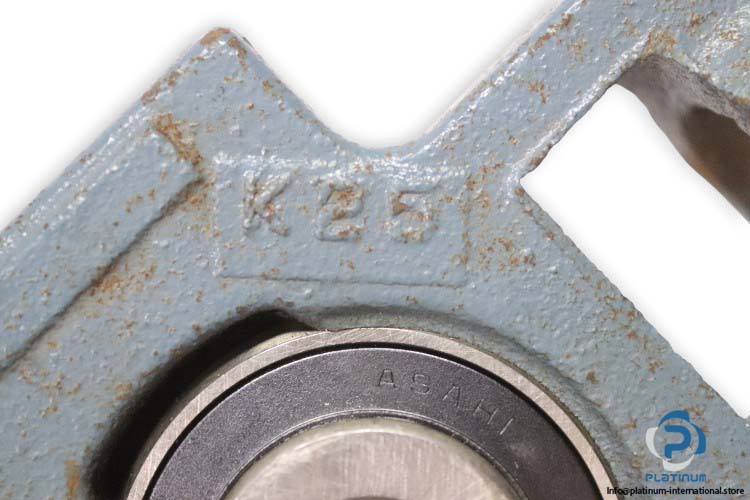

Code: K25
| Shaft Diameter (d) | 15 mm |
| Overall Width (i) | 32 mm |
| Width of Inner Ring (Bi) | 31 mm |
| Overall Height | 89 mm |
| Height of Attachment End | 51 mm |
| Distance from Attachment End Face to Center Line of Spherical Seat Diameter | 61 mm |
| Overall Length | 94 mm |
| Basic Load Rating (Dynamic, Static) | 12.8, 6.6 kN |
| Housing Type | Take-up |
| Locking Device | Set Screw |
