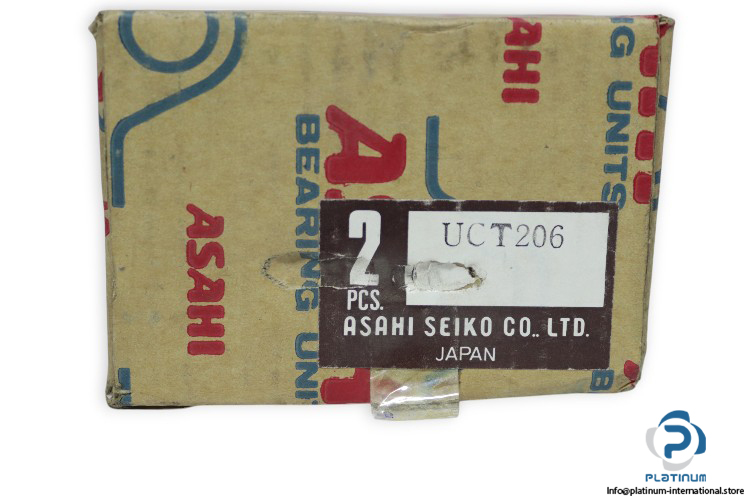

Asahi UCT 206 Take UP Ball Bearing Unit
New
In stock1 unitReady to ship
Take-Up Ball Bearing Unit
The Asahi UCT 206 Take-Up Ball Bearing Unit features the T206 housing and UC206 bearing, providing precision, durability, and reliable performance for demanding industrial applications.20630AlignmentAsahiBallbearingbearingsCapacitydiameterHighHousingIndustrialLoadmmPrecisionreliableshaftT206Take-upUC206UCTUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

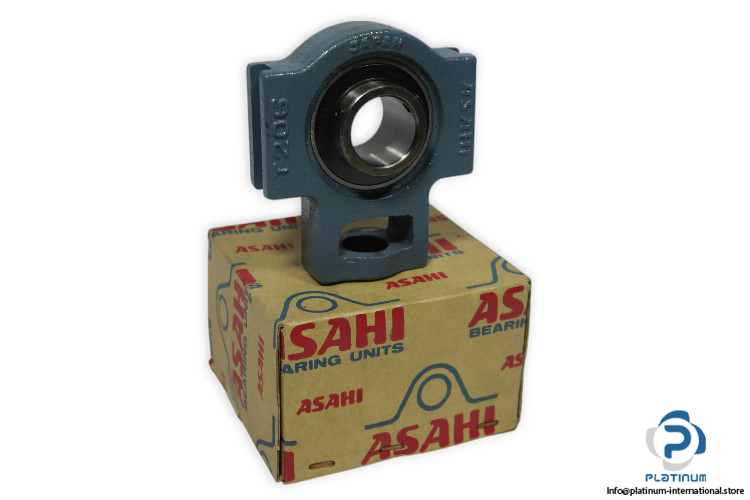

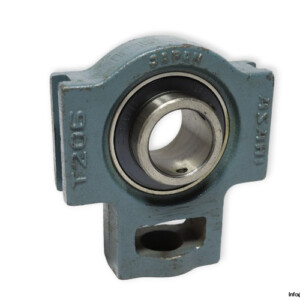

Asahi UCT 206 Take-Up Ball Bearing Unit
The Asahi UCT 206 Take-Up Ball Bearing Unit is a reliable and efficient component designed for industrial applications. Featuring the T206 housing and UC206 bearing, this unit ensures durability, precision, and consistent performance in demanding environments.
Manufacturer: Asahi
Type: TAKE UP BALL BEARING UNIT
Model: UCT 206
The Asahi UCT 206 Take-Up Ball Bearing Unit is ideal for industrial systems requiring precision alignment, reliable operation, and excellent load handling capabilities.

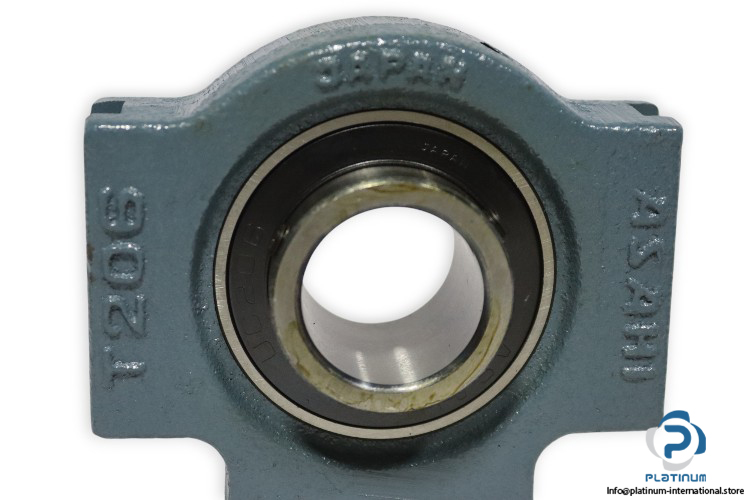

| Housing No. | T206 |

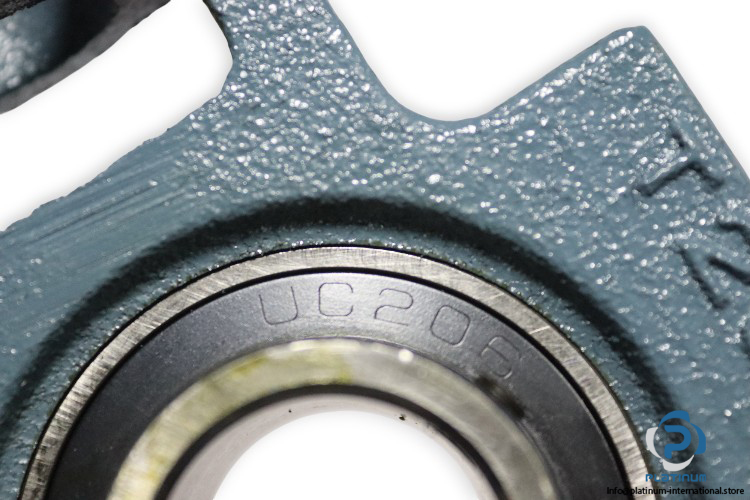

| Bearing No. | UC206 |
| Shaft Diameter (d) | 30 mm |
| Overall Width (i) | 37 mm |
| Width of Inner Ring (Bi) | 38.1 mm |
| Width of Piloting Groove | 12 mm |
| Overall Height | 102 mm |
| Height of Attachment End | 56 mm |
| Distance from Attachment End Face to Center Line of Spherical Seat Diameter | 70 mm |
| Overall Length | 113 mm |
| Diameter of Attachment Bolt Hole | 22 mm |
| Length of Attachment Slot | 16 mm |
| Height of Attachment Slot | 37 mm |
| Length of Piloting Groove | 57 mm |
| Basic Load Rating (Dynamic, Static) | 19.6, 11.3 kN |
| Housing Type | Take-up |
| Locking Device | Set Screw |
| Item Per Set | 2 |
