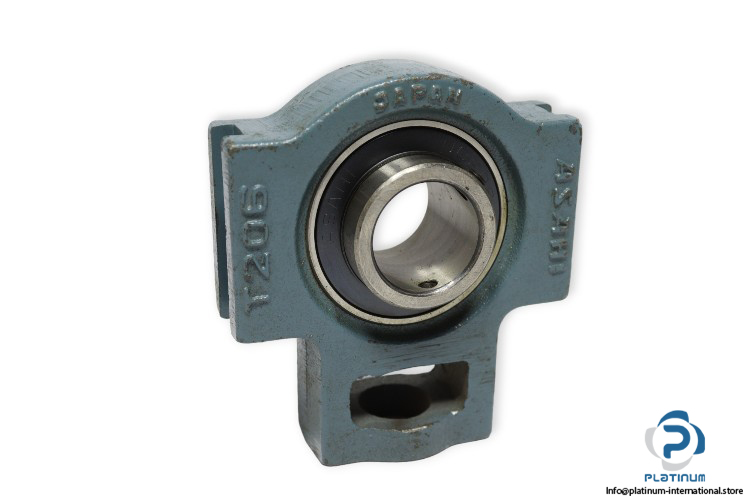

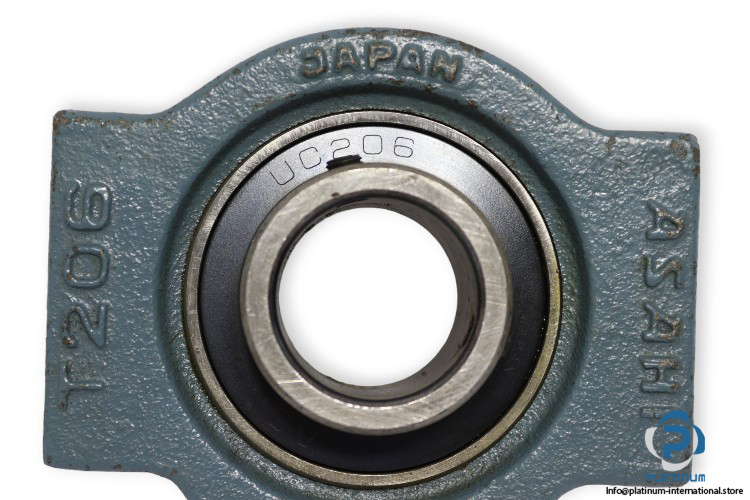

Asahi UCT206 Take UP Ball Bearing Unit
New
In stock1 unitReady to ship
Manufacture: Asahi
Type:
take up ball bearing unit
Model:
UCT 206
Housing No.:
T206
Bearing No.:
UC206
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacture: Asahi
Type: take up ball bearing unit
Model: UCT 206
Housing No.: T206
Bearing No.: UC206
Shaft diameter d: 30 mm
Overall width i: 37 mm
Width of inner ring Bi: 38.1 mm
Width of piloting groove k: 12 mm
Overall height a: 102 mm
Height of attachment end p: 56 mm
Distance from attachment end face to center line of spherical seat diameter h: 70 mm
Overall length w: 113 mm
Diameter of attachment bolt hole S: 22 mm
Length of attachment slot o: 16 mm
Height of attachment slot q: 37 mm
Length of piloting groove b: 57 mm
Housing type: Take-up
Locking Device: Set Screw
