Asahi Ucft 209 Oval Flange Ball Bearing Unit
New
In stock150 unitsReady to ship
Bearing Unit
Asahi UCFT209 oval flange bearing unit with 45 mm bore, cast iron housing, and UC209 insert bearing, designed for stable shaft support in industrial applications.Recommended:
Ideal choice for replacing worn bearing units to improve machine reliability and reduce maintenance downtime.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

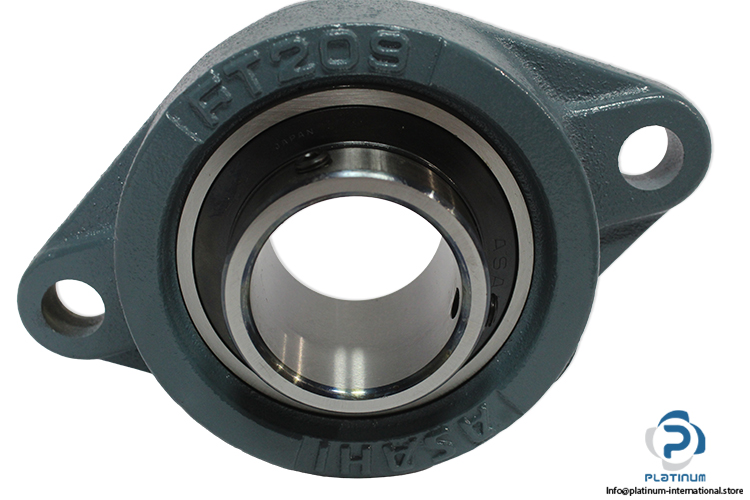

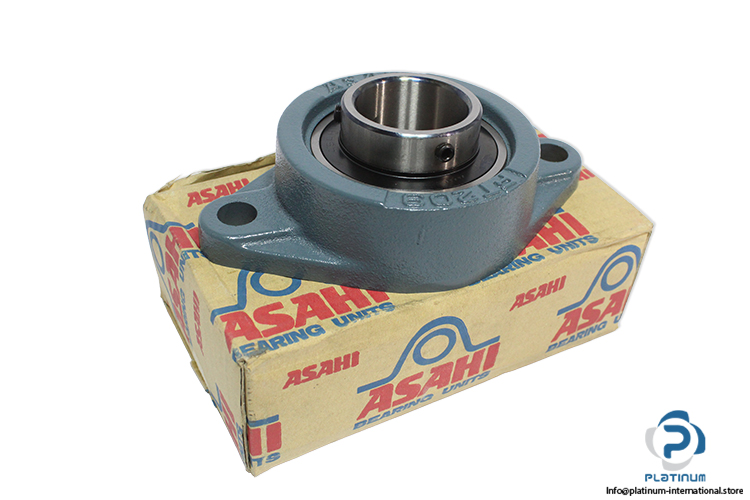

Asahi UCFT209 Oval Flange Ball Bearing Unit
The Asahi UCFT209 Oval Flange Ball Bearing Unit is a high-quality mounted bearing solution designed for reliable shaft support in industrial applications. Built with a durable cast iron housing and precision UC209 insert bearing, this unit ensures stable operation, easy installation, and long service life in demanding environments.
Manufacturer: Asahi
Type: Oval Flange Ball Bearing Unit
Model: UCFT209

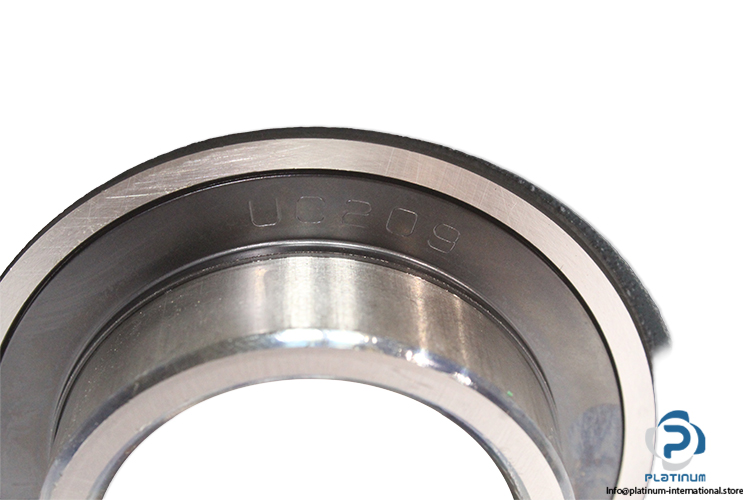

Bearing No.: UC209
Housing Number: FT209

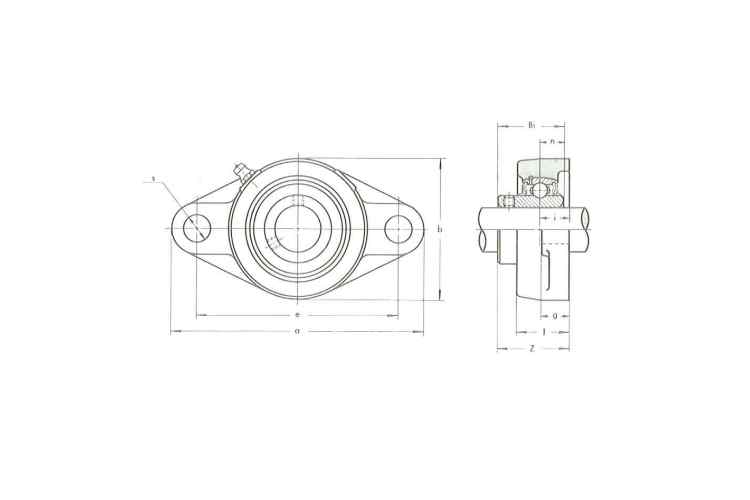

Dimensions:
| Bore Diameter (d) | 45 mm |
| Overall Length (L) | 179 mm |
| e | 148.4 mm |
| i | 21.8 mm |
| g | 14 mm |
| I | 40 mm |
| S | 16 mm |
| b | 111 mm |
| Z | 52 mm |
| Bi | 49.2 mm |
| n | 19 mm |
| Mounting | Oval Flange |
| Material | Cast Iron |
| No. of Bolts | 2 |
