Asahi UCF210 Four-Bolt Square Flange Unit
New
In stock2 unitsReady to ship
FLANGE UNIT
Heavy-duty four-bolt flange unit by Asahi with 50 mm bore, cast housing, and pre-lubricated UC210 bearing, ideal for high-load applications in industrial environments.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

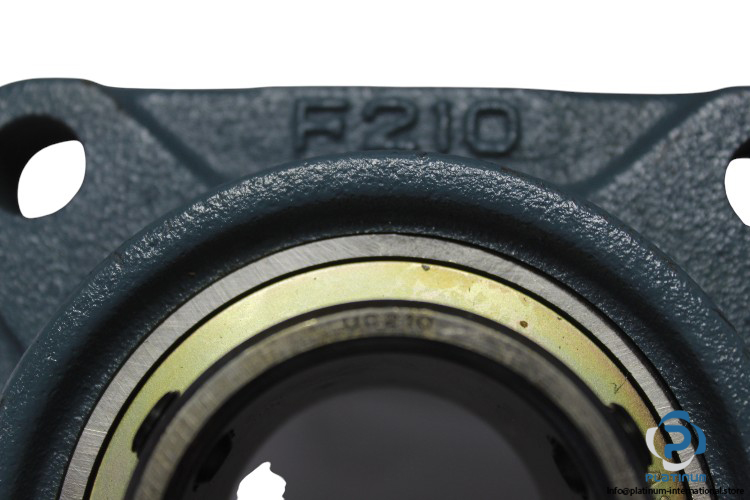

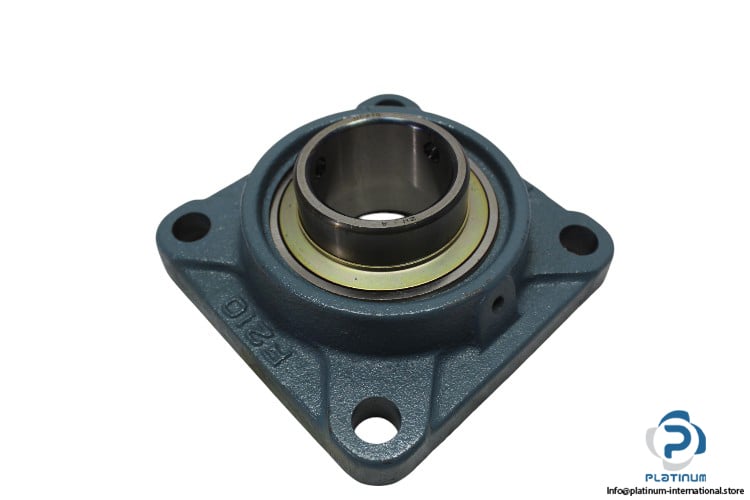

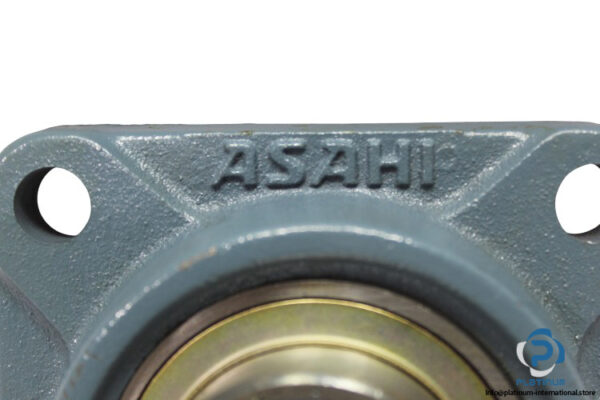

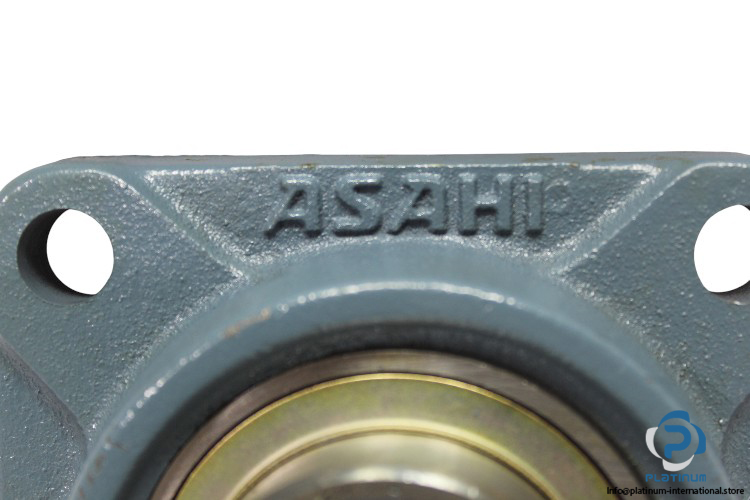

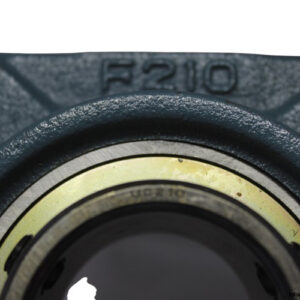

ASAHI UCF210 FOUR-BOLT SQUARE FLANGE UNIT
The Asahi UCF210 is a durable four-bolt flange bearing unit designed for secure mounting and long-lasting performance in demanding industrial environments. It features a sturdy cast housing and pre-lubricated bearing, ideal for heavy-load applications.
Manufacturer: Asahi
Type: Four-Bolt Square Flange Unit
Model: UCF210
Housing Model: F210
Bearing Model: UC210
| Bore Diameter | 50 mm |
| Overall Length | 143 mm |
| Housing Overall Width | 40 mm |
| Width of Inner Ring | 51.6 mm |
| Distance Between Attachment Bolts | 111 mm |
| Overall Unit Width | 54.6 mm |
| Bolt Size | M14 |
