Manufacturer: ASKUBAL
Type: Rod End, female thread
Model: KI 6-D

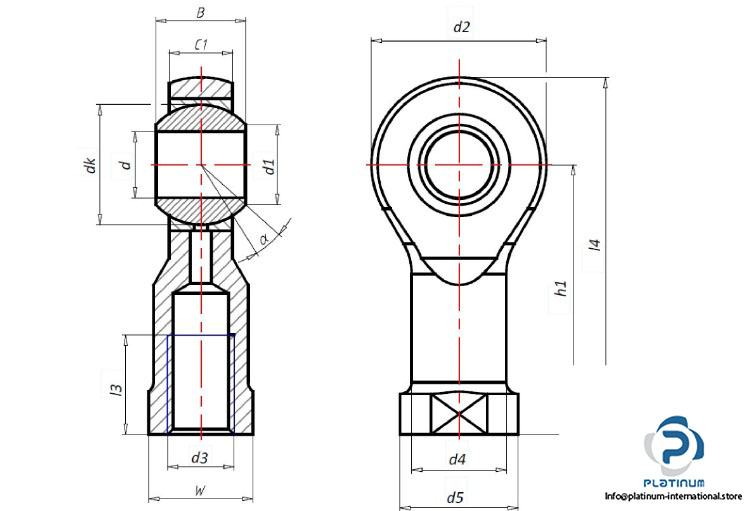

Dimensions
Bore Diameter d: 6 mm
Outer diameter D: 21 mm
Width B: 9 mm
Thread designation: M6x1
Sliding contact surface combination: Steel/Brass
Attachment feature, rod end shank: Right-hand female thread
Load rating static C0: 7000 N
Load rating dynamic C: 10000 N
Tilt angle alpha: 13°
