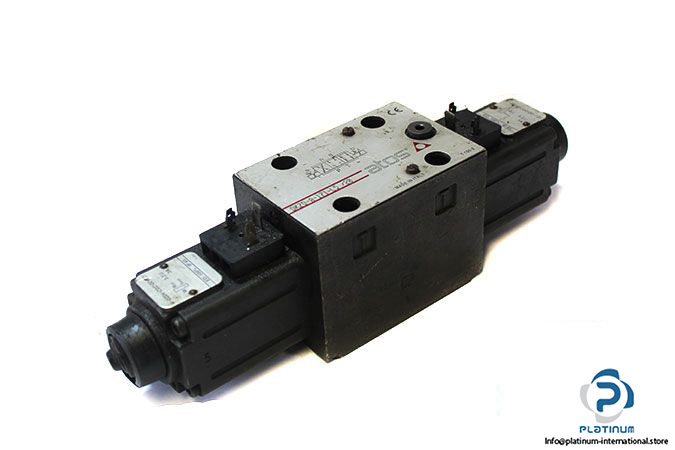

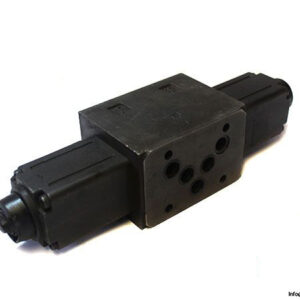

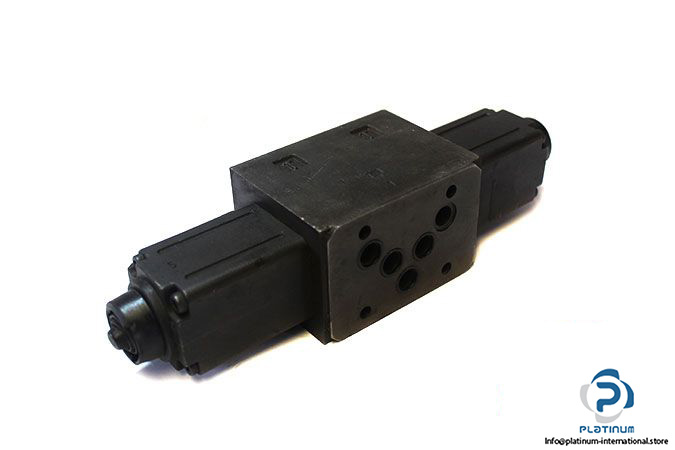

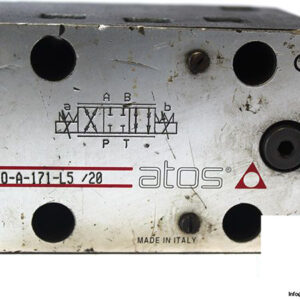

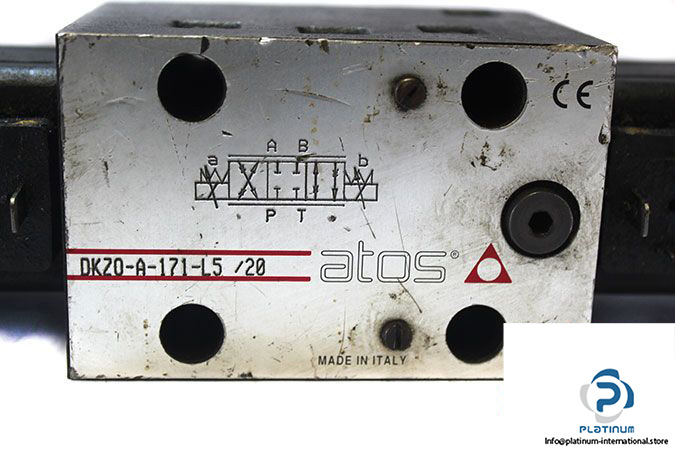

Atos DKZO-A-171-L5/20 Proportional Directional Valve

Manufacturer: ATOS

Type: Proportional Directional Valve

Model: DKZO-A-171-L5/20

Size: 06

Ambient Temperature Range: –20 …. +70 ^oC

Maximum Operating Pressure at Ports P,A,B:315 bar

Maximum Operating Pressure at Port T:160/250 bar

Maximum Flow Rate: 120 l/min

Hydraulic Fluid Temperature Range: –20 …. +60 ^oC

Viscosity Range: 15 … 100 mm²/s

Max. Power: 35 W

Connection: Sup-plate

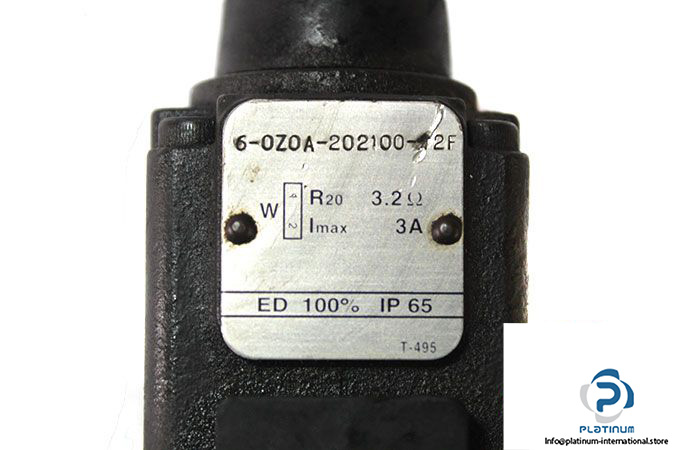

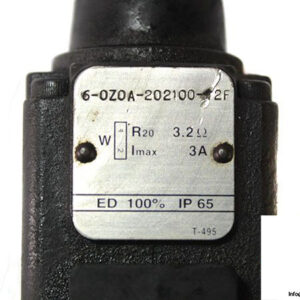

Attachment:  ATOS 6-OZOA-202100-12F SOLENOID COIL

Manufacturer: ATOS

Type: Solenoid Coil

Model:  6-OZOA-202100-12F

Coil Resistance R at 20^oC : 3.2 Ω

Current:  3 A

Weight: 4.72 kg
