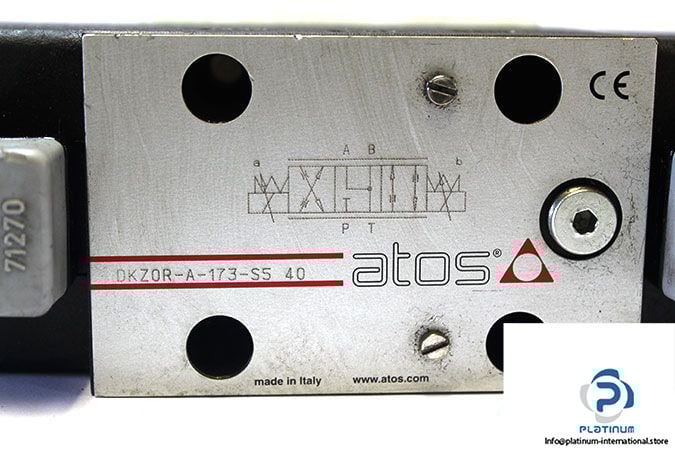

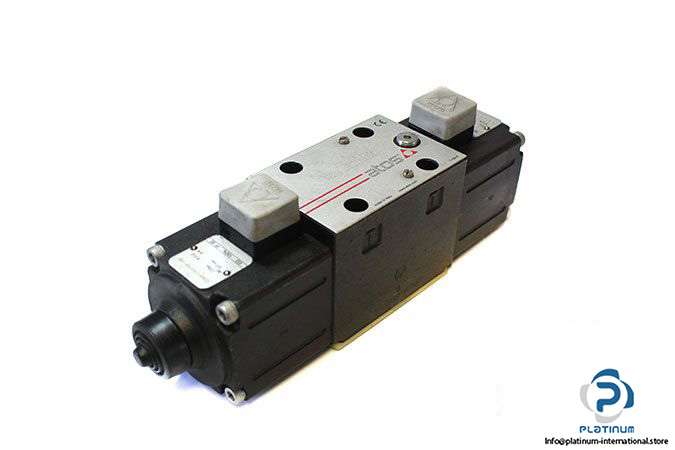

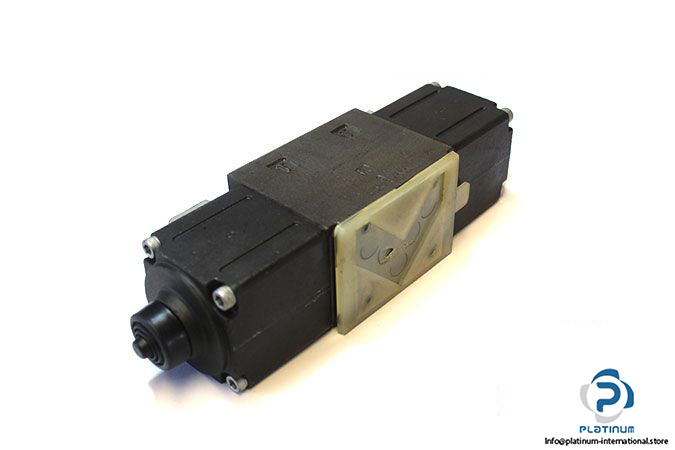

Atos DKZOR-A-173-S5 40 Proportional Directional Valve

Manufacturer: ATOS

Type: Proportional Directional Valve

Model: DKZOR-A-173-S5 40

Size: 10

Ambient Temperature Range: –20 …. +60 ^oC

Maximum Operating Pressure Port P, A, B:350 bar

Maximum Operating Pressure Port T: 210 bar

Maximum Flow Rate at 10 bar: 75 l/min

Hydraulic Fluid Temperature Range: –20 …. +60 ^oC

Viscosity Range: 15 … 100 mm²/s

Max. Power: 50 W

Connection: Sup-plate

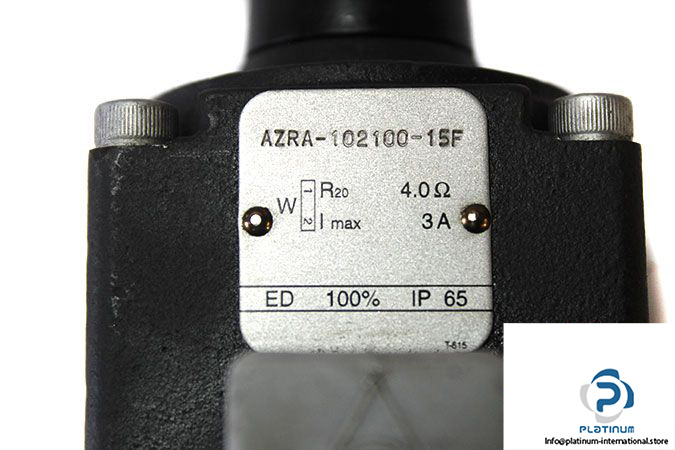

Attachment:  ATOS AZRA-102100-15F SOLENOID COIL

Manufacturer: ATOS

Type: Solenoid Coil

Model:  AZRA-102100-15F

Coil Resistance R at 20^oC : 4 Ω

Current:  3 A

Weight: 6.33 kg
