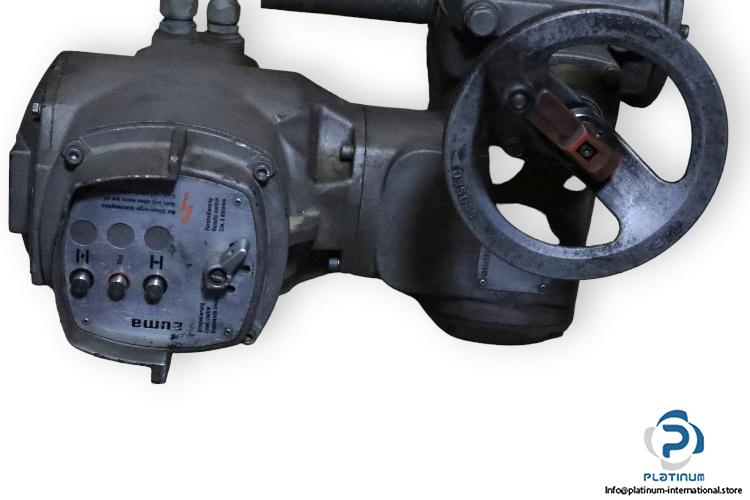

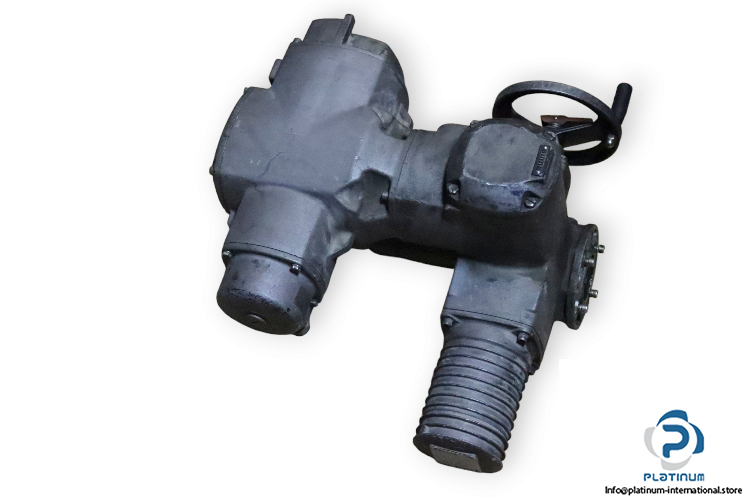

Auma SAR 07.5-F10 Lever Actuator

Manufacturer: Auma Riester

Type: Lever Actuator

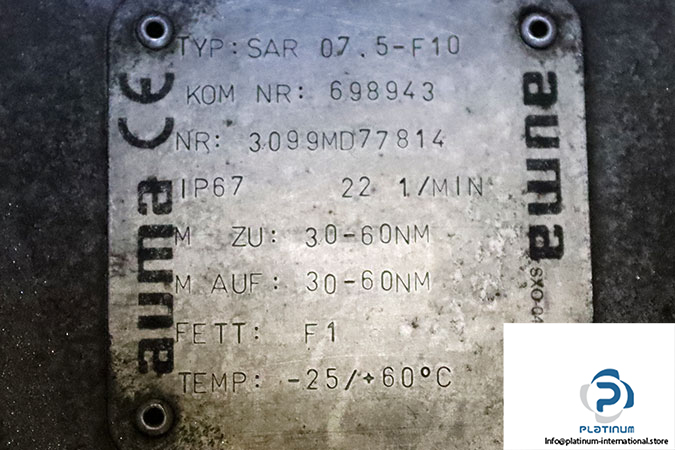

Model: Sar 07,5-F10

Serial Number: 3099Md77814

Commission Number: 698943

• Butterfly Valve with Lever Arrangement
• Lever Gearbox Based on Worm Gearbox GS



Size of Actuator: 07,5

Speed or Operating Time: 22 Sec For 90°

Torque Range in Direction Close: 30-60 Nm

Torque Range in Direction Open: 30-60 Nm

Lubricant Type: F1

Enclosure Protection [IP]: 67

Ambient Temperature Range [°C]: -25…60

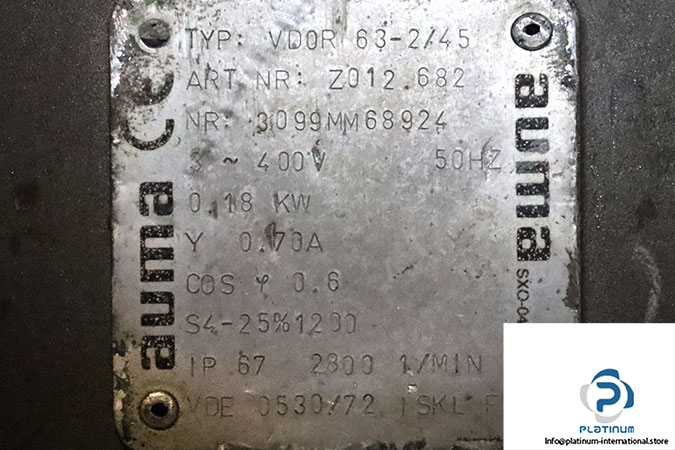

Motor Type: Vd0r 63-2/45

Article Number: Z012,682

Mains Voltage [V]: 400 Star

Mains Frequency [Hz]: 50

Rated Current [A]: 0,70

Nominal Power [kW]: 0,18

Power Factor: 0,6

Type of Duty: Short-Time Duty S4-25 Min

Enclosure Protection [IP]: 67

Speed [rpm]: 2800

Insulation Class: F

Thermistors Protected: Th
