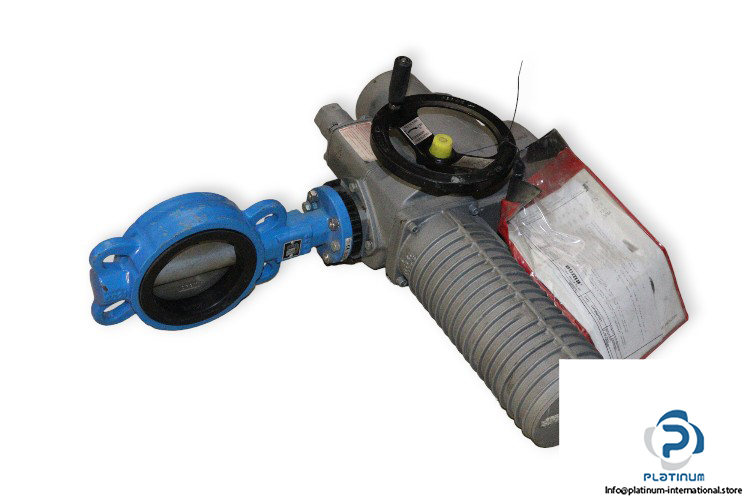

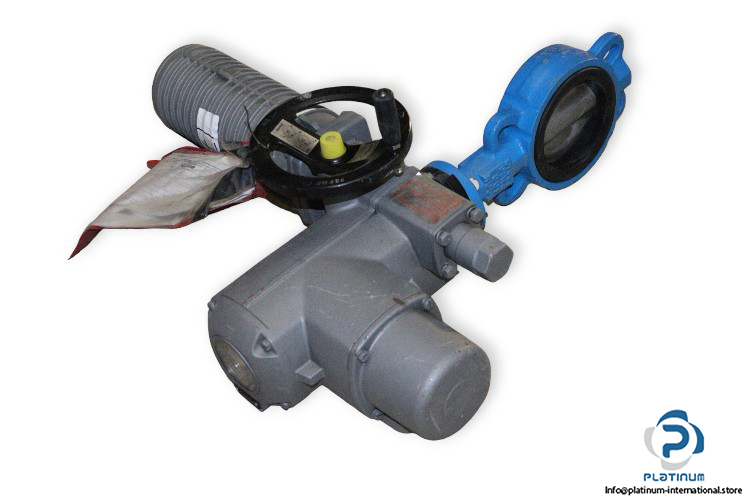

AUMA SG 05.1-F05-F07 MULTI-TURN ACTUATOR BUTTERFLY VALVE 16 bar

Manufacturer: Auma
Type: Multi-Turn Actuator

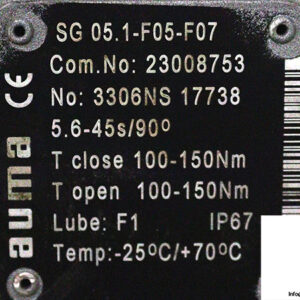

Model: SG05.1-F05-F07
Part No.: 23008753/3306NS 17738

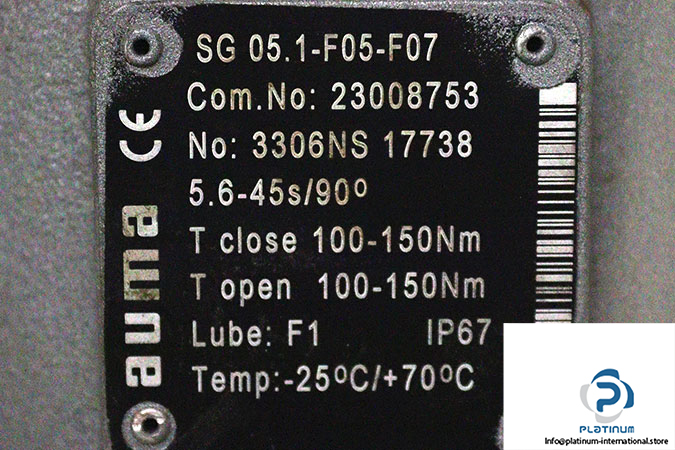

Type and Size Actuator: SG 05. 1
Flange Size: F05-F07
Speed or Operating Time: 5.6-45 sec for 90°
Torque Range in Direction Close [Nm]: 100-150
Torque Range in Direction Open [Nm]: 100-150
Enclosure Protection [IP]: 67
Lubrication: F1
Ambient Temperature Range [°C]: -25…+70

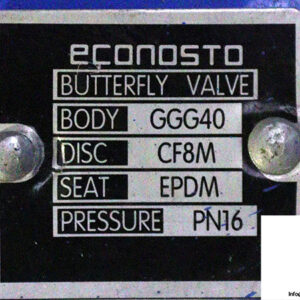

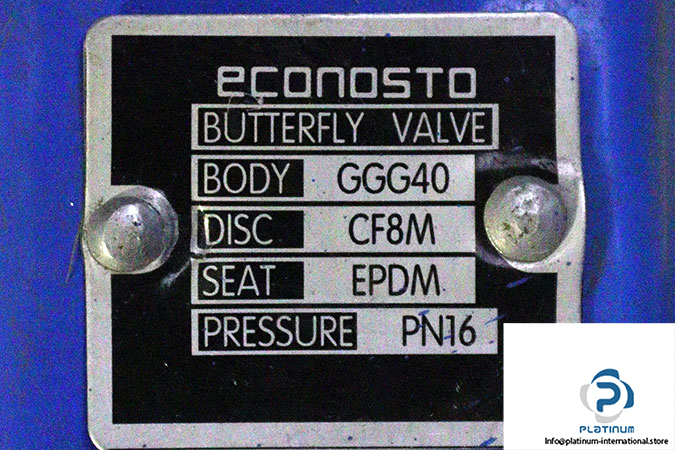

Attachment: Econosto GGG40 Butterfly Valve
Manufacturer: Econosto
Type: Butterfly Valve
Model: GGG40
DISC: CF8M
SEAT: EPDM
Operating Pressure [bar]: 16

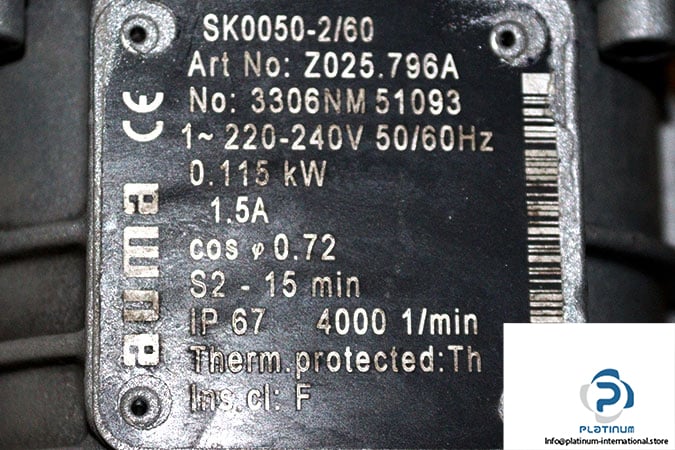

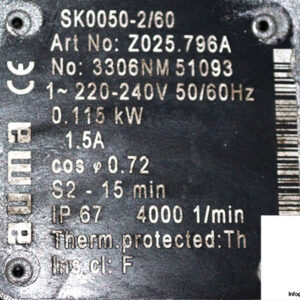

Type AC Motor: SK0050-2/60
Article Number: Z025.796A
Mains Voltage [V]: 220-240
Rated Current [A]: 1.5
Mains Frequency [Hz]: 50/60
Rated Power [kW]: 0.115
Power Factor: 0.72
Type of Duty: S2
Enclosure Protection [IP]: 67
Speed [rpm]: 4000
Thermal Protection: Th
Insulation Class: F
