Aventics 0822010825 Short-Stroke Cylinder

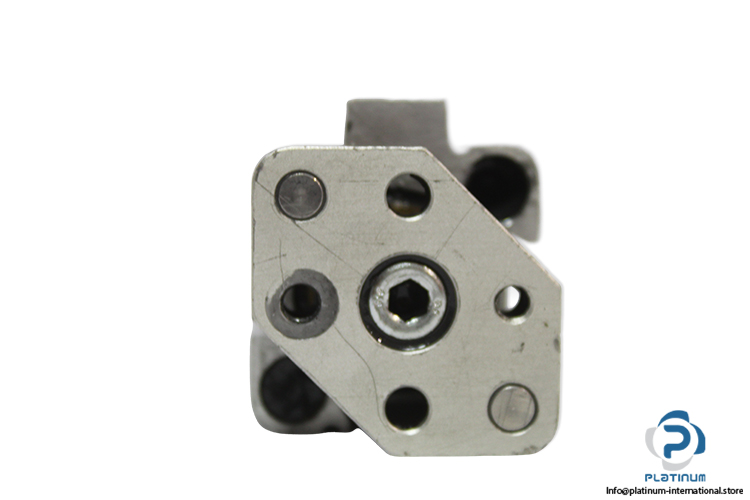

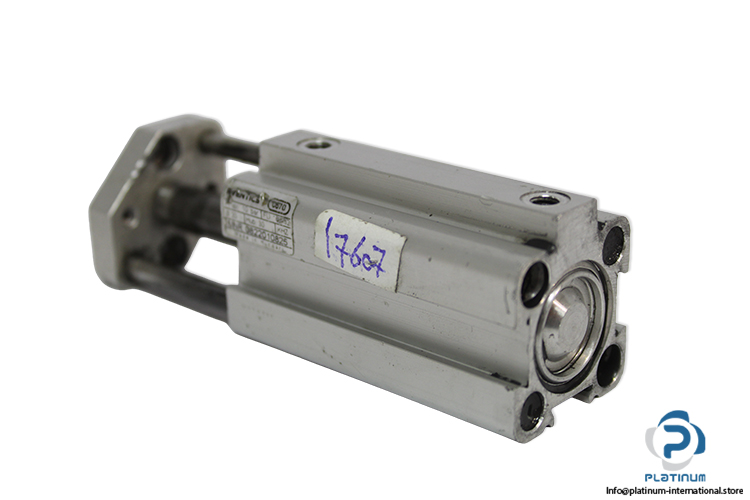

Aventics KHZ Short-Stroke Cylinder with External Guide Rod

A high-precision short-stroke pneumatic cylinder engineered by Aventics to provide accurate linear motion, stable operation, and excellent durability. With its external guide rod and non-rotating piston design, this unit ensures superior guidance, making it ideal for compact industrial automation systems and repeatable positioning tasks. Manufacturer: Aventics
Type: Short-stroke cylinder with external guide rod

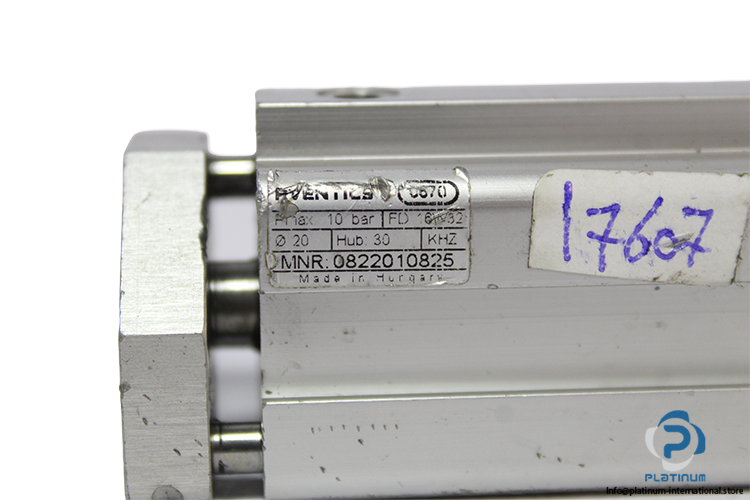

MNR: 0822010825
Series: KHZ
Medium: Compressed air
Stroke Length: 30 mm
Piston Diameter: 20 mm
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning
Piston rod: Non-rotating
Pneumatic Connection: 5 mm
Ambient temperature: -25 to 80°C

Recommendation:
This Aventics KHZ cylinder is an excellent choice for applications requiring compact size, repeatable precision, and stable motion control. Its guided, non-rotating piston rod makes it ideal for handling, assembly, small parts manipulation, and automated positioning. Pairing this cylinder with high-quality air preparation units, valves, and fittings from our Fluid Systems and Electric Motion categories can significantly improve system performance and extend equipment lifetime.
