Aventics 0822419120 Bellow Actuator
New
In stock1 unitReady to ship
Bellow Actuator / Flexible Rolling Bellow
The Aventics SZ 35-11 bellow actuator is a single-acting device with a 100 mm stroke, designed for efficient operation with compressed air. It offers robust force capacities and durable construction with chloroprene rubber and fiber-glass reinforced polyamide for long-lasting performance in diverse conditions.10035-11ActuatorAirAventicsBellowChloropreneCompressedfiber-glassFlexiblemmPneumaticPolyamidereinforcedrollingRubberStrokeSZ
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

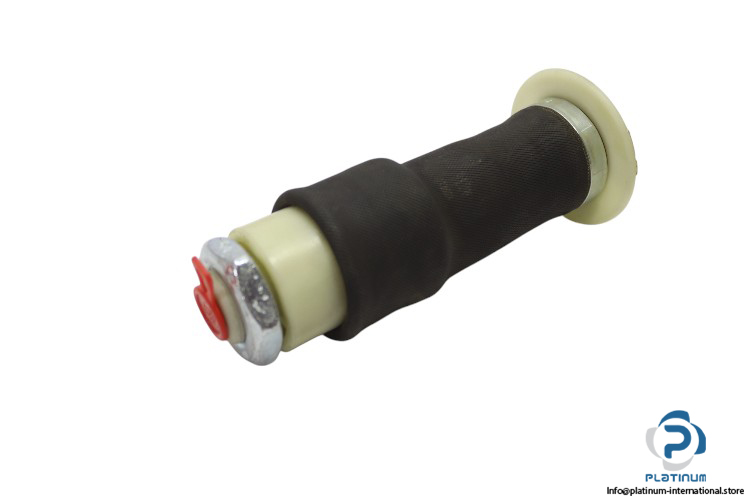

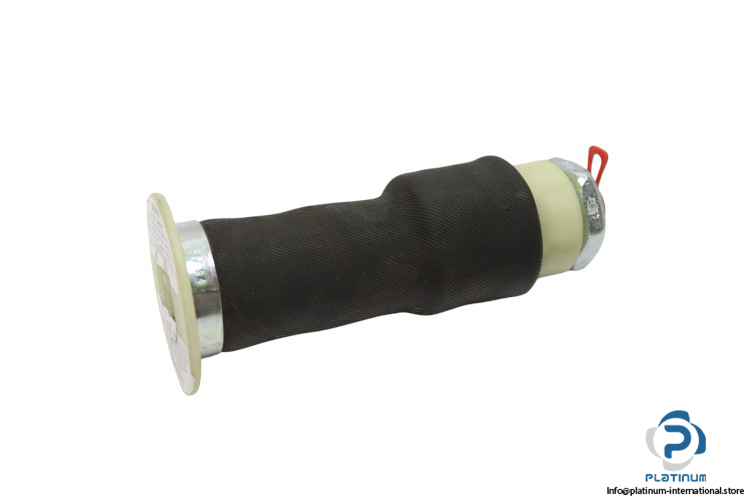

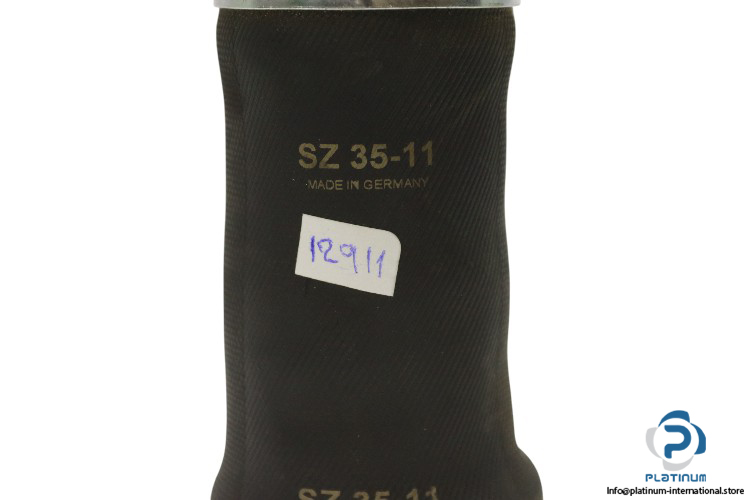

Aventics SZ 35-11 “ Bellow Actuator / Flexible Rolling Bellow
The Aventics SZ 35-11 bellow actuator is a high-performance, single-acting actuator designed for precise control in pneumatic systems. This flexible rolling bellow is engineered to operate efficiently with compressed air and offers versatility in installation with its compact design and wide range of operational pressures.
Manufacturer: Aventics
Type: Bellow Actuator / Flexible Rolling Bellow
Model: SZ 35-11
Part No: 0822419120
| Functional Principle | Single-acting, retracted without pressure |
| Compressed Air Connection | G 1/4 |
| Cover Diameter | 76.5 mm |
| Permissible Angle of Tilt Max | 15 degrees |
| Max. Effective Stroke | 100 mm |
| Min. Radial Installation Space | 100 mm |
| Force Min | 1700 N |
| Force Max | 1710 N |
| Working Pressure Min | 0.9 bar |
| Working Pressure Max | 8 bar |
| Min. Ambient Temperature | -30 °C |
| Max. Ambient Temperature | 90 °C |
| Medium | Compressed air |
| Reduced Service Life at a Temperature Greater Than | 70 °C |
| Pressure for Determining Forces | 6 bar |
| Material Bellow | Chloroprene rubber |
| Material Front Cover | Polyamide fiber-glass reinforced |
| Material Clamping Ring | Steel |
