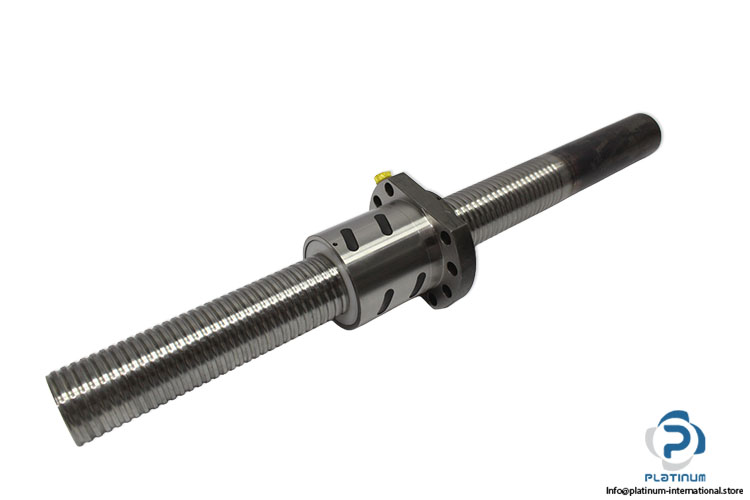

B.B. 158612 (40-5) Ball Screw
Used
In stock1 unitReady to ship
Flange Nut Ball Screw B.B. flange nut ball screw with 40 mm nominal diameter, 5 mm lead, and right-hand thread, designed for accurate linear motion and industrial power transmission applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Size | 40 x 5 R |
| Nominal Diameter | 40 mm |
| Lead P | 5 |
| Number of starts | 1 |
| Direction of Lead | Right-Hand Thread |
| Flange diameter | 93 mm |
| Nut outer diameter | 63 mm |
| Nut length | 85 mm |
| Flange thickness | 14 mm |
| Cutting flange width | 70 mm |
| Threaded length | 360 mm |
| Total Screw Length | 500 mm |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1099731 |
| Weight | 6 |
