Balluff BES0083 BES M18MI-PSC50B-BV03 Inductive Proximity Sensor
Used
In stock1 unitReady to ship
Inductive Proximity Sensor
BALLUFF M18 inductive proximity sensor with 5 mm sensing range, PNP NO output, 10“30 V DC operation, IP68 protection, and 3 m PVC cable connection for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

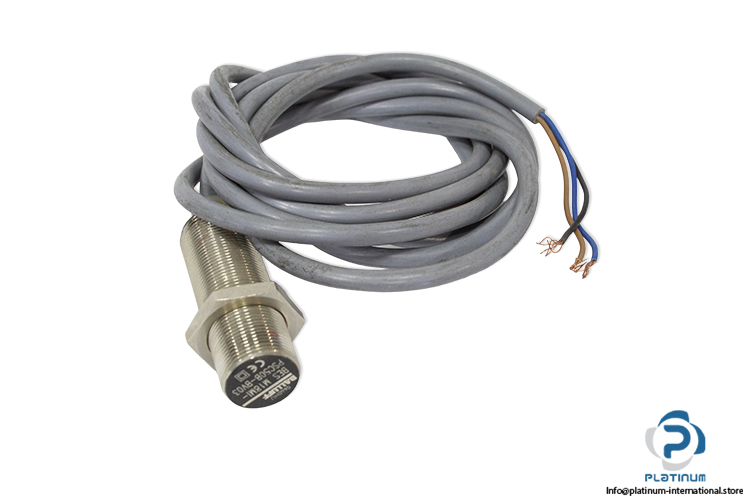

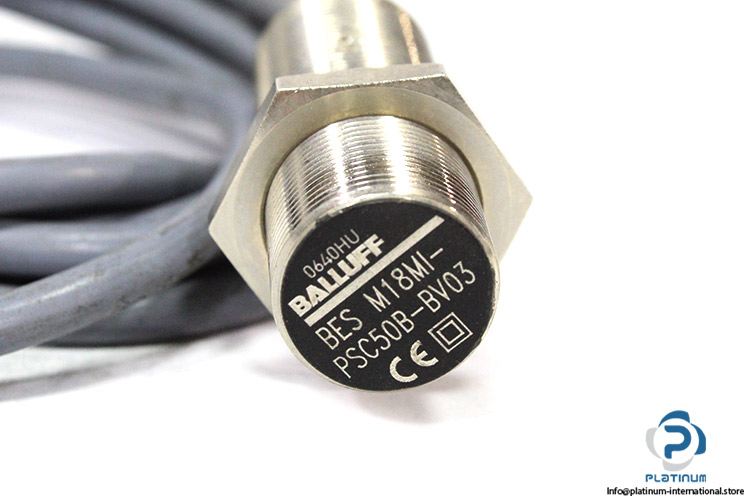

BALLUFF BES0083 BES M18MI-PSC50B-BV03 Inductive Proximity Sensor
The BALLUFF BES0083 inductive proximity sensor from the BES 516 series is engineered for reliable and precise non-contact detection in industrial automation systems. Designed with a robust nickel-free coated brass housing and high protection class, it ensures stable performance even in demanding environments.
Manufacturer: BALLUFF
Type: Inductive Proximity Sensor
Model: BES0083 BES M18MI-PSC50B-BV03
Series: BES 516
| Sensing Range | 5 mm |
| Housing Style | M18 x 1 |
| Rated Operating Voltage | 10 / 30 V DC |
| Rated Current | 200 mA |
| Output Contact | PNP Normally Open (NO) |
| Ready Delay (Max.) | 21 ms |
| Switching Frequency | 2000 Hz |
| Connection | Cable, 3 m, PVC |
| Dimensions (Diameter x Length) | 18 x 55 mm |
| Housing Material | Brass, Nickel-Free Coated |
| Protection Class | IP68 |
| Ambient Temperature Range | -40 ... 85 °C |
