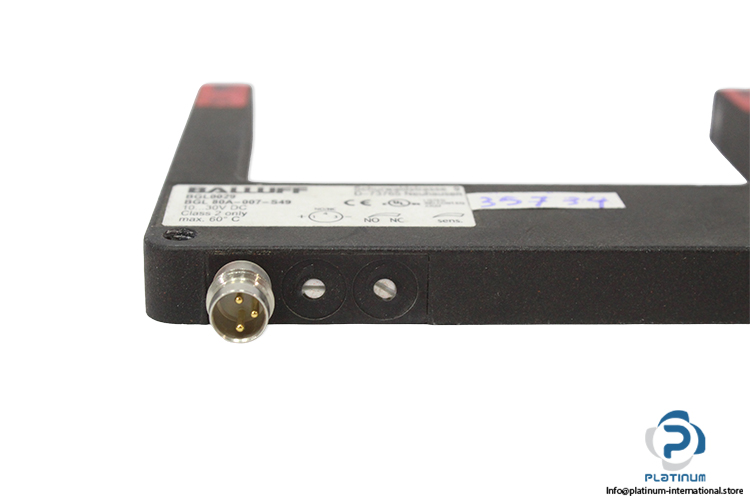

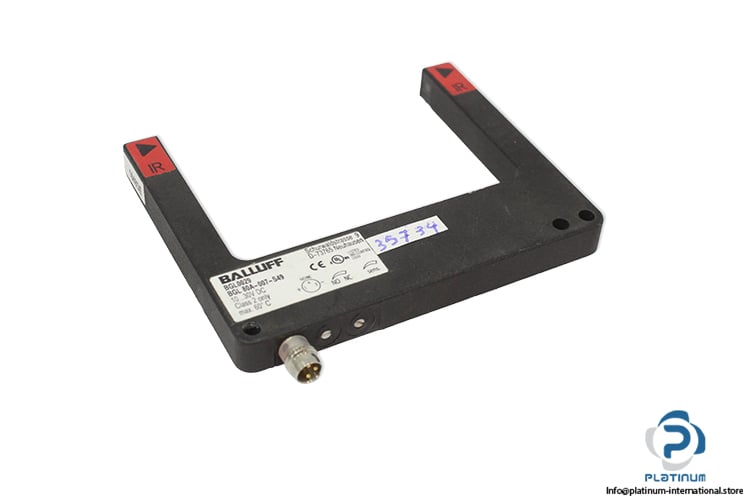

Balluff BGL0029 BGL 80A-007-S49 Fork Light Barrier
New
In stock1 unitReady to ship
Fork Light Barrier
Infrared through-beam fork light barrier with 80 mm opening, PNP output, IP68 protection, and 10“30 V DC operation for industrial automation applications.AutomationBalluffBarrierbeamBGL0029ForkIndustrialinfraredIP68LightOpticalPhotoelectricPNPSensorThrough
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Order Code | 219349 |
| Series | A |
| Fork Opening | 80 mm |
| Principle Of Optical Operation | Through-Beam Sensor |
| Light Type | Infrared |
| Spot Size | Dia. 2.5 mm Light Exit |
| Rated Operating Voltage | 10 / 30 V DC |
| Contact | PNP Normally Open (NO) / Normally Closed (NC) |
| Connection | Connector, M8x1-Male, 3-Pin |
| Material | Zinc, Die Casting, Painted |
| Protection Class | IP68 |
| Ambient Temperature | -25...70 °C |
| Dimensions | 10 x 100 x 88 mm |
| Condition | New |
| Stock Key | JO-004 |
