Balluff BOS 18M-PUV-PR30-S4 Retroreflective Sensor

Balluff BOS 18M-PUV-PR30-S4 Retroreflective Sensor

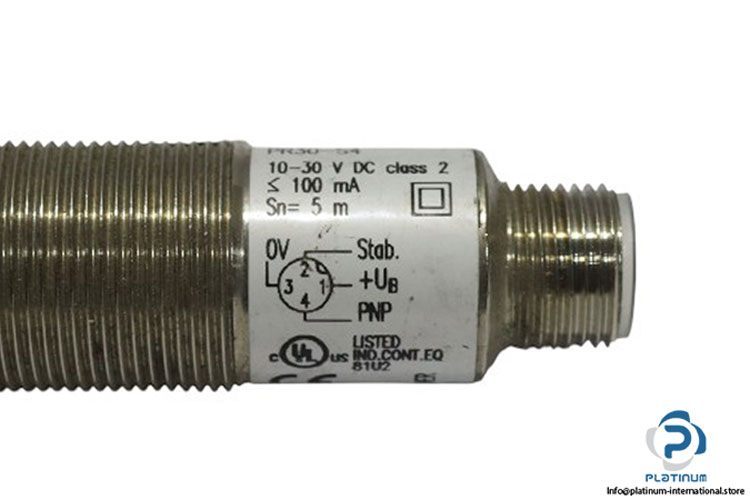

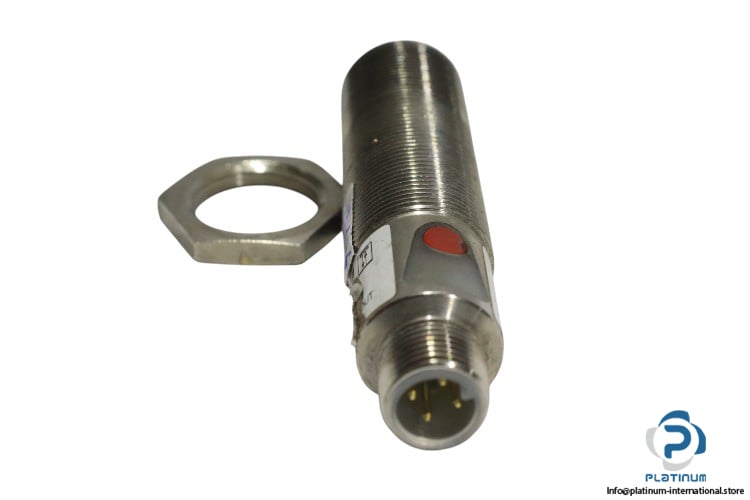

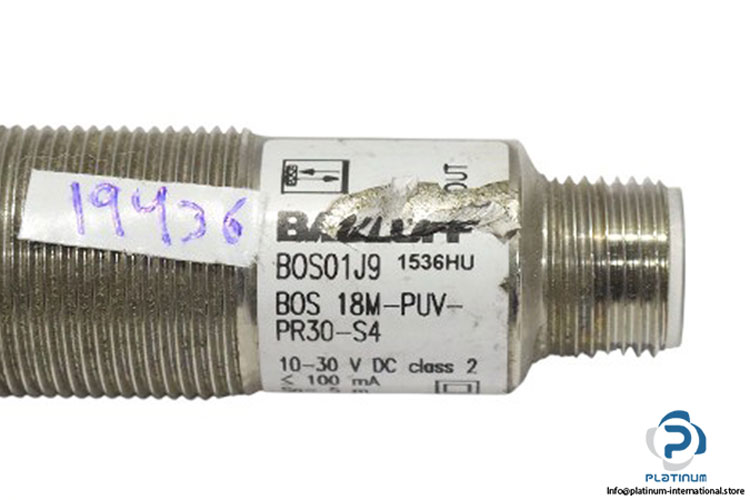

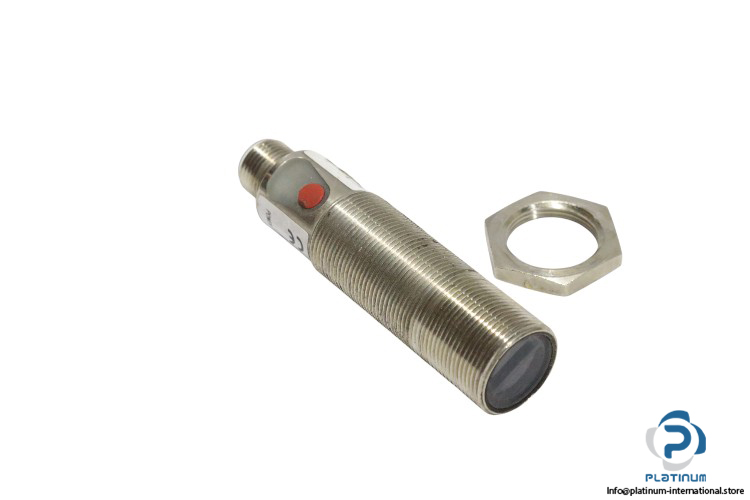

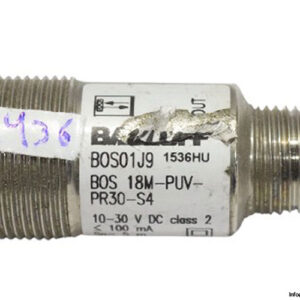

The Balluff BOS 18M-PUV-PR30-S4 is a high-performance retroreflective sensor designed for reliable object detection over distances up to 5 meters. Operating with red LED light and a divergent beam, this photoelectric sensor offers both PNP normally open and normally closed (NO/NC) switching options. With a compact Ø18 x 75 mm form factor and a durable nickel-plated brass housing, it is ideal for industrial automation and material handling applications. The sensor connects via a standard M12x1 4-pin male connector and operates at a fast switching frequency of 1 kHz, ensuring quick response times in dynamic environments.

• Manufacturer: BALLUFF
• Type: Retroreflective Sensor
• Model: BOS 18M-PUV-PR30-S4

Technical Specifications:

• Sensing Distance / Range: 5 m
• Operating Voltage (Ub): 10…30 VDC
• Series: 18M
• Dimensions: Ø 18 x 75 mm
• Interface: PNP, NO/NC
• Connection: M12x1-Male, 4-pin
• Housing Material: Brass, nickel-plated
• Material Sensing Surface: Glass
• Operation Principle: Photoelectric Sensor
• Beam Characteristic: Divergent
• Light Type: LED, red light
• Switching Frequency: 1 kHz

Applications:

• Material handling and logistics
• Packaging machinery
• Automated assembly lines
• Positioning and presence detection
