Bauer BS02-37V/P04LA32-G/EMV-SP Helical Gear Motor
Used
In stock2 unitsReady to ship
helical gear motor
The BAUER BS02-37V/P04LA32-G/EMV-SP Helical Gear Motor offers efficient power transmission with an 18 ratio, 3200 r/min input speed, and 4.75 Nm torque for industrial use.183200EfficientEncoderFlangeGearHighIndustrialInputmotorPrecisionr/minratioSocketSpeedThalheimTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

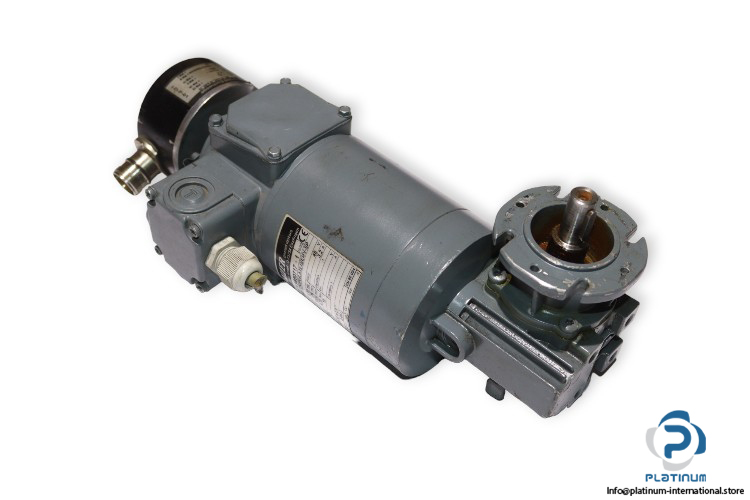

BAUER BS02-37V/P04LA32-G/EMV-SP HELICAL GEAR MOTOR
The BAUER BS02-37V/P04LA32-G/EMV-SP Helical Gear Motor is designed for high-efficiency and reliable operation in industrial applications. With a ratio of 18, it offers optimized performance with an output speed of 178 r/min and a rated torque of 4.75 Nm. The motor comes with a THALHEIM incremental encoder, ensuring precise control and operation.

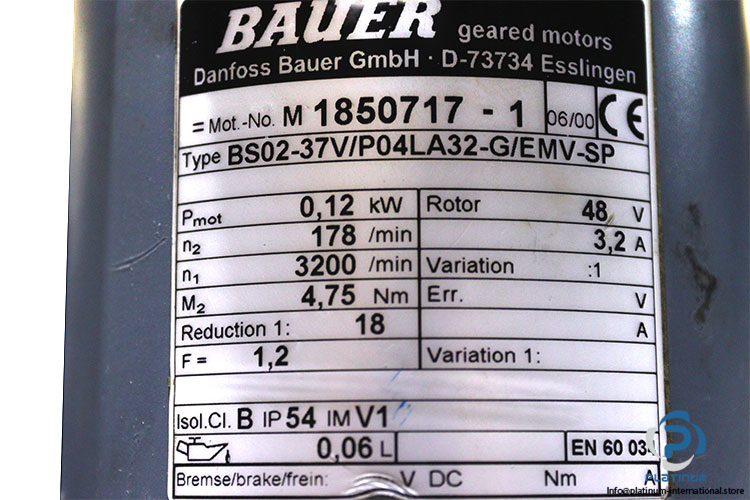

Manufacturer: BAUER
Type: Helical Gear Motor
Model: BS02-37V/P04LA32-G/EMV-SP
ID No.: M 1850717-1
Technical Specifications
- Ratio: 18
- Input Speed [r/min]: 3200
- Output Speed [r/min]: 178
- Motor Power [kW]: 0.12
- Motor Voltage [V]: 48
- Nominal Current [A]: 3.2
- Rated Torque [Nm]: 4.75
- Thermal Class/Enclosure [IP]: B/54
- Lubrication [L]: 0.06

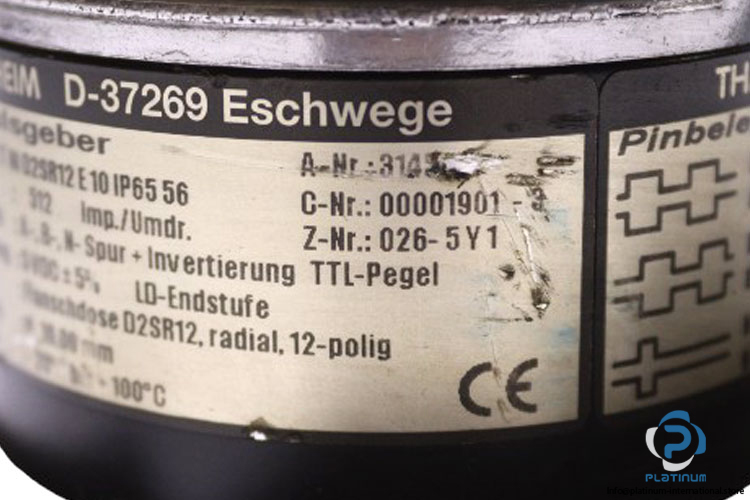

- Attached with: THALHEIM ITD 40 A 4 Y 1 512 T NI D2SR12 E 10 IP65 56 Incremental Encoder
- Shaft Diameter: 10 mm
- Voltage Supply: 5 VDC
- IMPULSE: 512 IMP/UMDR

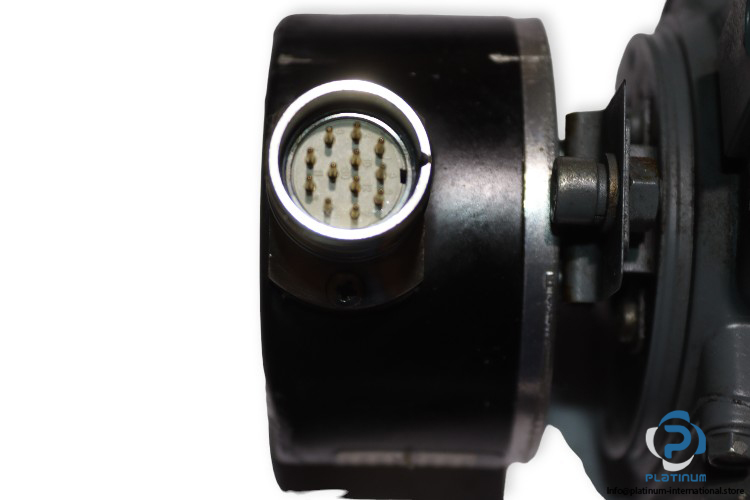

- Type of Connection: Flange socket
- Ambient Temperature: -20 / 100 °C
