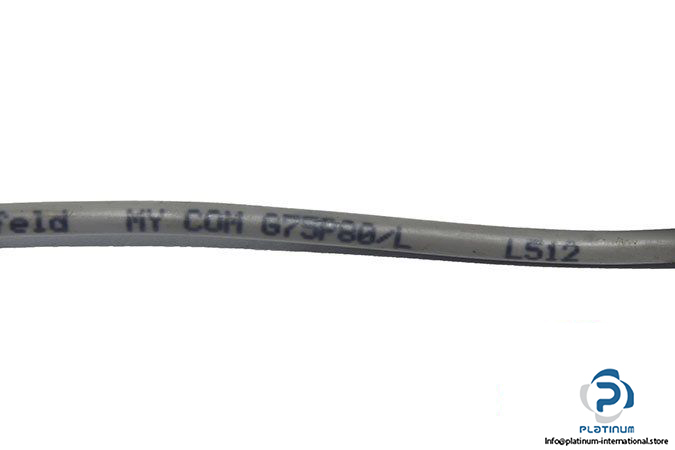

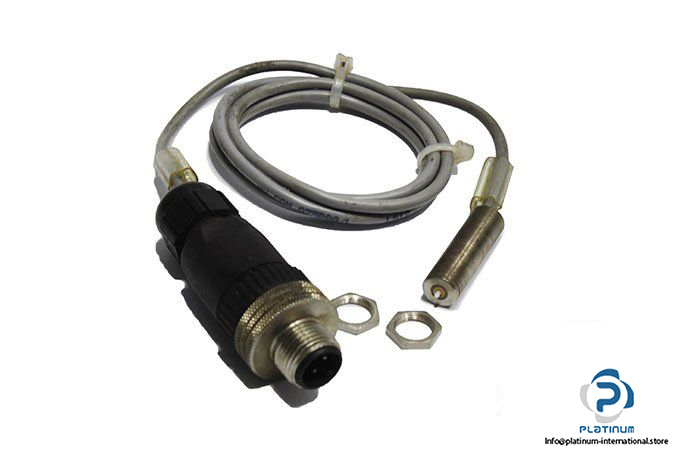

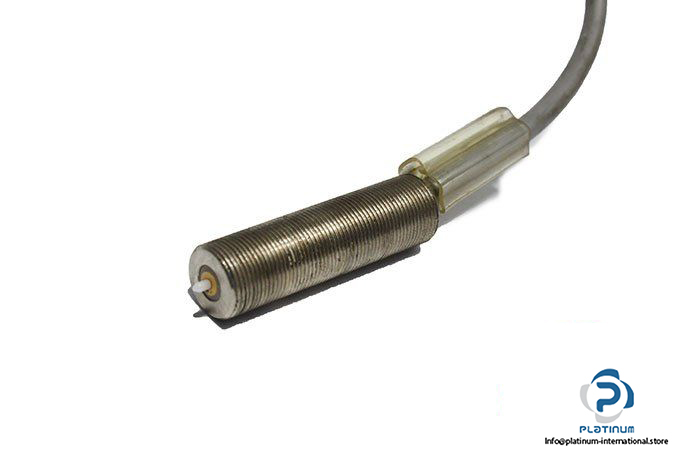

Baumer MY-COM G75P80/L MY-COM Precision Switch
Manufacturer: Baumer
Type: My-Com Precision Switch
Model: MY-COM G75P80/L
Voltage Supply: 5 … 36 VDC
Load Current: max. 24 VDC 50 mA
Load Resistance: min. 480 Ohm
Output Circuit: PNP make function (NO)
Activating: pin zirconium oxide ZrO2
Housing Material: brass nickel plated
Dimension: 8 mm
Type: cylindrical threaded
Housing Length: 28 mm
Connection Types: cable, 80 cm
Operating Temperature: -20 … +75 °C
Protection Class: IP 50
Measurement Type: contact with medium
Output Indicator: LED red
Weight: 0.04 kg
