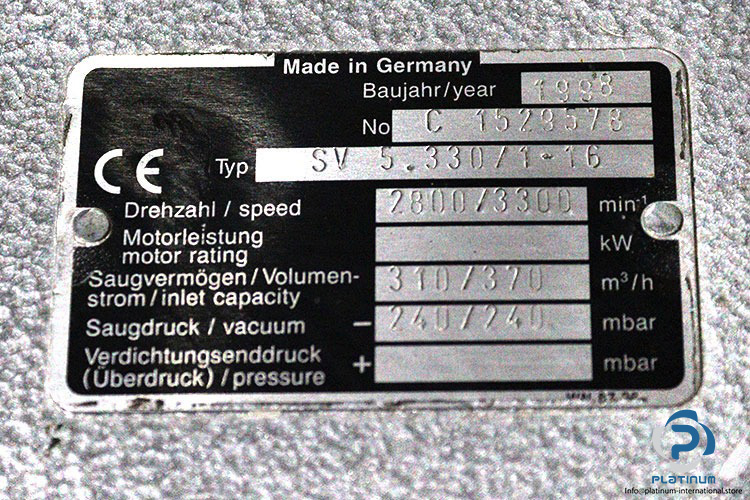

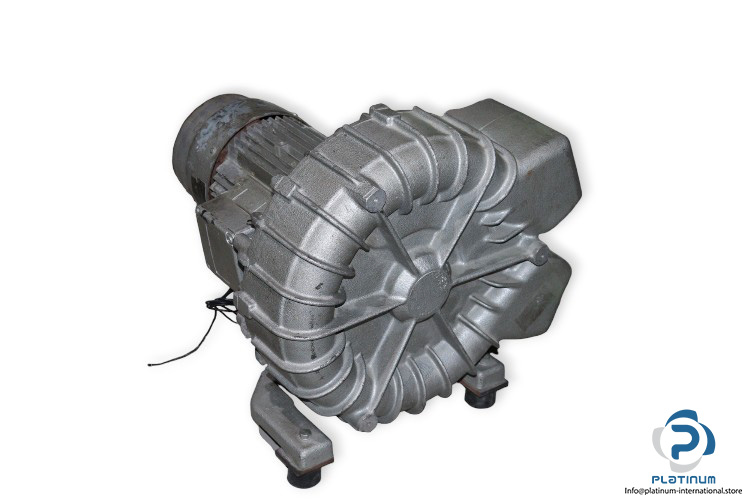

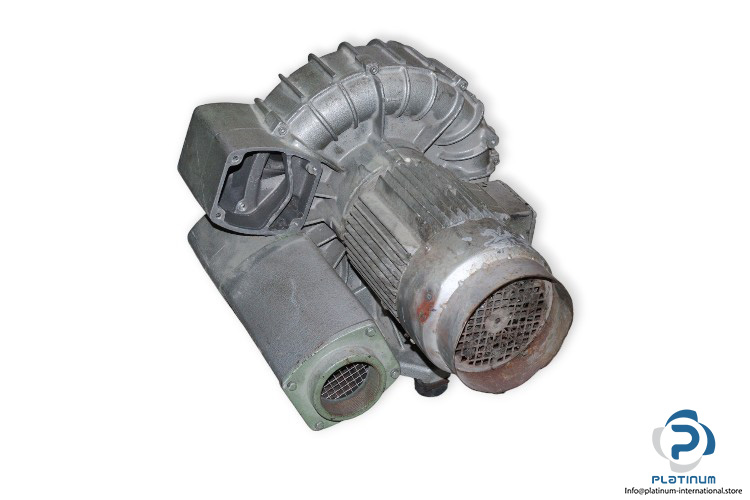

BECKER SV 5.330/1-16 SINGLE SIDE CHANNEL BLOWER 3.6 Kw

Manufacturer: Becker
Type: Single Side Channel Blower
Model: SV5.330/1-16

Channel Design: Single
Rated Pressure [mbar]: -240/+240
Max. Flow Rate [m³/min]: 310/370
Rated Speed [rpm]: 2800/3300

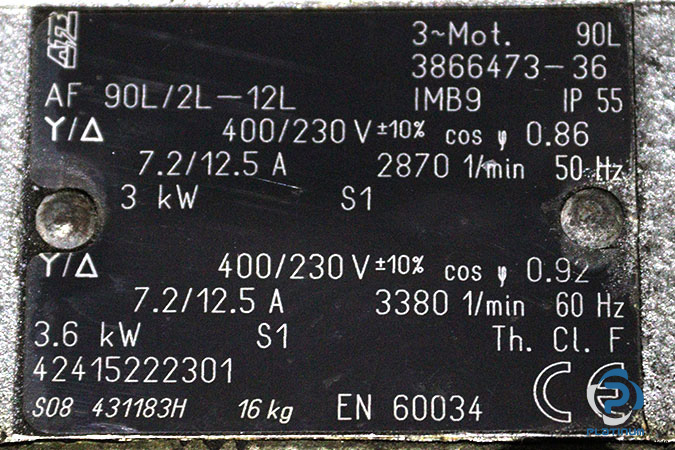

Attachment: ATB AF 90L/2L-12L 3-Phase Electric Motor
Manufacturer: ATB
Type: 3-Phase Electric Motor
Model: AF 90L/2L-12L
Rated Power [kW]: 3/3.6
Supply Voltage [V]: 230/400
Rated Current [A]: 12.5/7.2
Frequency [Hz]: 50/60
Rated Speed [rpm]: 2870/3380
Protection Class [IP]: 55
Mounting Position [IM]: B9
Power Factor [cos]: 0.86/0.92
Duty: S1
Insulation Class: F
