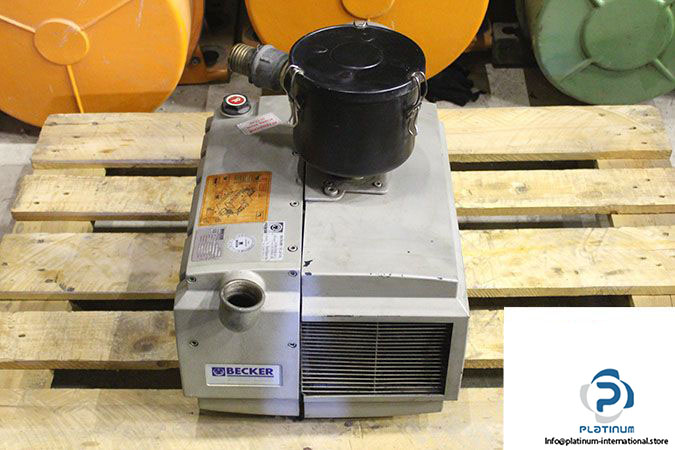

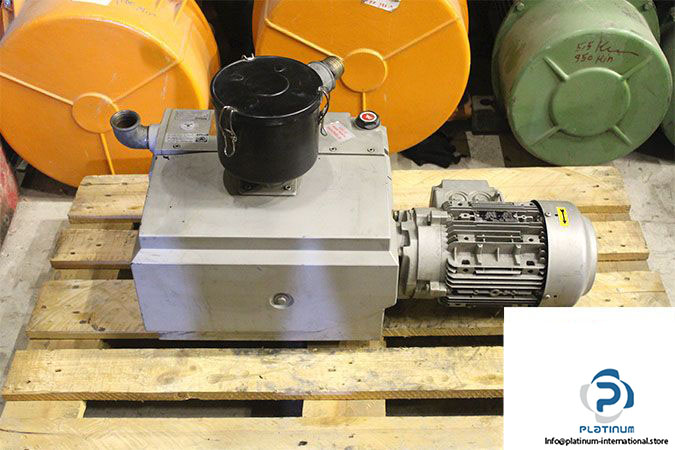

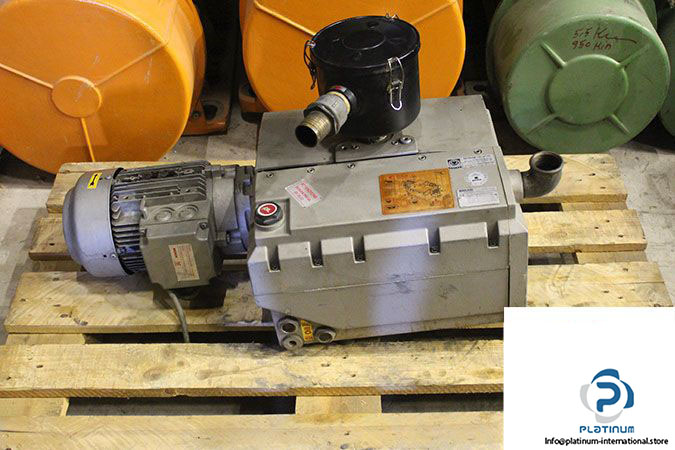

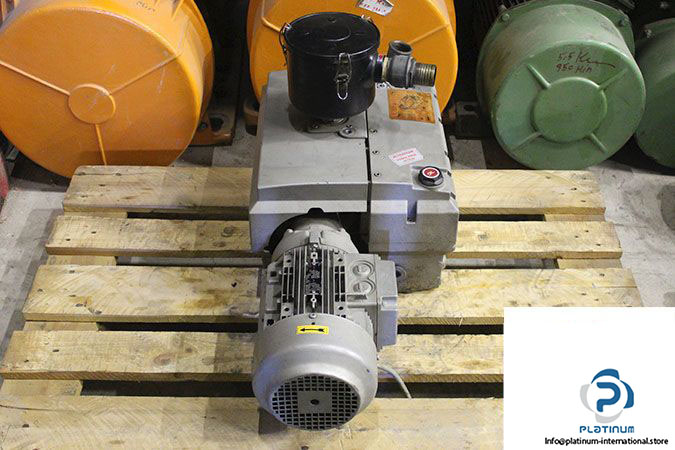

Becker U 4.100 SA/K Rotary Vane Vacuum Pump

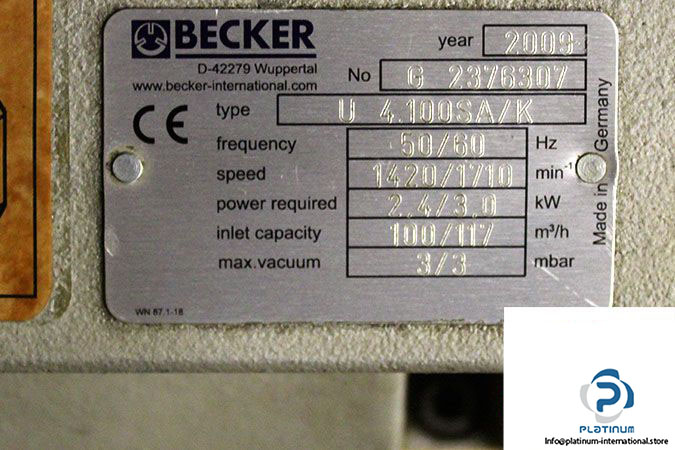

Manufacturer: Becker

Type: Rotary Vane Vacuum Pumps

Model: U4.100SA/K

Part Nr.: G 2376307

Nominal Speed [rpm]: 1420/1710

Inlet Capacity [m³/h]: 100/117

Power Required [kW]: 2.4/3.0

Frequency [Hz]: 50/60

Max. Vacuum [mbar]: 3/3

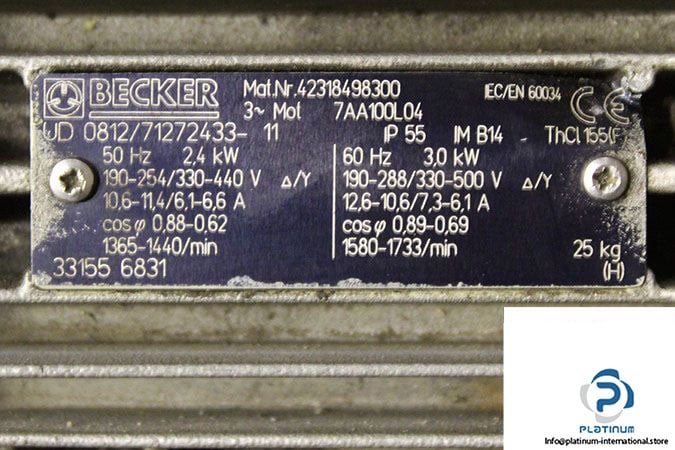

Attachment: BECKER UD 0812/71272433-11 THREE PHASE E-MOTOR

Manufacturer: Becker

Type: Three Phase E-Motor

Model: UD0812/71272433-11

Rated Voltage [V]: 190-254/330-440 Delta/Star

Rated Current [A]: 10.6-11.4/6.1-6.6

Rated Speed [rpm]: 1365/1440

Power Factor [%]: 0.88-0.62

Rated Power [kW]: 2.4

Frequency [Hz]: 50

Rated Voltage [V]: 190-288/330-500 Delta/Star

Rated Current [A]: 12.6-10.6/7.3-6.1

Rated Speed [rpm]: 1580/1733

Power Factor [%]: 0.89-0.69

Rated Power [kW]: 3.0

Frequency [Hz]: 60

Protection Class [IP]: 55

Mounting Position [IM]: B14

Insulation Class: F
