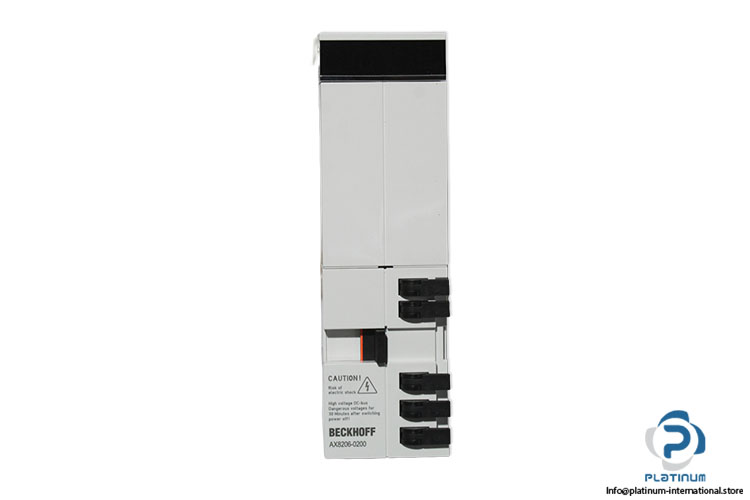

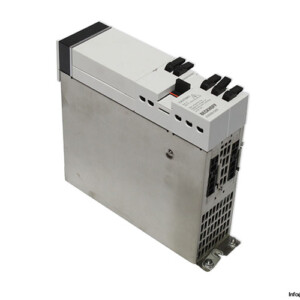

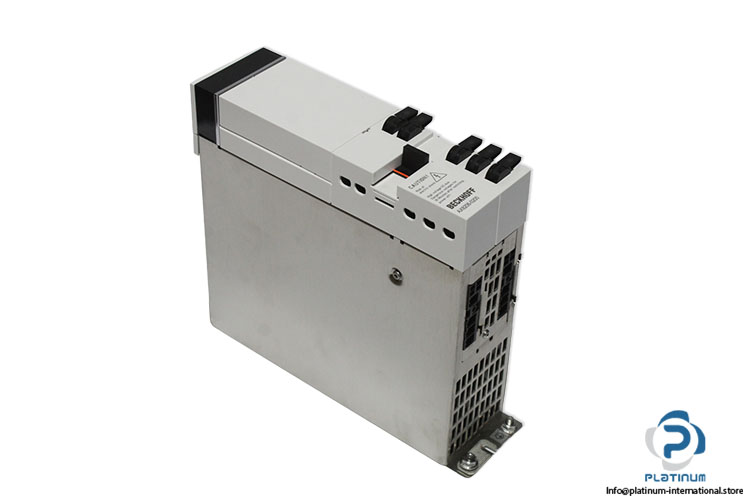

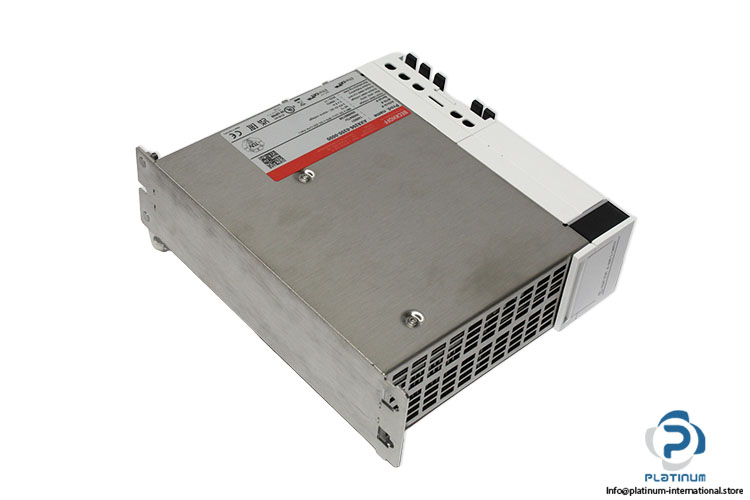

Beckhoff AX8206-0200-0000 Dual-Axis Drive Module

Name: BECKHOFF AX8206-0200-0000 DUAL-AXIS DRIVE MODULE
SKU: 1097274
Availability: LimitedAvailability

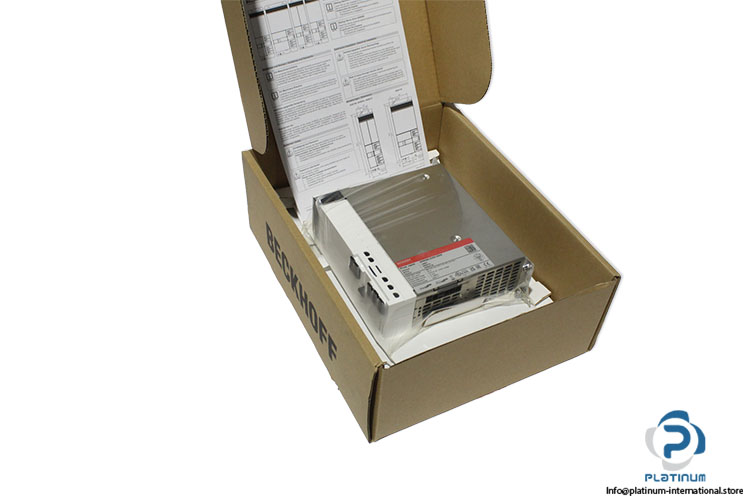

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)-1

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)-2

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)-3

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)-4

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)-5

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)-6

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)-7

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)-8

beckhoff-AX8206-0200-0000-dual-axis-drive-module-(new)-(carton)-9

New

In stock4 unitsReady to ship

Dual-Axis Servo Drive Module Beckhoff AX8206-0200-0000 servo drive module from AX8000 series with TwinSAFE Logic, 680 V DC supply, 20 A peak output, and advanced safety functions for industrial automation systems.

Manufacturer

BECKHOFF

SKU

1097274

Category

Servo Motor Drives

Condition

New

Automation AX8000 AX8206-0200-0000 Axis Beckhoff CiA402 Control D Drive Dual EtherCAT Industrial Logic Module Motion Safe Series Servo TwinSAFE

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

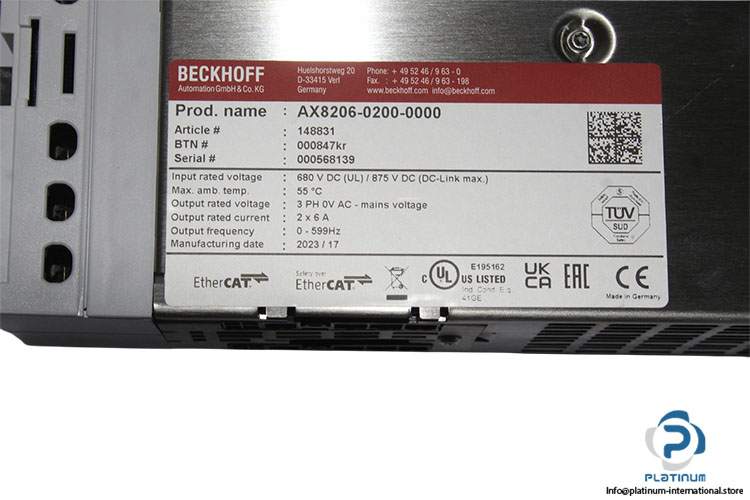

Art No.	148831

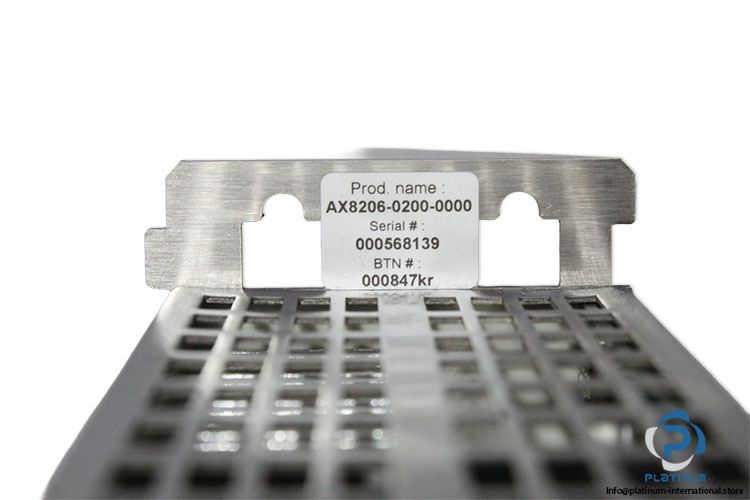

Serial No.	000568139
BTN No.	000847kr
Series	AX8000

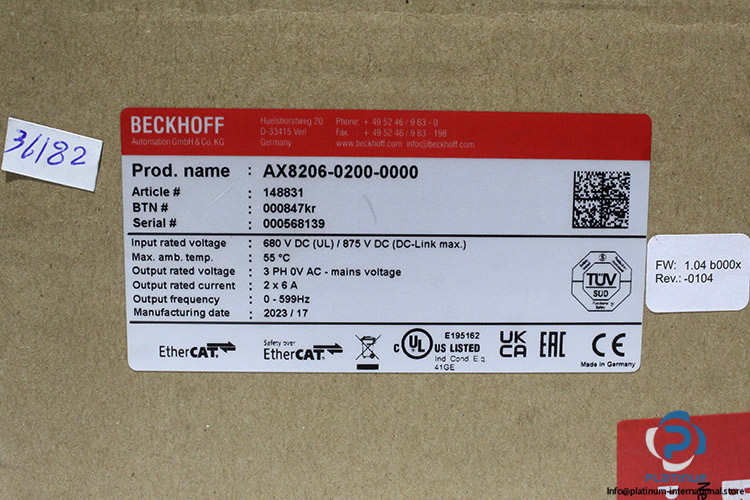

FW	1.04 b000x
Rev.	-0104
Function	axis module with TwinSAFE Logic
Rated supply voltage	680 V DC (UL)
link voltage	max. 875 V DC
Peak output current	20 A
Output rated voltage	0 V AC / 680 V DC (3-phase)
Output rated current	6 A/2-Phase
Output frequency	0 to 599 Hz
Feedback	OCT, EnDat(R) 3
System bus	EtherCAT
Drive profile	CiA402 according to IEC 61800-7-201 (CoE)
Safe stop functions	Safe Torque Off (STO), Safe Operating Stop (SOS), Safe Stop 1 (SS1), Safe Stop 2 (SS2)
Safe acceleration functions	Safe Maximum Acceleration (SMA), Safe Acceleration Range (SAR)
Safe braking functions	Safe Brake Control (SBC), Safe Brake Test (SBT)
Safe direction functions	Safe Direction positive (SDIp), Safe Direction negative (SDIn)
Safe speed functions	Safely Limited Speed (SLS), Safe Speed Range (SSR), Safe Speed Monitor (SSM), Safe Maximum Speed (SMS)
Safe position functions	Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI)
Protection degree	IP20
Operation temperature	0 to 40°C, up to 55°C
Approvals/markings	CE, cULus, EAC, UKCA, TUV
Width	60 mm
Condition	New
Stock key	JO-004
SKU	1097274
Weight	2,61
