Beckhoff CX8031 Embedded PC With Profibus

In stock1 unitReady to ship

299,99$

EMBEDDED PC

Beckhoff CX8031 embedded PC with Arm9„¢ 400 MHz processor, PROFIBUS slave interface, 64 MB DDR2 RAM, 512 MB microSD, 24 V DC power supply, and IP20 protection.

Manufacturer
BECKHOFF
SKU
1086955
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

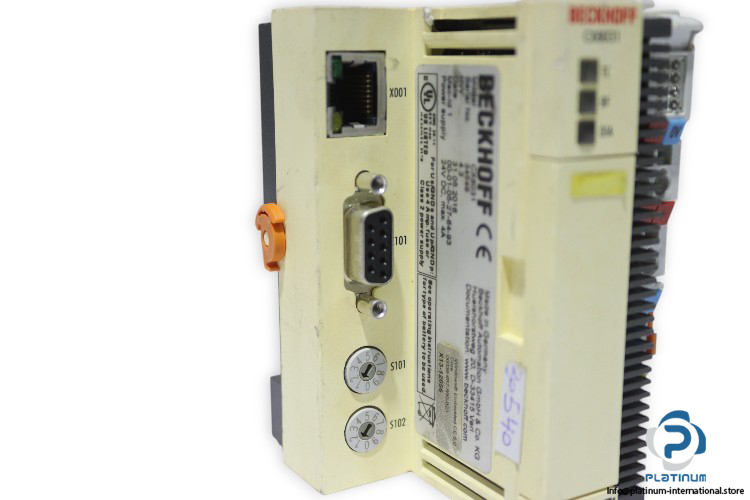

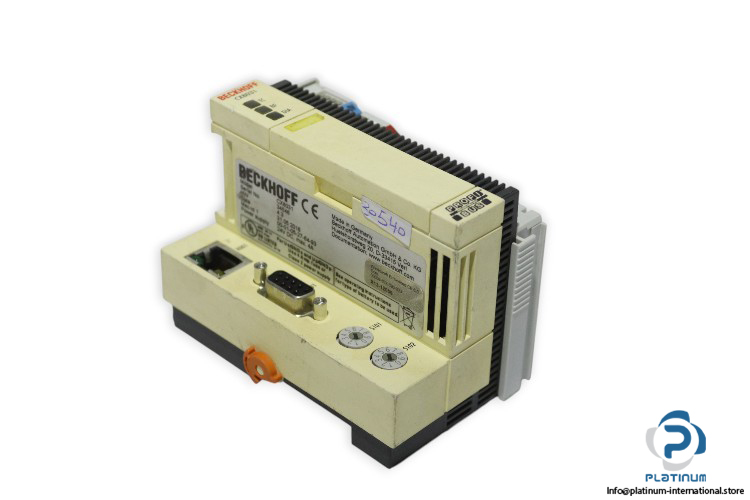

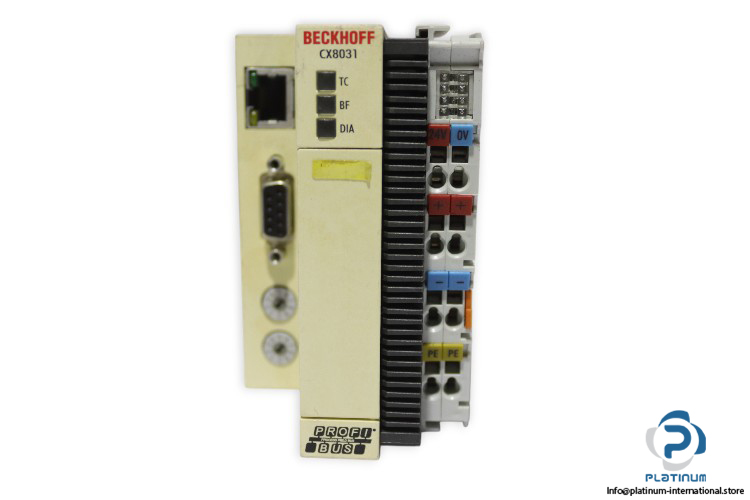

Beckhoff CX8031 Embedded PC with Arm9„¢ and PROFIBUS Slave

The Beckhoff CX8031 is a compact embedded PC designed for industrial automation applications, equipped with an Arm9„¢ 400 MHz processor and PROFIBUS slave interface. With integrated memory, passive cooling, and multiple communication ports, it provides efficient control and reliable system integration.

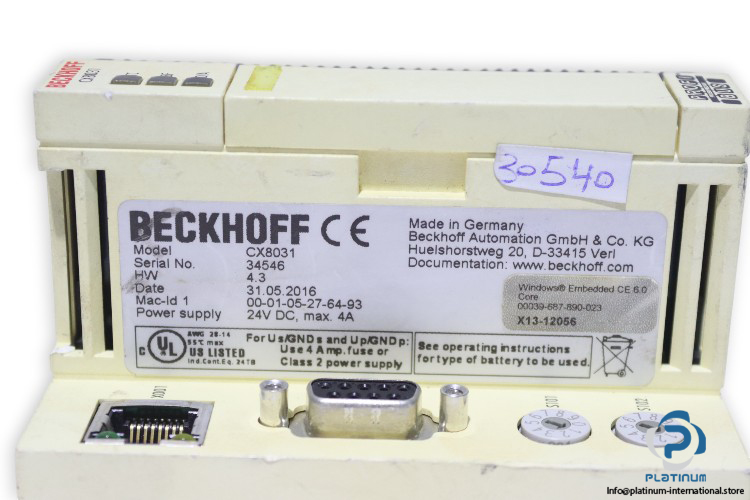

Manufacturer: Beckhoff

Type: Embedded PC with Arm9„¢ and PROFIBUS Slave

Model: CX8031

Serial No.: 34546

HW: 4.3

Mac-Id 1: 00-01-05-27-64-93

Code: X13-12056/00039-687-890-023

Power Supply24 V DC, max. 4 A
Current Supply E-bus/K-bus2 A
Max. Power Consumption3 W
ProcessorArm9„¢, 400 MHz
Number of Cores1
Flash MemorySlot for microSD card, 512 MB included (expandable)
Main Memory64 MB DDR2 RAM (not expandable)
1-second UPSIntegrated (1 MB on microSD card)
Interfaces1 x RJ45 10/100 Mbit/s, 1 x USB device (behind front flap), 1 x bus interface
CoolingPassive
Bus Interface1 x D-sub 9-pin socket with shielding
Diagnostics LED1 x TC status, 2 x bus status
Operating Temperature0 / 55 °C
Protection RatingIP20
