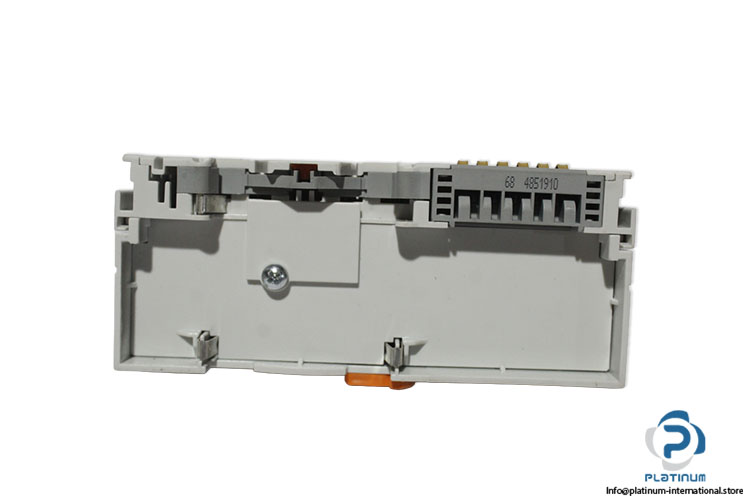

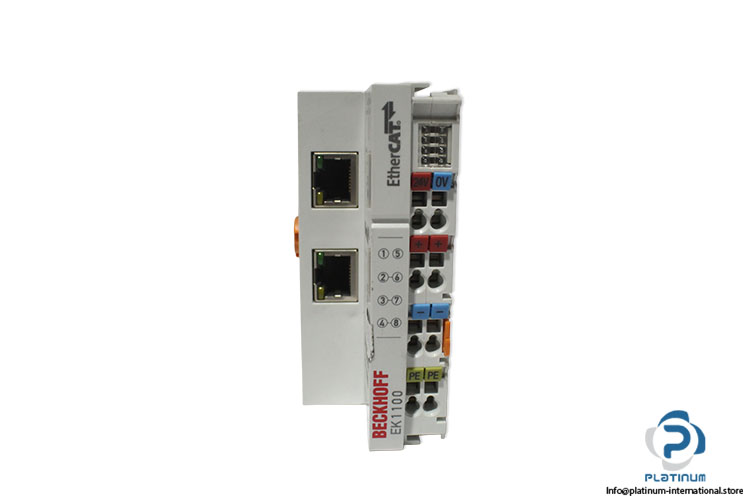

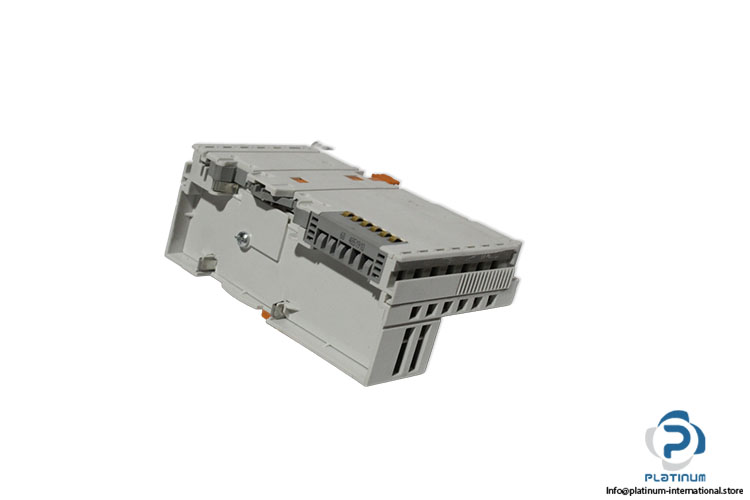

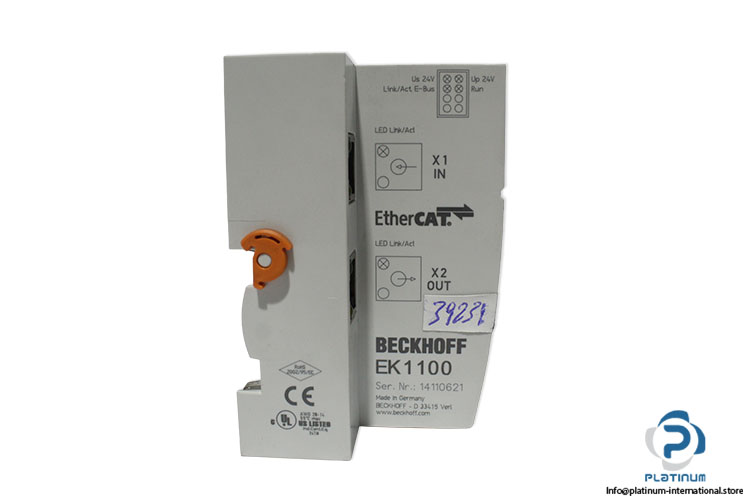

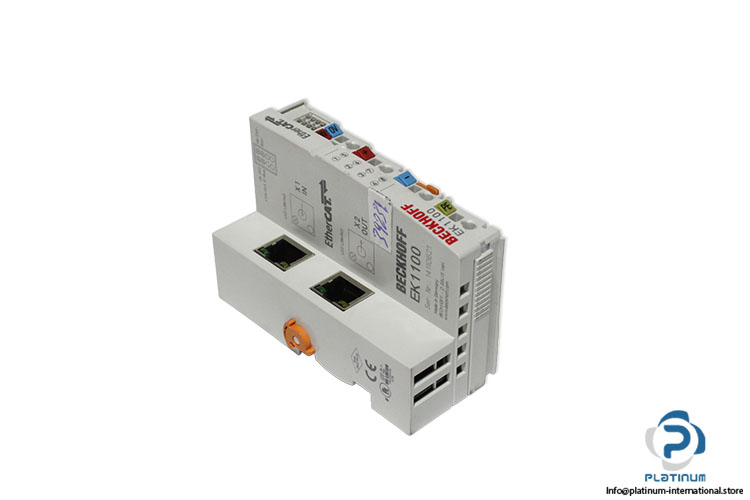

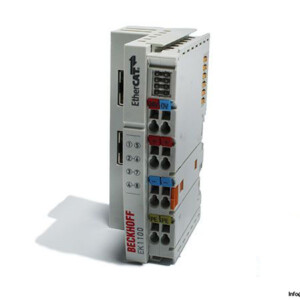

Beckhoff EK 1100 Ethercat Coupler
New
In stock8 unitsReady to ship
EtherCAT Coupler The BECKHOFF EK1100 is an EtherCAT Coupler designed to connect EtherCAT Terminals to 100BASE-TX networks, providing fast and reliable industrial communication.
Used
Available on request 90,00$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ser. Nr . | 14110621 |
| Task within EtherCAT system | coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks |
| Transmission medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance between stations | max. 100 m (100BASE-TX) |
| Number of EtherCAT Terminals | up to 65,534 |
| Protocol | EtherCAT |
| Power Supply | 24 V DC (-15%/20%) |
| Current Supply E-bus | 2000 mA |
| Power Contacts | 24 V DC |
| Current Power Contacts | 10 A |
| Electrical Isolation | 500 V |
| Bus interface | 2 x RJ45 |
| Delay | 1 µs |
| Transfer Rate | 100 Mbit/s |
| Protection | IP20 |
| Operating Temp. | -25 … 60 °C |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Dimensions (W x H x D) | 44 mm x 100 mm x 68 mm |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100790 |
| Weight | 0,10 |
