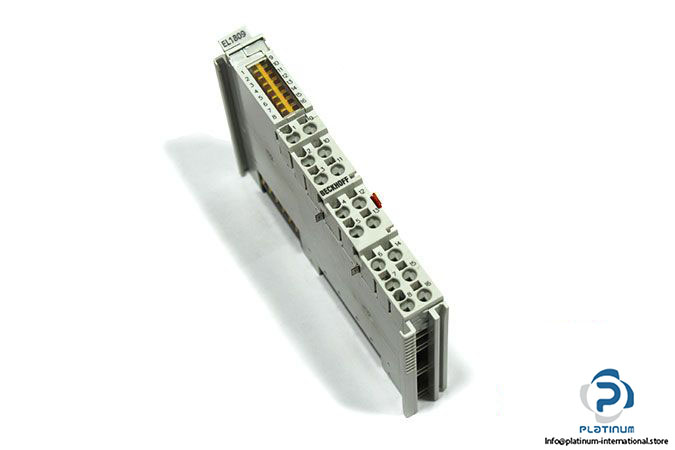

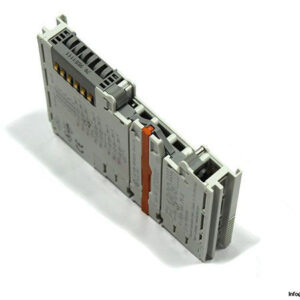

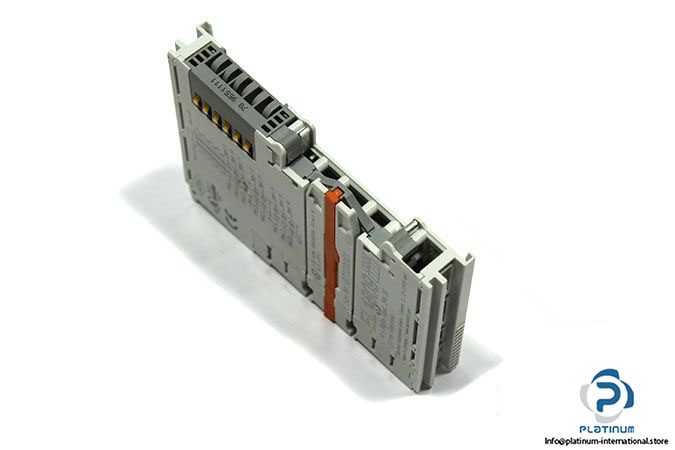

Beckhoff EL1809 Ethercat Terminal
Used
In stock2 unitsReady to ship
EtherCAT Terminal Beckhoff EL1809 16-channel digital input EtherCAT terminal designed for high-speed signal acquisition, reliable industrial communication, and compact DIN rail automation systems.
16AutomationBeckhoffchannelControlDigitalDINEL1809EtherCATI/OIndustrialInputModulePLCrailSystemterminal
New
Available on request 100,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

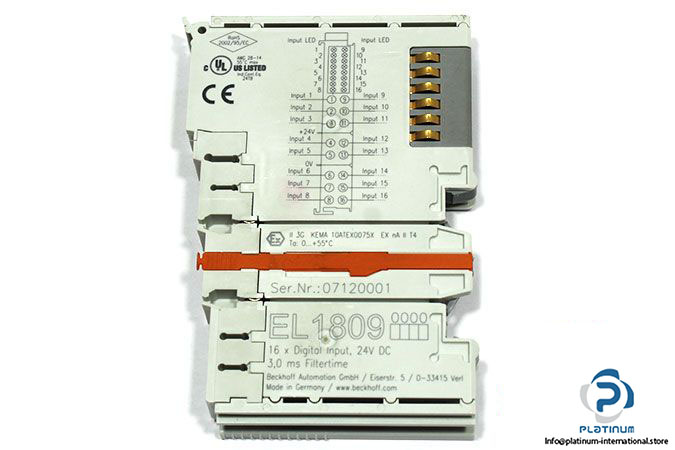

| Serial No. | 07120001 |
| Connection Technology | 1-wire |
| No. of digital inputs (DI) | 16 |
| Nominal Voltage | 24 V DC |
| Input filter | typ. 3 ms |
| Signal voltage (0) | -3-5 V |
| Signal voltage (1) | 11-30 V |
| Input current | typ. 3 mA |
| Electrical isolation | 500 V |
| Current consumption E-bus | typ. 100 mA |
| Current load power contacts | typ. 4 mA + load |
| Protection degree | IP20 |
| Material | Polycarbonate |
| Ambient temperature | 0 to 55°C |
| Certificate | cULus, CE |
| Standard | II 3G KEMA 10ATEX0075X EX nA II T4 |
| Design form | HD (High Density) housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | Labeling of the BZxxxx series |
| Dimensions | 12 x 100 x 68 mm |
| Condition | Used |
| SKU | 985906 |
| Weight | 0,06 |
