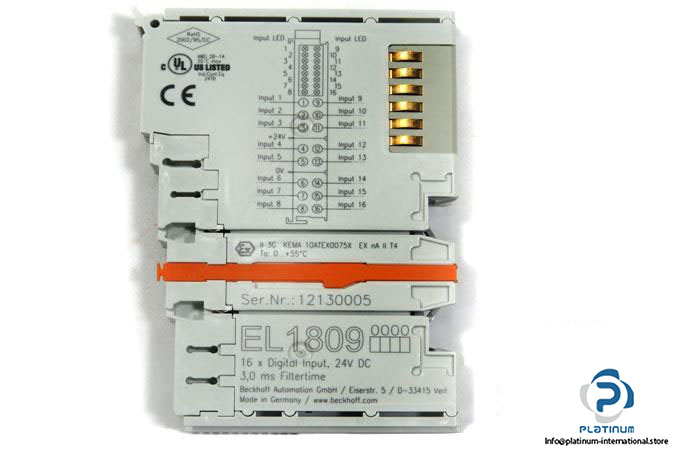

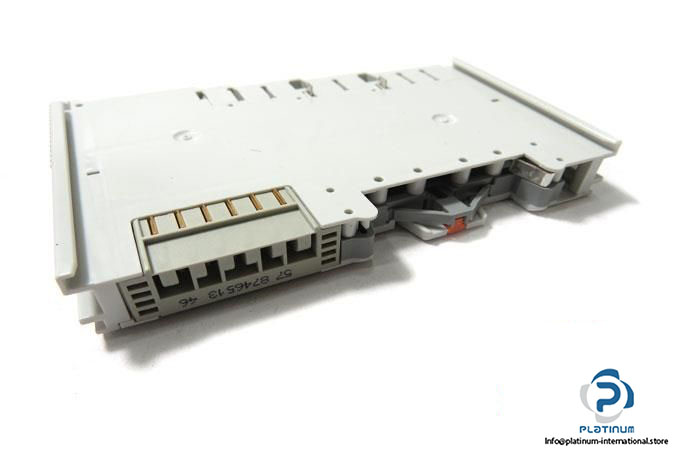

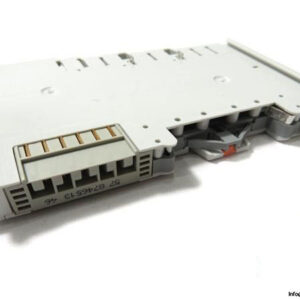

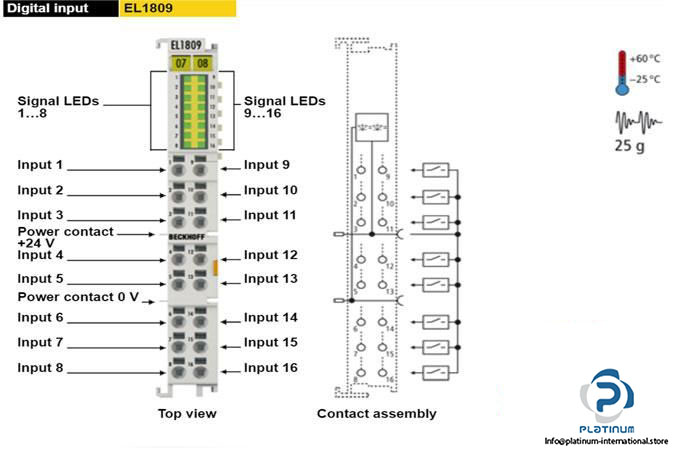

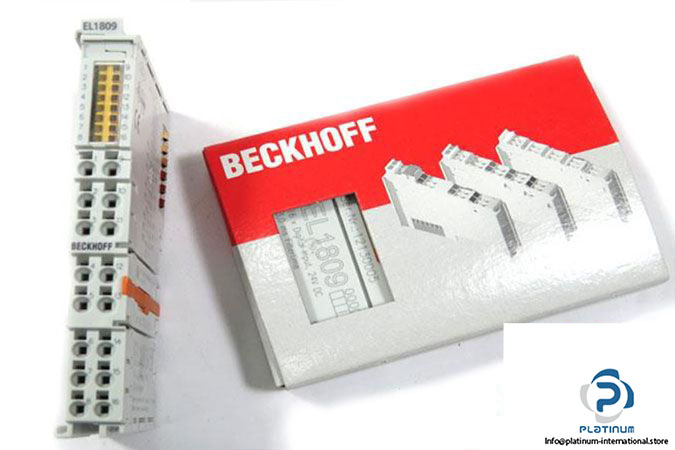

Beckhoff EL1809 Ethercat Terminal

Available on request

100,00$

EtherCAT Terminal Beckhoff EL1809 16-channel digital input EtherCAT terminal designed for high-speed signal acquisition, reliable industrial communication, and compact DIN rail automation systems.

Manufacturer
BECKHOFF
SKU
923538
Category
PLC Modules
Condition
New
Used In stock
This product is also available used
View Used Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Serial No.12130005
Connection Technology1-wire
No. of digital inputs (DI)16
Nominal Voltage24 V DC
Input filtertyp. 3 ms
Signal voltage (0)-3-5 V
Signal voltage (1)11-30 V
Input currenttyp. 3 mA
Electrical isolation500 V
Current consumption E-bustyp. 100 mA
Current load power contactstyp. 4 mA + load
Protection degreeIP20
MaterialPolycarbonate
Ambient temperature0 to 55°C
CertificatecULus, CE
StandardII 3G KEMA 10ATEX0075X EX nA II T4
Design formHD (High Density) housing with signal LEDs
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side-by-Side Mountingdouble slot and key connection
MarkingLabeling of the BZxxxx series
Dimensions12 x 100 x 68 mm
ConditionNew
SKU923538
Weight0,06
