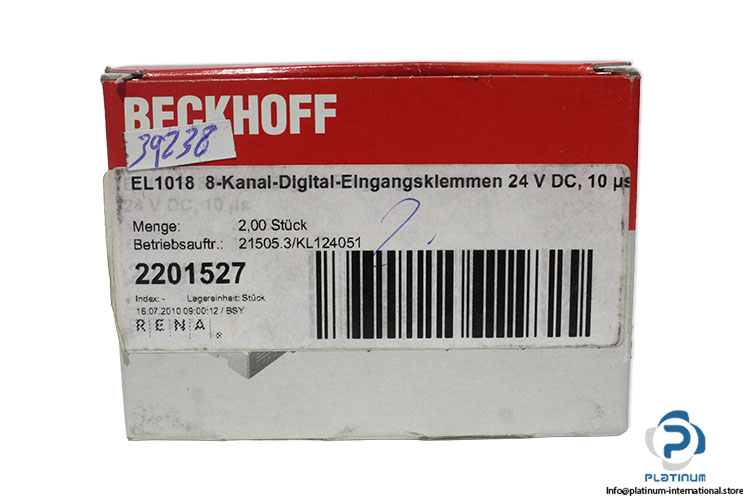

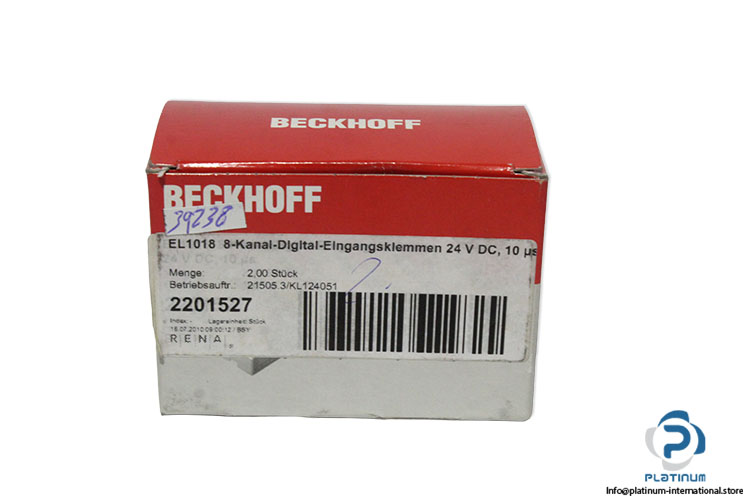

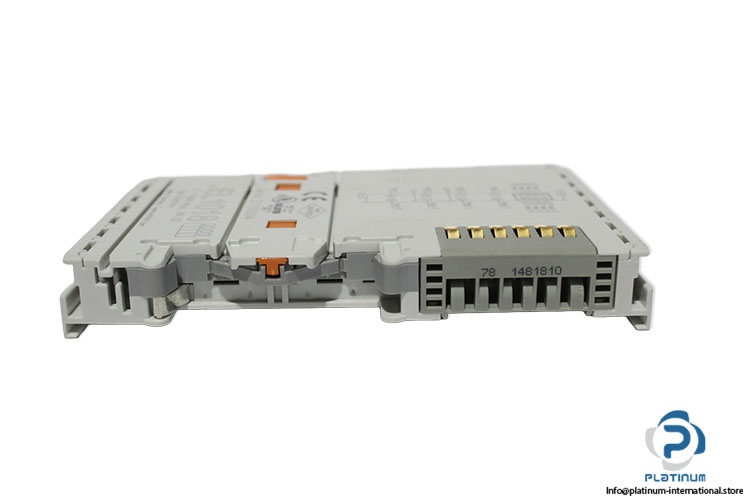

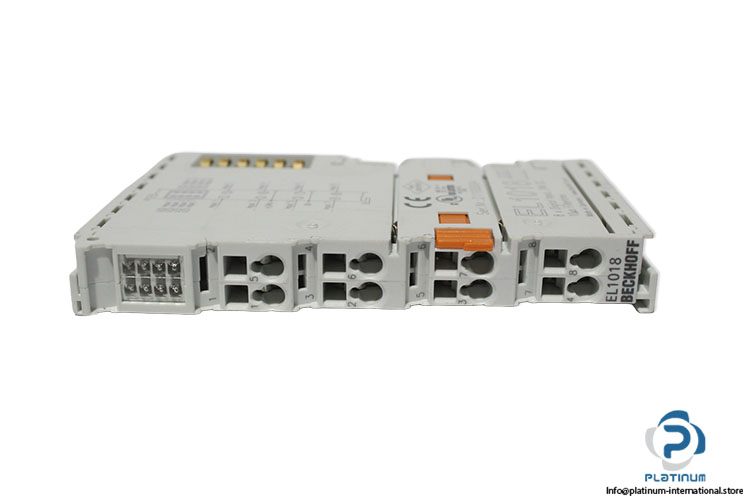

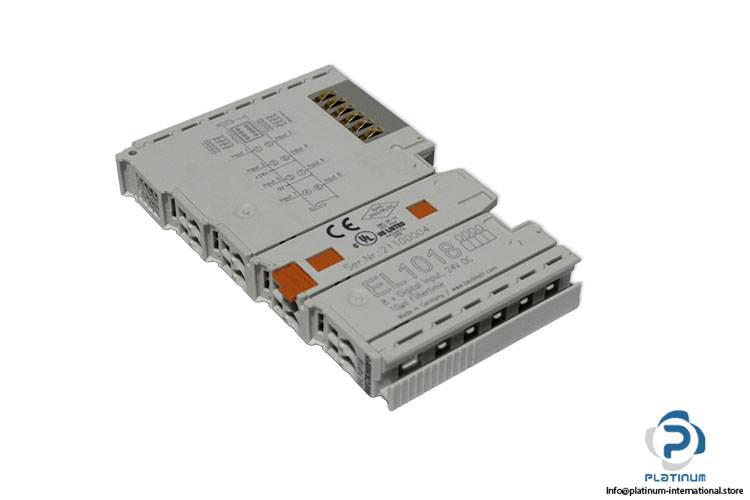

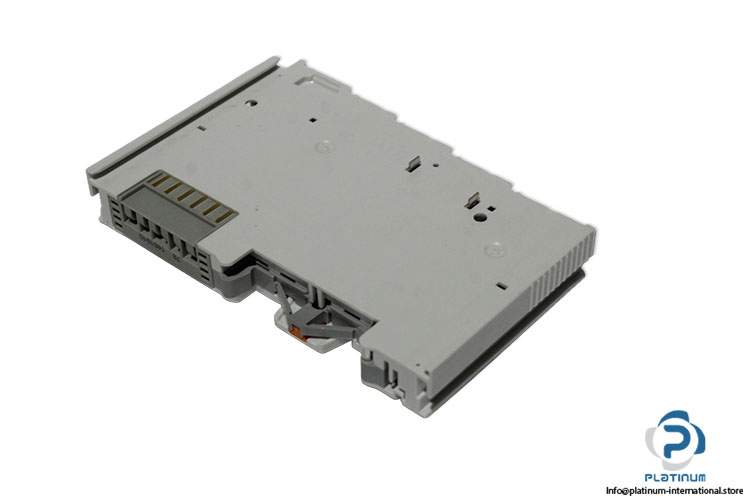

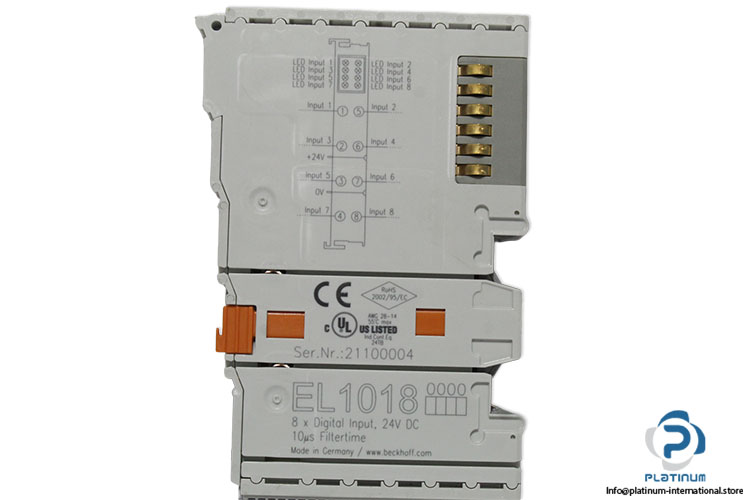

Beckhoff EL1018 Ethercat Terminal

In stock2 unitsReady to ship

EtherCAT Coupler The BECKHOFF EL 1018 is an EtherCAT Coupler designed to connect EtherCAT Terminals to 100BASE-TX networks, providing fast and reliable industrial communication.

Manufacturer
BECKHOFF
SKU
1100797
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.2201527
Connection technology1-wire
SpecificationEN 61131-2, type 1/3
Number of inputs8
Nominal voltage24 V DC (-15%/+20%)
Signal voltage “0”-3…+5 V (EN 61131-2, type 3)
Signal voltage “1”11…30 V (EN 61131-2, type 3)
Input currenttyp. 3 mA (EN 61131-2, type 3)
Input filtertyp. 10 µs
Current consumption power contactstyp. 2 mA + load
Current consumption E-bustyp. 90 mA
Electrical isolation500 V (E-bus/field potential)
Configurationno address or configuration setting
Special featuresstandard input terminal for fast signals (filter 10 µs)
Operating temperature-25…+60°C
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP20/see documentation
Pluggable wiring levelfor all ESxxxx terminals
Approvals/markingsCE, CCC, UL, ATEX, IECEx, DNV, cFMus
Ex markingATEX:II 3G Ex ec IIC T4 Gc
IECExEx ec IIC T4 Gc
cFMusClass I, Division 2, Groups A, B, C, D/Class I, Zone 2, AEx ec IIC T4 Gc
Materialpolycarbonate
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means ofdouble slot and key connection
Markinglabeling of the BZxxxx series
Dimensions (W x H x D)12 mm x 100 mm x 68 mm
Stock keyCON003
ConditionNew
SKU1100797
Weight0,07
