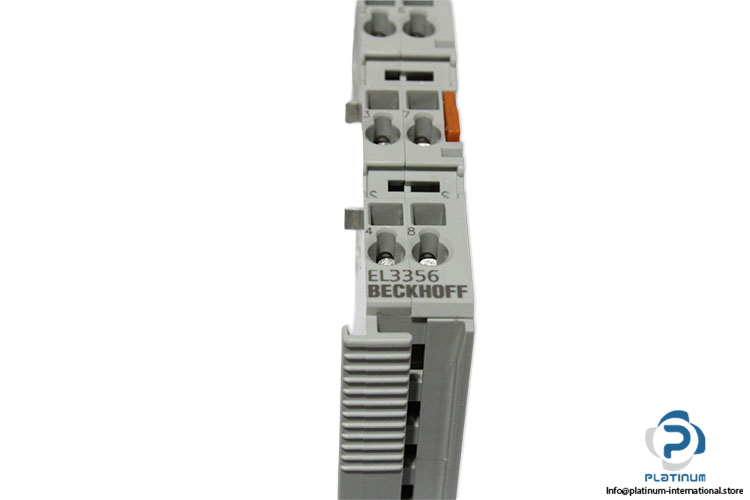

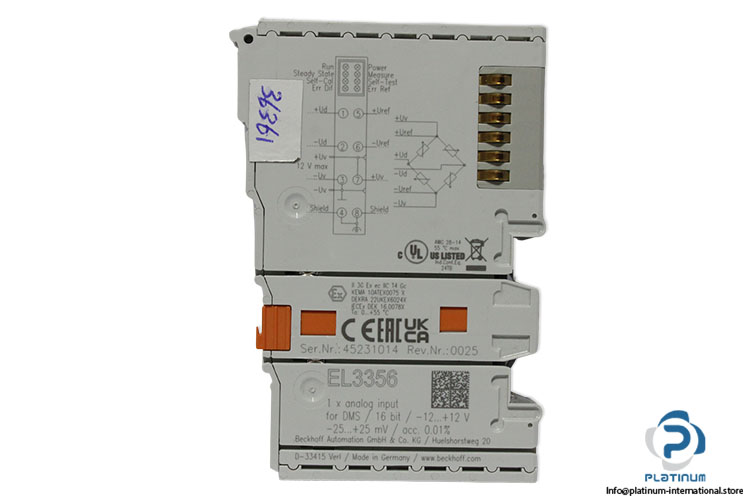

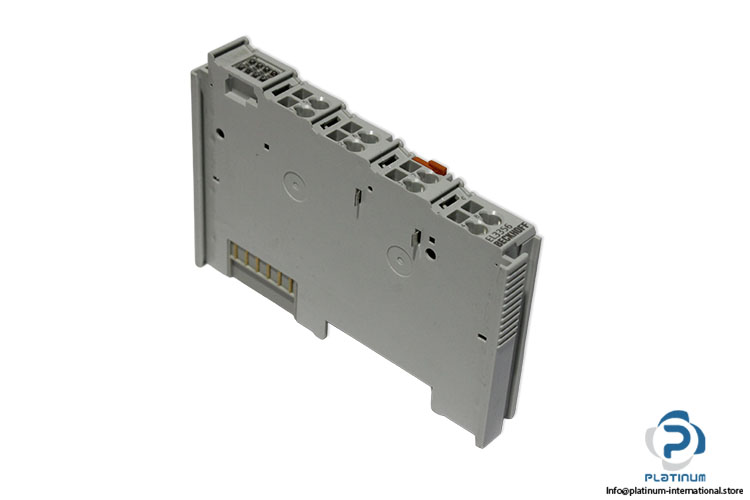

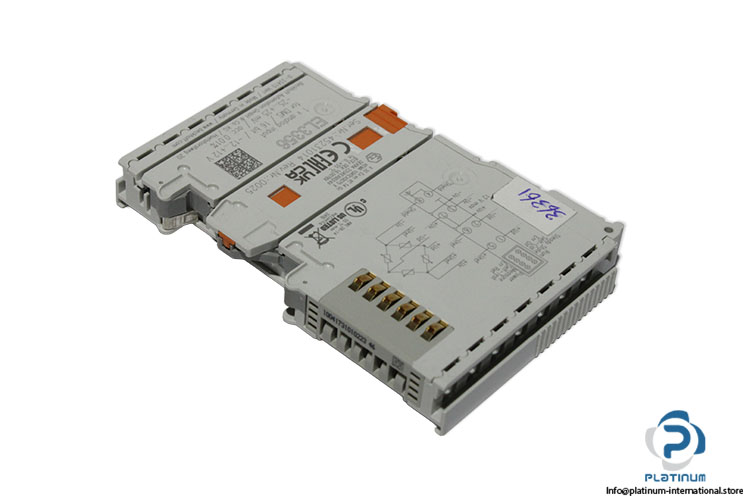

Beckhoff EL3356 Ethercat Terminal
New
In stock4 unitsReady to ship
EtherCAT Terminal Beckhoff EL3356 EtherCAT terminal with 1-channel analog input, high-resolution measurement capability, compact DIN rail design, and reliable performance for industrial automation and precision bridge measurement applications.
AnalogAutomationBeckhoffbridgeControlDINEL3356EtherCATI/OIndustrialInputMeasurementModulePLCrailterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

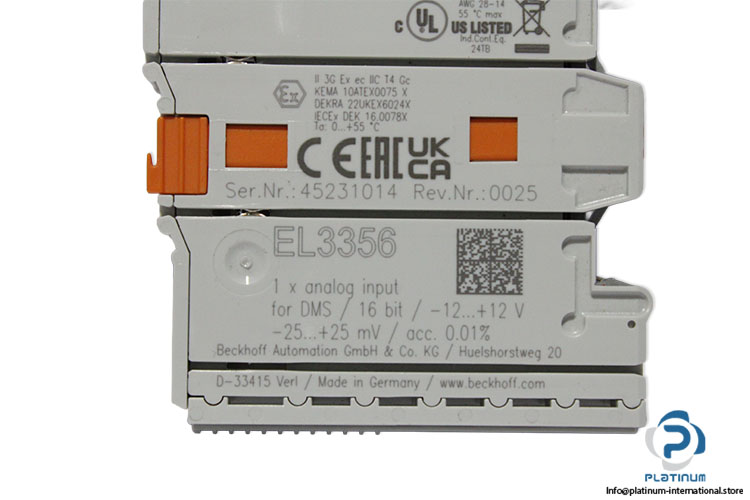

| Serial No. | 45231014 |
| Rev. No. | 0025 |

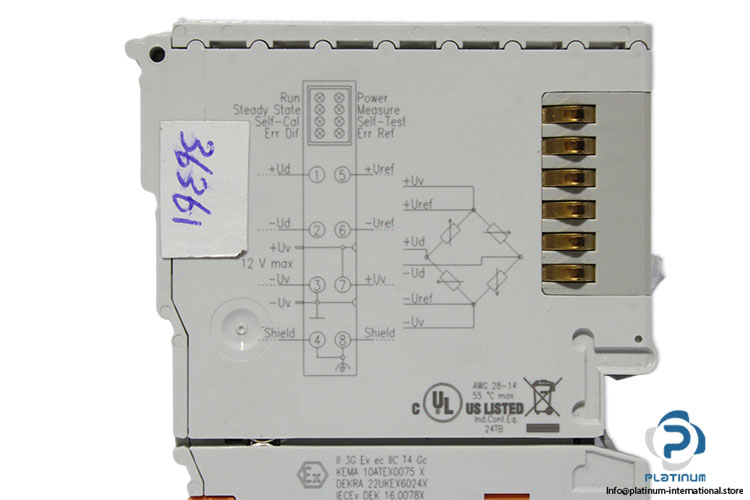

| No. of analog input (AI) | 2, for 1 resistor bridge in full bridge technology (measuring bridge, full bridge) |
| Nominal voltage | via the E-bus |
| Signal voltage | -12 to 2 V |
| Measuring range UD | max. ±25 mV |
| Internal resistance | > 200 kohm(UREF), > 1 Mohm (UD) |
| Input filter limit frequency | 10 kHz low pass (-3 dB) |
| Conversion rate | 100…4 samples/s (10…250 ms conversion time) |
| Power supply UV | up to 12 V DC from power contacts, dependent on sensor |
| Resolution | 16 bit, 32-bit presentation |
| Current consumption E-bus | typ. 210 mA |
| Protection degree | IP20 |
| Material | Polycarbonate |
| Ambient temperature | 0 to 55°C |
| Certificate | CE, cULus, EAC, UKCA |
| Standard | Il 3G Ex ec IIC 14 Gc, KEMA 10ATEX0075 X, DEKRA 22UKEX6024X, IECEx DEK 16.0078X |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |

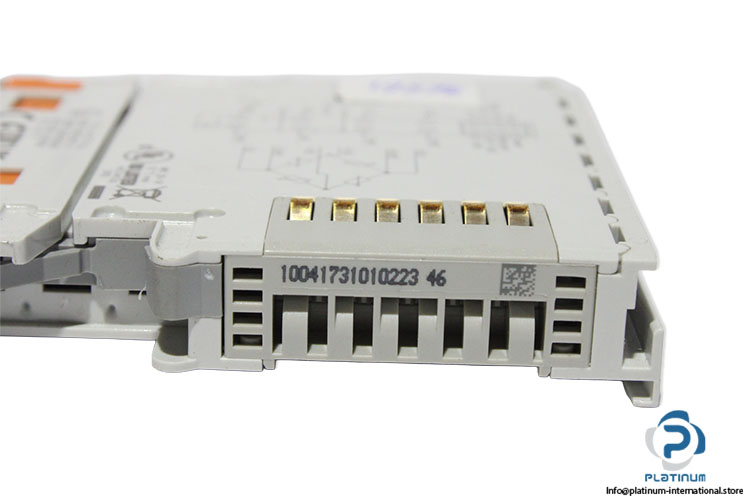

| Terminal No. | 10041731010223 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097594 |
| Weight | 0,05 |
