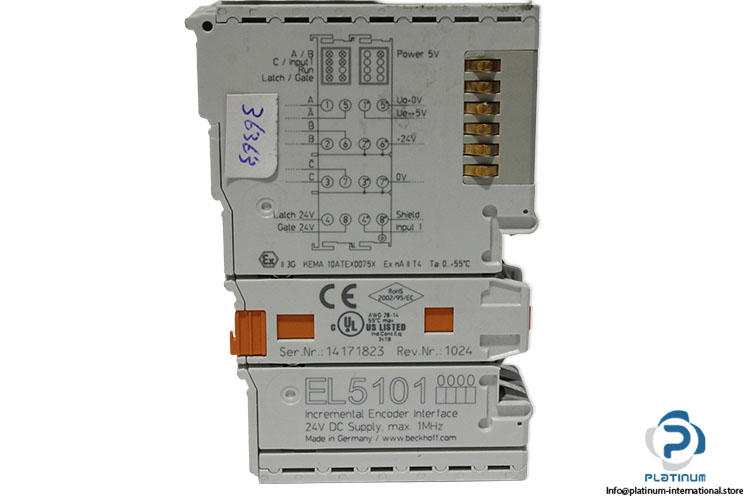

Beckhoff EL5101 Ethercat Terminal
New
In stock3 unitsReady to ship
166,66$
EtherCAT Terminal Beckhoff EL5101 EtherCAT terminal with single-channel incremental encoder interface, high-speed counting, quadrature decoding, and precise motion feedback for industrial automation and encoder applications.
AutomationBeckhoffControlcounterDINEL5101EncoderEtherCATFeedbackIncrementalIndustrialInterfacemoModuleMotionPositionrailRS422terminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Serial No. | 14171823 |
| Rev. No. | 1024 |
| Connection Technology | incremental encoder interface, differential (RS422), single-ended (TTL), counter, pulse generator |
| No. of analog inputs (AI) | 1 |
| Encoder connection | 1 x A, B, C: differential inputs (RS422) |
| Additional inputs | status input 5 V DC, gate/latch input 24 V DC |
| Encoder operating voltage | 5 V DC/max. 0.5 A |
| Counter | 1 x 16/32 bit switchable |
| Limit frequency | 4 million increments/s (with 4-fold evaluation), corresponding to 1 MHz |
| Quadrature decoder | 4-fold evaluation |
| Nominal voltage | 24 V DC |
| Resolution | 1/256-bit micro increments |
| Current consumption power contacts | typ. 100 mA + load |
| Current consumption E-bus | typ. 130 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Special features | wire breakage detection, latch and gate function, period duration and frequency measurement, micro increments, timestamping of edges, filters |
| Protection degree | IP20 |
| Material | Polycarbonate |
| Ambient temperature | 0 to 55°C |
| Certificate | CE, cULus |
| Standard | II 3G KEMA 10ATEX0075X Ex nA T4 |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Terminal No. | 57 129893516 46 / 78 129734416-46 |
| Dimensions | 24 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097596 |
| Weight | 0,1 |
