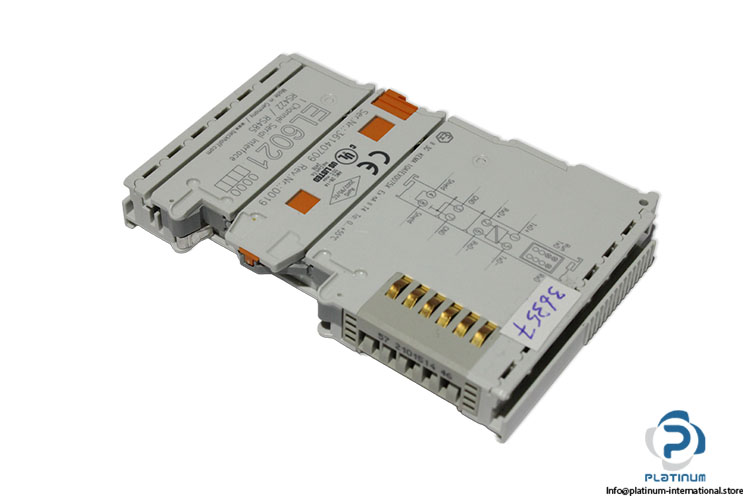

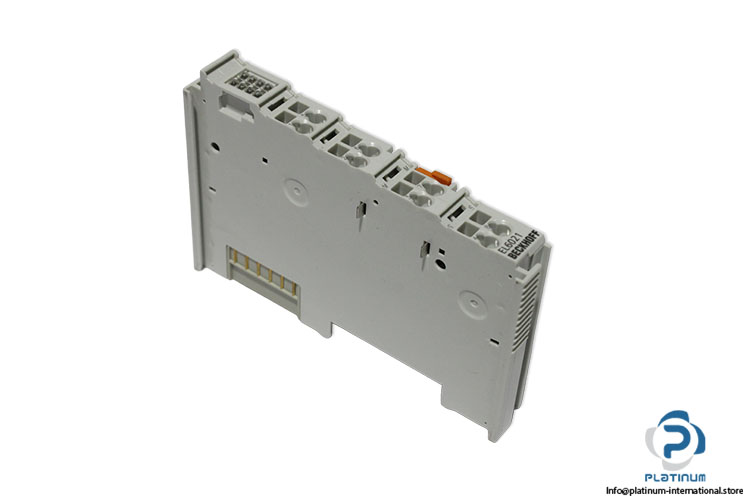

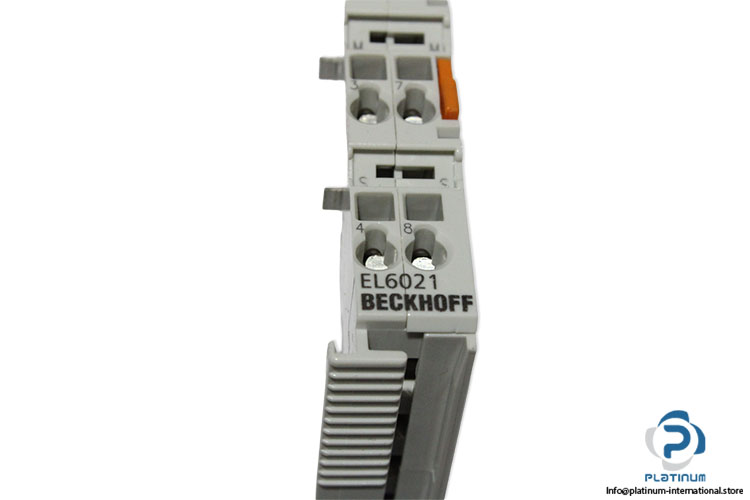

Beckhoff EL6021 Ethercat Terminal
New
In stock5 unitsReady to ship
139,99$
EtherCAT Coupler The BECKHOFF EL6021 is an EtherCAT Coupler designed to connect EtherCAT Terminals to 100BASE-TX networks, providing fast and reliable industrial communication.
AutomationBeckhoffCommunicationDINEL6021EtherCATIndustrIndustrialInterfaceModulePLCrailRS422RS485Serialterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| SN | 30180812 |
| Rev.Nr . | 0020 |
| Connection technology | terminal contact |
| Data transfer channels | TxD and RxD, full/half duplex |
| Nominal voltage | via the E-bus |
| Interfaces | 1 x RS422/RS485 |
| Data transfer rates | 2400…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit |
| Cable length | approx. 1000 m twisted pair |
| Bit transfer | with differential signal |
| Line impedance | 120 ohms |
| Data buffer | 864 bytes receive buffer, 128 bytes transmit buffer |
| Protection degree | IP20 |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 170 mA |

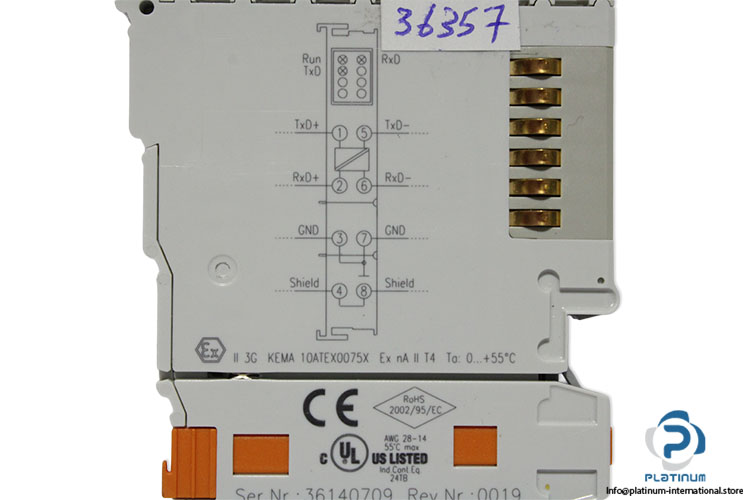

| Standard | II 3G KEMA 10ATEX0075X Ex nA II T4 |
| Material | Polycarbonate |
| Ambient temperature | 0 to 55°C |
| Certificate | CE, cULus |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |

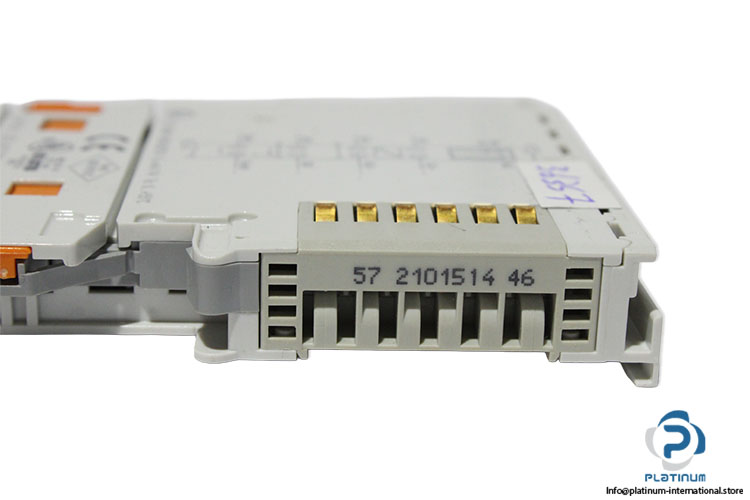

| Terminal No. | 57 2101514 46 |
| Dimensions | 12 x 100 x 68 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1097590 |
| Weight | 0,05 |
