Beckhoff EL9110 Ethercat Terminal
New
In stock6 unitsReady to ship

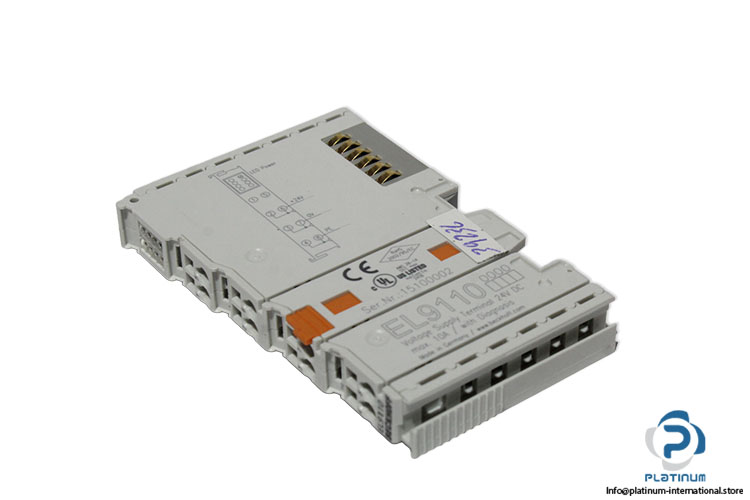

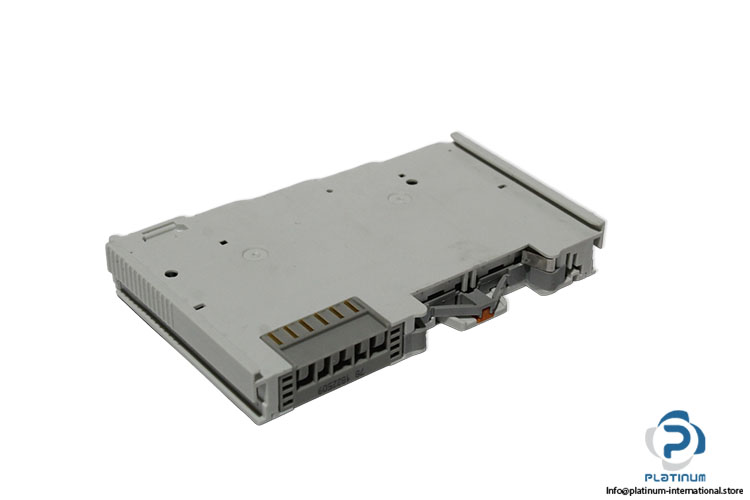

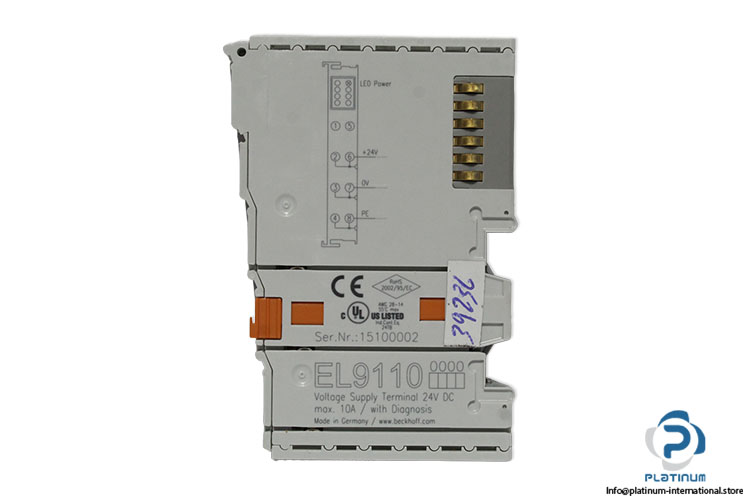

EtherCAT Terminal The BECKHOFF EL9110 is a 24 V DC potential supply terminal with a 10 A current capacity, designed for reliable power distribution in EtherCAT automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ser.Nr . | 15110004 |
| Technology | potential supply terminal |
| Current load | 10 A |
| Power LED | green |
| Renewed infeed | yes |
| Nominal voltage | 24 V DC |
| Electrical isolation | 500 V (E-bus/field potential) |
| Connection facility to additional power contact | 1 |
| Bit width in the process image | 0 |
| Housing width | 12 mm |
| Operating temperature | -25…+60°C |
| Pluggable wiring level | for all ESxxxx terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| Ex marking ATEX | II 3G Ex ec IIC T4 Gc |
| IECEx | Ex ec IIC T4 Gc/cFMus:Class I, Division 2, Groups A, B, C, D/Class I, Zone 2, AEx ec IIC T4 Gc |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100795 |
| Weight | 0,04 |
