Beckhoff KL 1114 BUS Terminal
Used
In stock15 unitsReady to ship
Bus Terminal
A digital input bus terminal with four 24 V DC inputs, designed for reliable signal acquisition in industrial automation systems and seamless integration with Beckhoff K-bus architectures.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

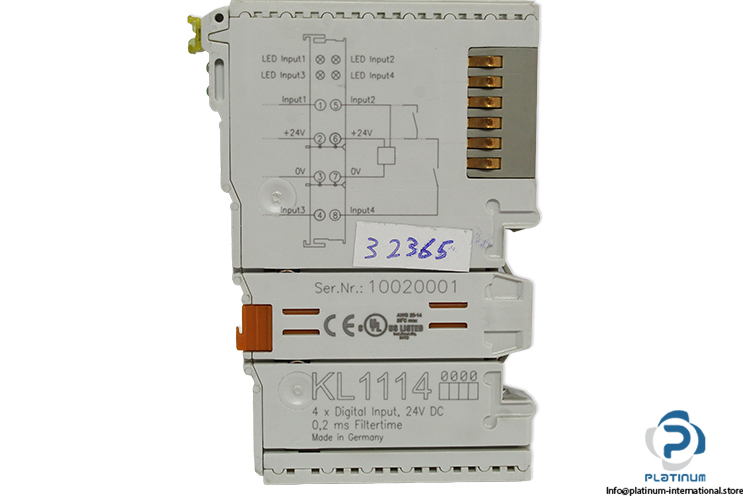

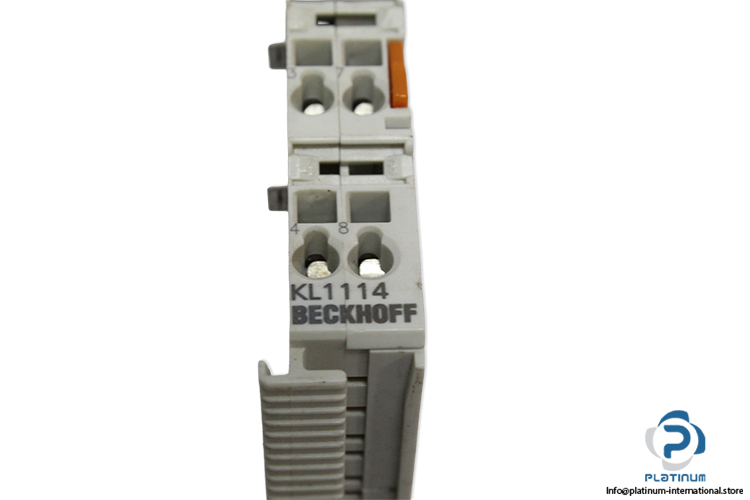

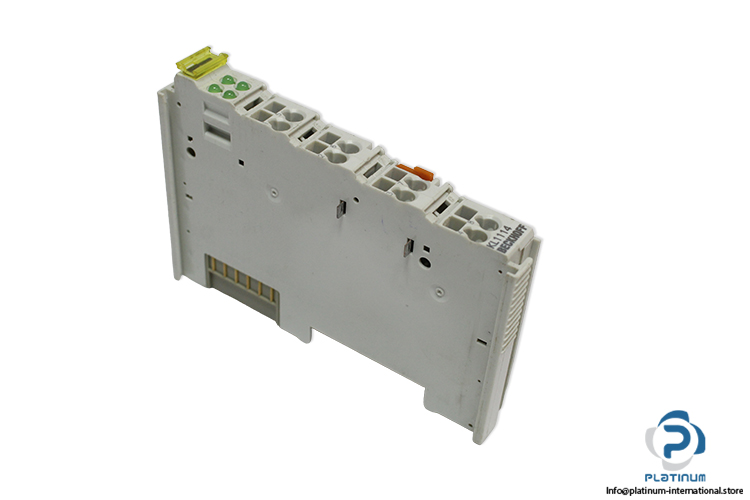

BECKHOFF KL1114 Bus Terminal
A high-performance digital input bus terminal designed for reliable signal acquisition in industrial automation systems. The KL1114 supports 2-/3-wire connection technology and complies with international standards, making it suitable for control cabinets and modular automation architectures. Manufacturer: BECKHOFF
Type: Bus Terminal
Model: KL1114
Serial No.: 10020001
| Connection Technology | 2-/3-wire |
| Specification | EN 61131-2, Type 1 |
| Number of Inputs | 4 |
| Nominal Voltage | 24 V DC |
| œ0 Signal Voltage | -3 / +5 V |
| œ1 Signal Voltage | 15 / 30 V |
| Input Filter | typ. 0.2 ms |
| Input Current | typ. 5 mA |
| Current Consumption (K-bus) | typ. 5 mA |
| Electrical Isolation | 500 V (K-bus / field potential) |
| Bit Width in Process Image | 4 inputs |
| Configuration | No address or configuration setting |
| Storage Temperature | -40 / +85 °C |
| Operating Temperature | -25 / +60 °C |
| Relative Humidity | 95%, no condensation |
| Vibration / Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity / Emission | EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating / Installation Position | IP20 / variable |
| Plug-in Wiring Level | For all KSxxxx Bus Terminals |
| Approvals / Markings | CE, CCC, UL, ATEX, IECEx, DNV |
