Beckhoff KL 2184 Digital Output Terminal

In stock2 unitsReady to ship

Digital Output Terminal

Beckhoff KL2184 from the KL2 series with 4 outputs, 24 VDC supply, short-circuit protection, and compact design for industrial automation systems.

Manufacturer
BECKHOFF
SKU
1083011
Category
PLC Modules
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

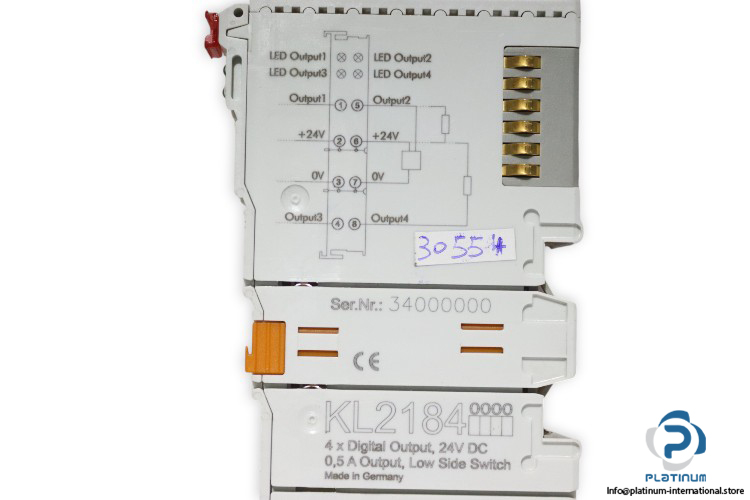

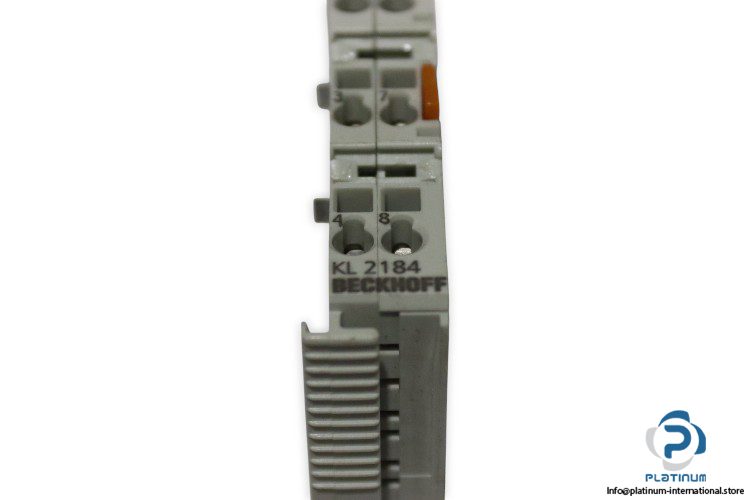

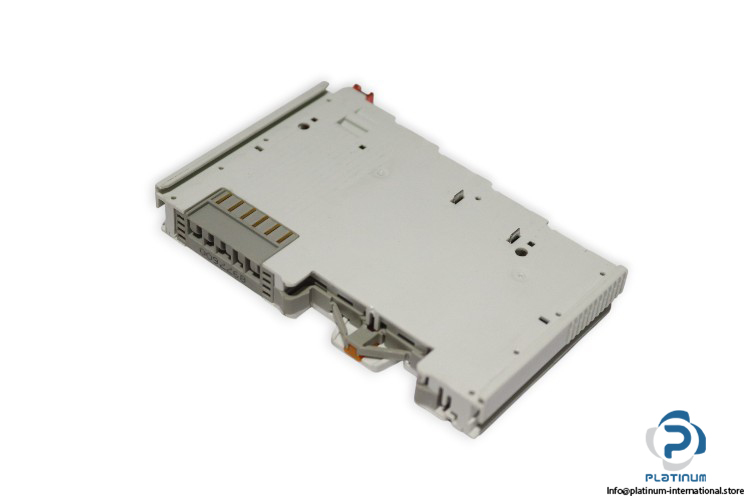

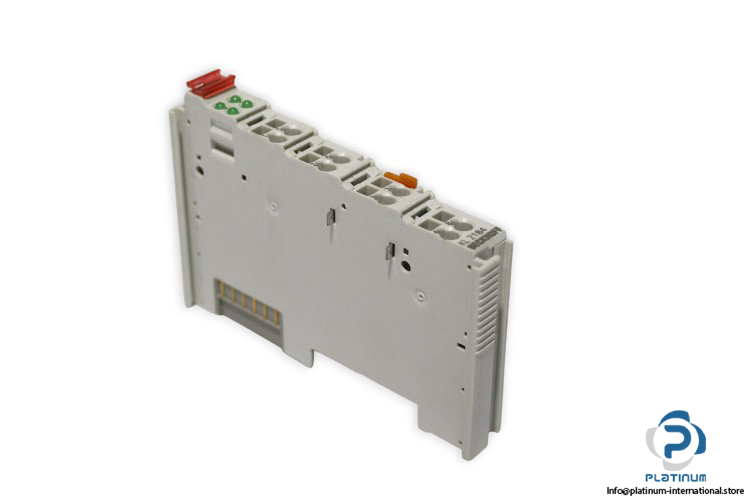

Beckhoff KL2184 Digital Output Terminal

The Beckhoff KL2184 is a high-quality digital output terminal from the KL2 series, designed for reliable and efficient control in automation systems. With 4 outputs, short-circuit protection, and robust electrical isolation, it ensures stable operation in demanding industrial environments.

Manufacturer: Beckhoff

Type: Digital Output Terminal

Model: KL2184

Serial No.: 34000000

Series: KL2

Connection Technology2-/3-wire
Number of Outputs4
Nominal Voltage24 VDC (-15 %/+20 %)
Load TypeOhmic, Inductive, Lamp Load
Output CurrentMax. 0.5 A (short-circuit proof) per channel
Short-Circuit Current< 7 A
Breaking Energy (Ind.)Max. 100 mJ/channel
Electrical Isolation500 V (K-bus/field potential)
Current Consumption Power ContactsTyp. 30 mA + load
Current Consumption K-busTyp. 9 mA
Bit Width in Process Image4 outputs
Dimensions (W x H x D)15 mm x 100 mm x 70 mm (width aligned 12 mm)
MountingOn 35 mm mounting rail, conforms to EN 60715
Permissible Ambient Temperature0 °C / +55 °C
