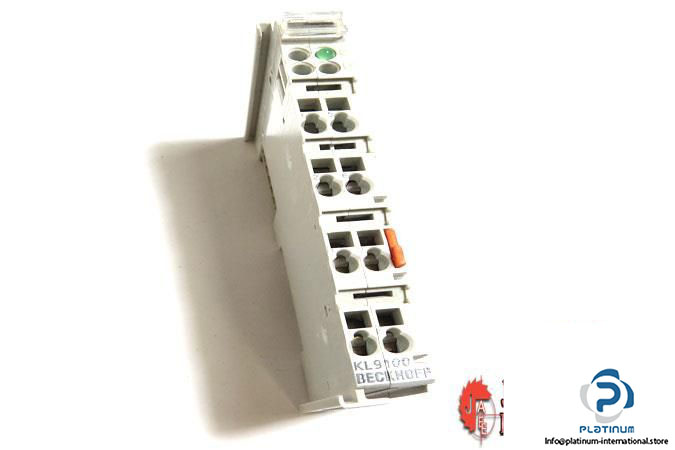

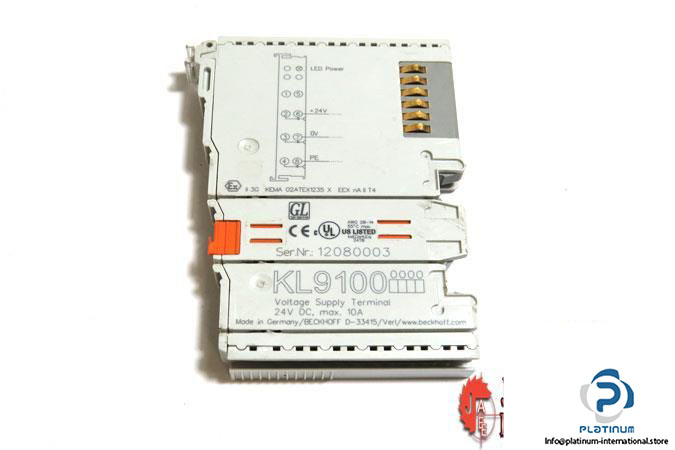

Beckhoff KL9100 Potential Supply Terminal
Used
In stock11 unitsReady to ship
20,00$
Potential Supply Terminal The BECKHOFF KL-9100 is a 24 V DC potential supply terminal with up to 10 A current load, designed for reliable power infeed in industrial control and automation systems.
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Art No | 13963 |
| Part No. | 20586 |
| Pluggable wiring | for all KSxxxx bus terminals |
| Nominal voltage | 24 V DC |
| Current load | max. 10A |
| Housing width | 12 mm |
| Specifications | PE contact, Renewed infeed, K-bus, looped through, electrical isolation |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Ex marking ATEX | II 3G Ex ec IIC T4 Gc/IECEx:Ex ec IIC T4 Gc/cFMus:Class I, Division 2, Groups A, B, C, D/Class I, Zone 2, AEx ec IIC T4 Gc |
| Operating temp | -25…60 °C |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Condition | Used |
| SKU | 743012 |
| Weight | 0,05 |
