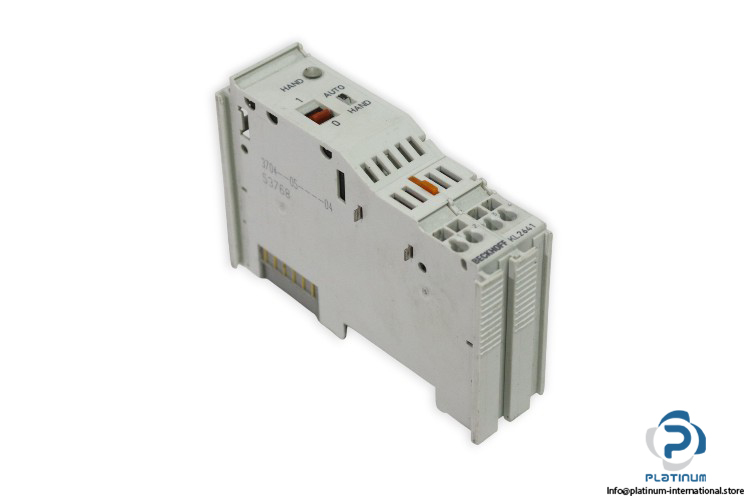

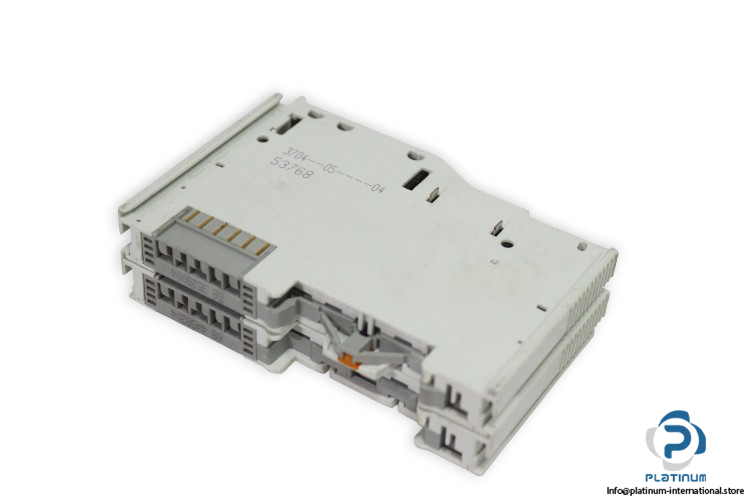

Beckhoff KL2641 Bus Terminal
The Beckhoff KL2641 is a reliable 1-channel relay output bus terminal designed for high-performance switching applications. With robust build quality, wide compatibility, and strong electrical capacity, it ensures dependable operation in industrial automation systems.
Manufacturer: Beckhoff
Type: Bus Terminal, 1-channel relay output
Model: KL2641

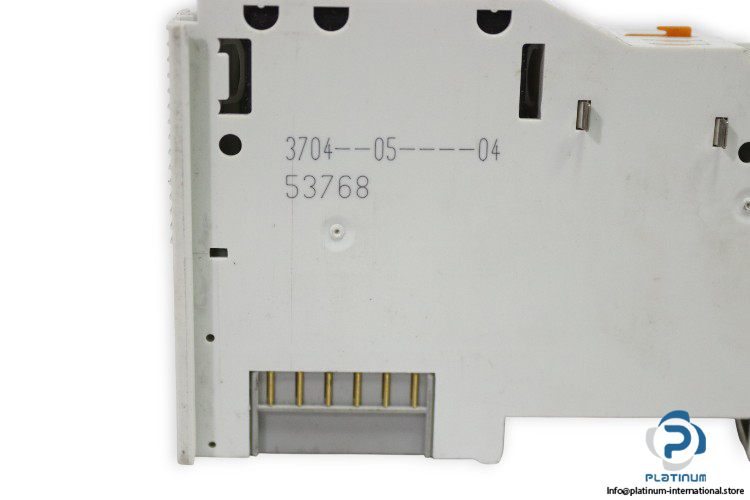

REF NO: 53768

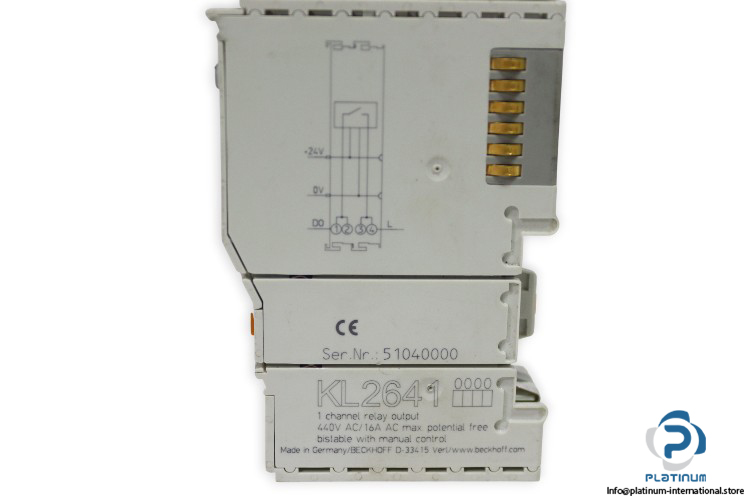

SN: 51040000
Series: KL2xxx
| Number of outputs | 1 x make contact |
| Nominal voltage | 230 V AC (max. switching voltage 440 V AC) |
| Switching capacity | max. 5 kVA |
| Switching voltage max. | 440 V AC (UL: max. 230 V AC) |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 16 A |
| Switching current | max. 16 A AC |
| Lamp test, electronic ballast | max. 16 A starting current |
| Current consumption power contacts | typ. 65 mA + load |
| Current consumption K-bus | typ. 5 mA |
| Contact material | AgSnO2 |
| Bit width in the process image | 2 inputs (status manual, automatic), 2 outputs |
| Operating cycles | 10¶ |
| Operating cycles mech. (min.) | 1 x 10¶ |
| Operating temperature | 0 / 55°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating / installation position | IP20 / variable |
