Beckhoff KL4002 BUS Terminal
New
In stock1 unitReady to ship

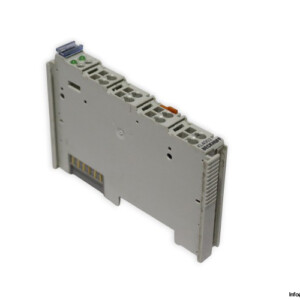

Bus Terminal The BECKHOFF KL4002 is a 2-channel analog output Bus Terminal with 0…10 V signal output and 12-bit resolution, designed for industrial automation and control systems.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ser.Nr . | 27103D07 |
| Technology | single-ended |
| Number of outputs | 2 |
| Power supply | via the K-bus |
| Signal voltage | 0…10 V |
| Load | 5 kO (short-circuit proof) |
| Output error | ±0.1% (relative to end value) |
| Resolution | 12 bit |
| Conversion time | 1.5 ms |
| Electrical isolation | 500 V (K-bus/signal voltage) |
| Bit width in the process image | output: 2 x 16 bit data (2 x 8 bit control/status optional) |
| Operating temperature | -25…+60°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring level | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| Ex marking ATEX | II 3G Ex ec IIC T4 Gc/IECEx:Ex ec IIC T4 Gc |
| cFMus | Class I, Division 2, Groups A, B, C, D |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100789 |
| Weight | 0,05 |
