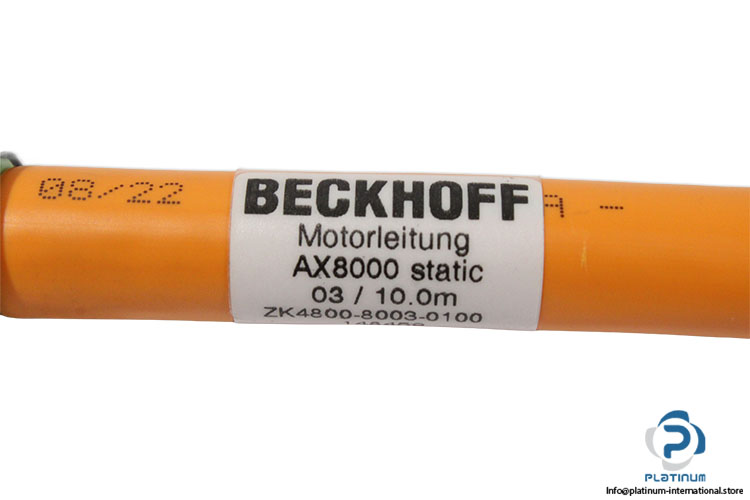

Beckhoff ZK4800-8003-0100 Motor Cable

In stock25 unitsReady to ship

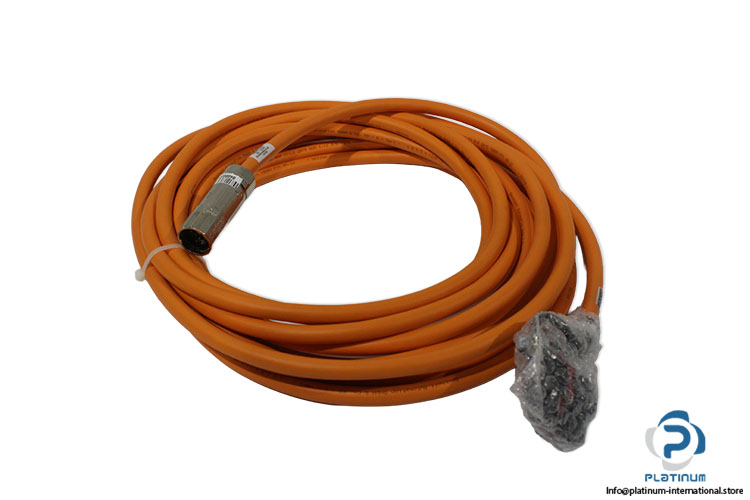

BECKHOFF ZK4800-8003-0100 Motor Connection Cable Industrial motor connection cable with 10 m length, M23 connector interface, 1000 V AC rating, and PVC jacket. Designed for reliable connection of compatible BECKHOFF motors and drive systems in fixed installation applications.

Manufacturer
BECKHOFF
SKU
1099452
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

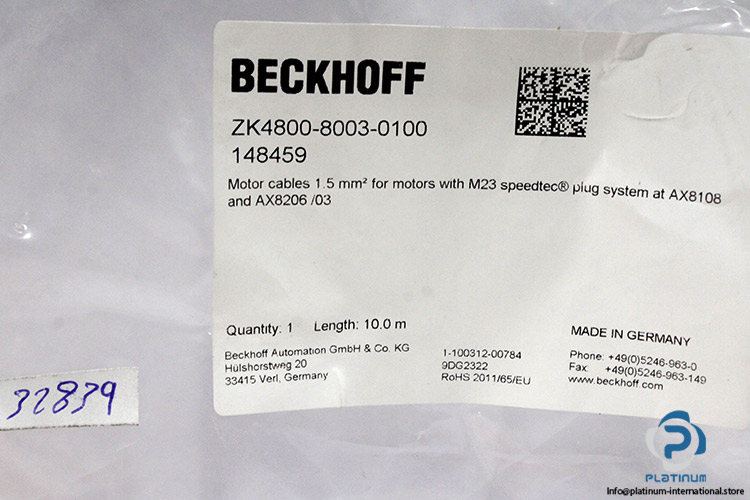

Part No.148459
Cable length10 m
connector 19-pins |FeMale
connector 24- wires / male

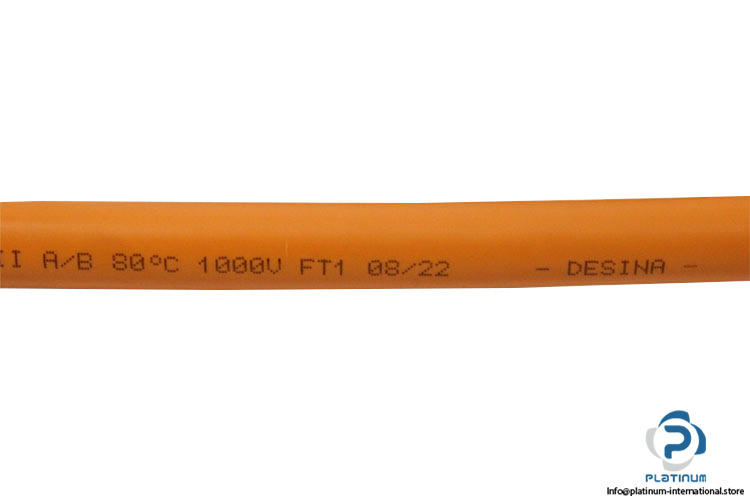

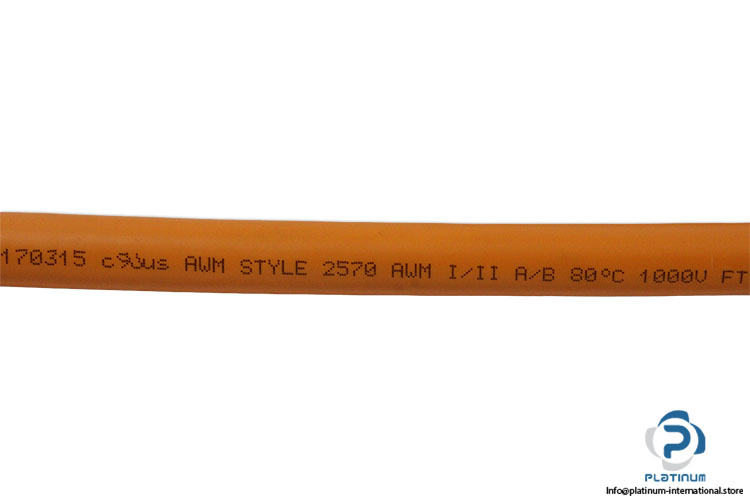

Cable informationAWM STYLE 2570 AWM I/II A/B 80°C 1000V FT1 08/22

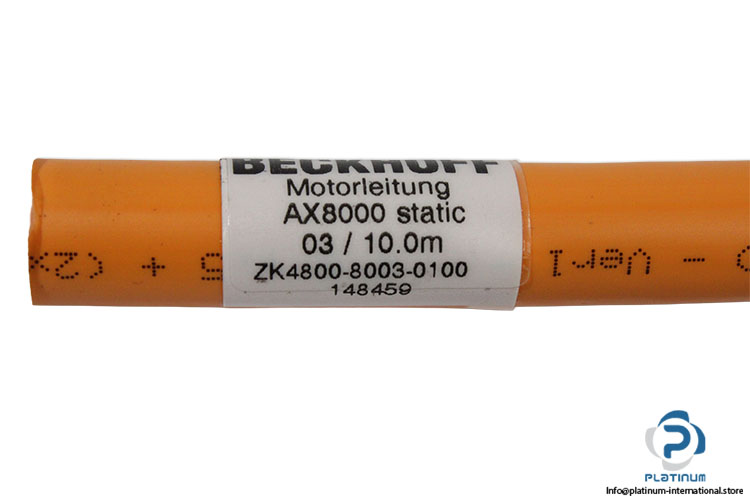

Motor cables used formotors with M23 speedtec® piug system at AX8108/ AX8000

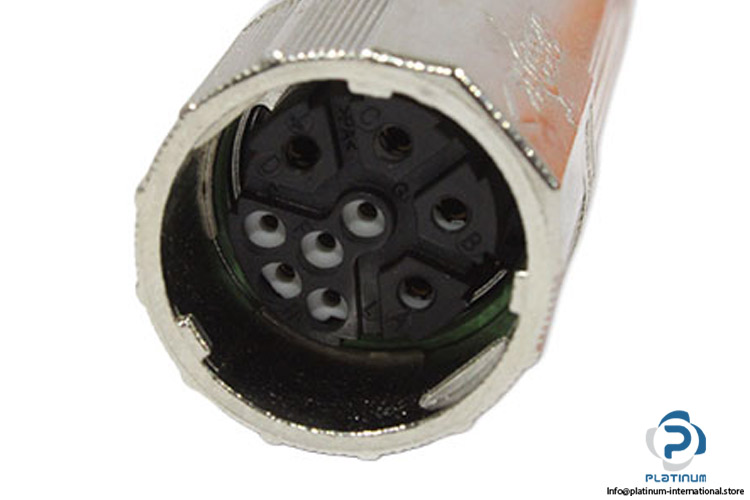

Installation size, Head AM23
Connector type, Head Aplug
Contact type, Head Afemale
Number of positions (face), Head APower: 3+PE, Signal: 5
Mating cycles, Head A500
Wire termination, Head Acrimp connection

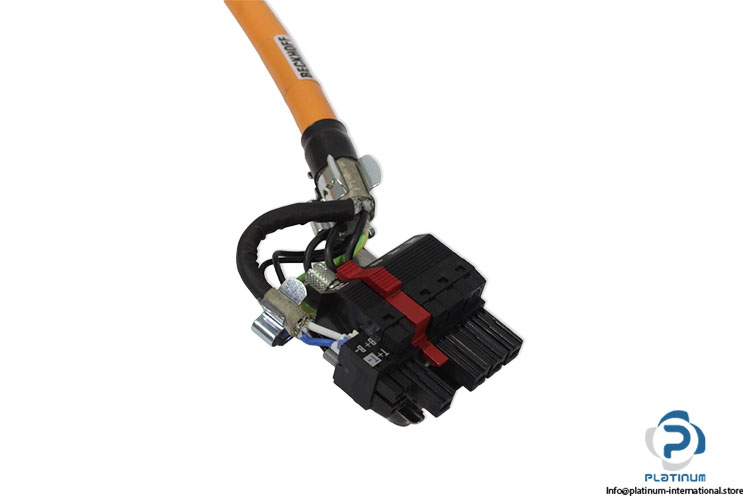

Installation size, Head BPitch dimension 7.62 mm
Connector type, Head Bplug
Contact type, Head Bfemale
Number of positions (face), Head B4-pin
Mating cycles, Head B25
Wire termination, Head BPush-in
Max. wire cross-section, Head BAWG24…AWG8 (0.5 mm²…10 mm²)
Operating voltagemax. 1000 V AC (UL)

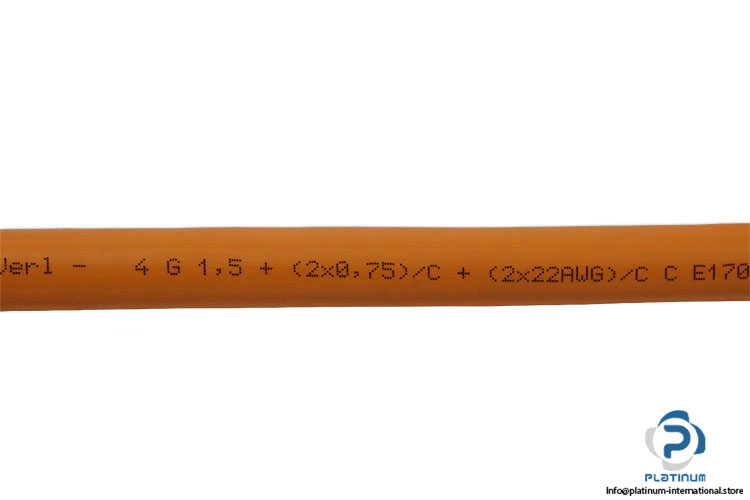

Cross-section (power)1.50 mm² (approx. AWG16)
Cross-section (signal)AWG22 (approx. 0.34 mm²)
Usefixed installation
Material jacketPVC (polyvinyl chloride)
Min. bending radius, fixed installation5 x outer cable diameter
Suitable forAM883x,AM8x4x up to AM8x6x (up to winding code P),AL8000,ALxxxx at AL2250-0002,AX8108,AX8206
Stock KeyJO-004
ConditionNew
SKU1099452
Weight2,37
