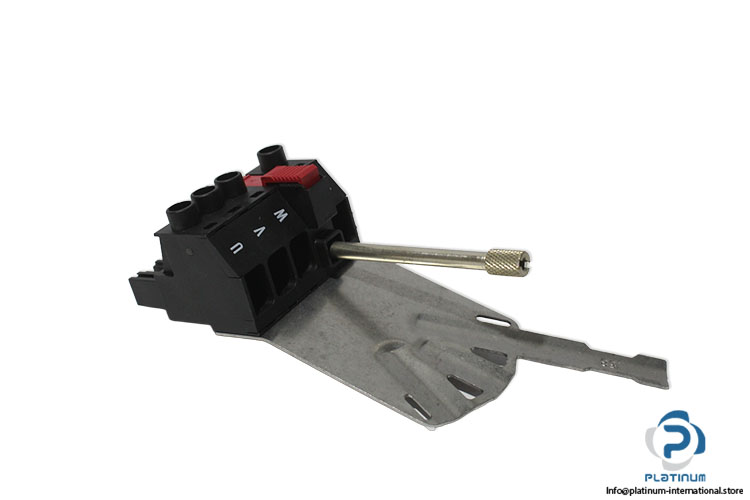

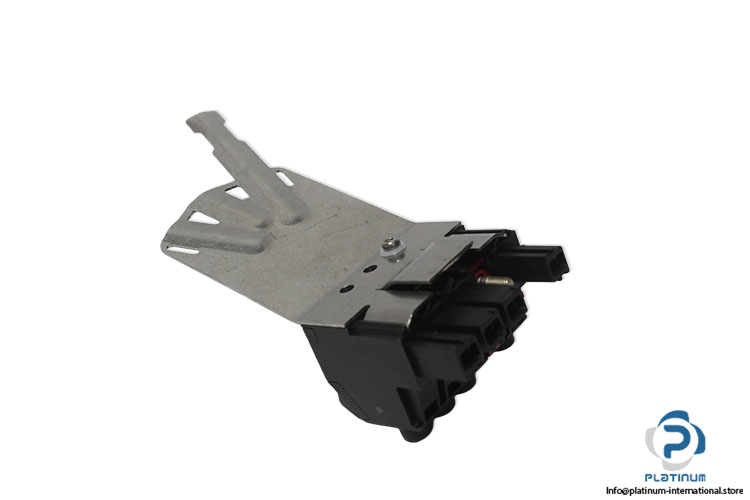

Beckhoff ZS4500-2043 Contactor
New
In stock3 unitsReady to ship
Contactor The BECKHOFF ZS4500-2043 is a high-performance industrial contactor connector designed for the AX5000 drive series. It features a 4-pin female connector, 1000 V AC/DC rated voltage, up to 61.3 A current capacity, flange-and-screw locking, and IP20 protection for reliable industrial electrical connections.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 093824 |
| Code | 1451480000 |
| Used with | Connector for AX5000, 40 A |
| Rated voltage | 1000 V AC/DC |
| Rated current | (61.3 A according to IEC 60664–1‚ IEC 61984), ( 60 A according to UL 1059) |
| Rated impulse voltage | 8.0 kV |
| Contact resistance | 4,5 milliohms |
| Insulation resistance | max. 100 milliohms |
| Connection Type | Connector, female, 4-pin |
| Installation size | Pitch dimension 10.16 mm |
| Recommended torque, screw termination | 1.2…1.5 Nm |
| Recommended torque, screw flange | 0.6 Nm |
| Mating cycles | 25 |
| Way of locking | flange and screw |
| Ambient temperature | -50…+130 °C |
| Protection degree | IP20 |
| Length | 137.00 mm |
| Width | 52.00 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093382 |
| Weight | 0,15 |
