Motors & Drives Servo Motors

Bonfiglioli BMD 65 0.85 1600 24 63 9 NK PTC ENB1 P1N S1N Permanent Magnet Synchronous Motor

bonfiglioli-BMD-65-0.85-1600-24-63-9-NK-PTC-ENB1-P1N-S1N-permanent-magnet-synchronous-motor
bonfiglioli-bmd-65-0-85-1600-24-63-9-nk-ptc-enb1-p1n-s1n-permanent-magnet-synchronous-motor-1
bonfiglioli-bmd-65-0-85-1600-24-63-9-nk-ptc-enb1-p1n-s1n-permanent-magnet-synchronous-motor-2
bonfiglioli-bmd-65-0-85-1600-24-63-9-nk-ptc-enb1-p1n-s1n-permanent-magnet-synchronous-motor-1
bonfiglioli-bmd-65-0-85-1600-24-63-9-nk-ptc-enb1-p1n-s1n-permanent-magnet-synchronous-motor-2
Used
In stock1 unitReady to ship

450,00$

Manufacturer
BONFIGLIOLI
SKU
990288
Category
Servo Motors
Condition
Used
ACBonfiglioliMagnetmotorMotorsPermanentServoServomotorSynchronous
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: Bonfiglioli

Type: Permanent Magnet Synchronous Motors

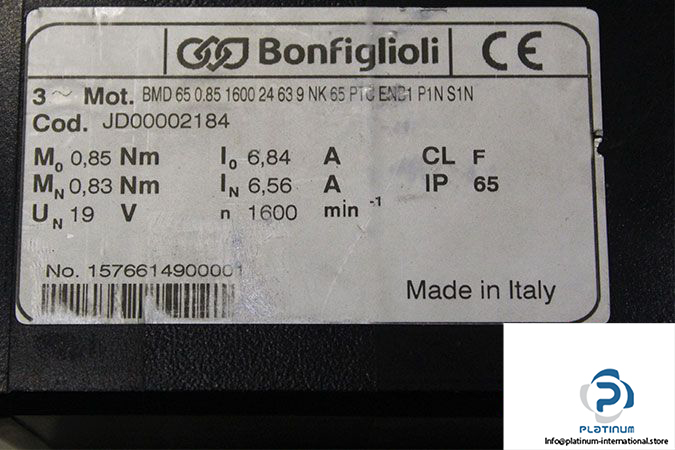

Model: BMD650.85160024639NK65PTCENB1P1NS1N

Cod.: JD00002184

Motor Size: 65

Nominal Voltage [V]: 19

Nominal Current [A]: 6.56

Nominal Torque [Nm]: 0.83

Stall Current [A]: 6.84

Stall Torque [Nm]: 0.85

Nominal Speed [rpm]: 1600

Flange [mm]: 63

Shaft Key way: Without Key

Shaft Diameter [mm]: 9

Protection Class [IP]: 65

Insulation Class: F

Weight [kg]: 1.575
