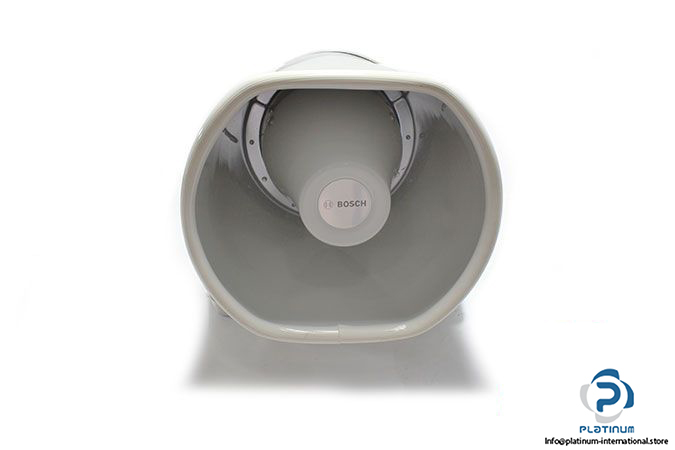

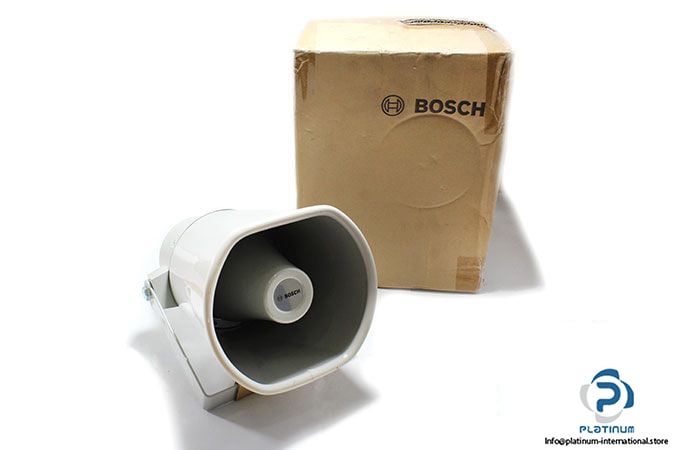

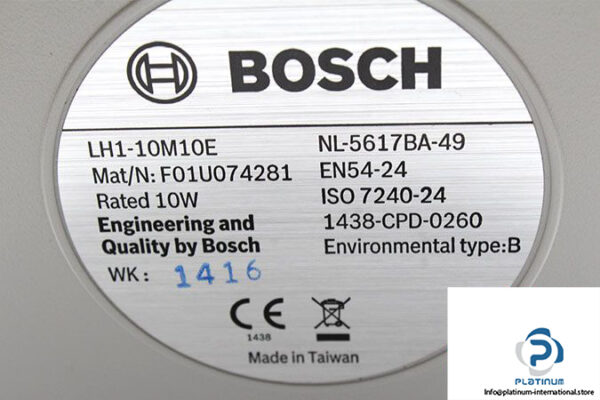

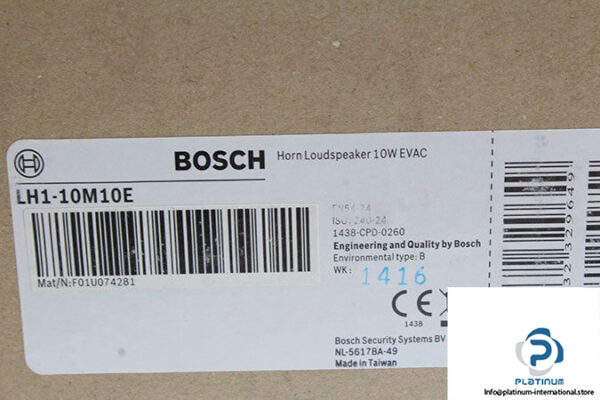

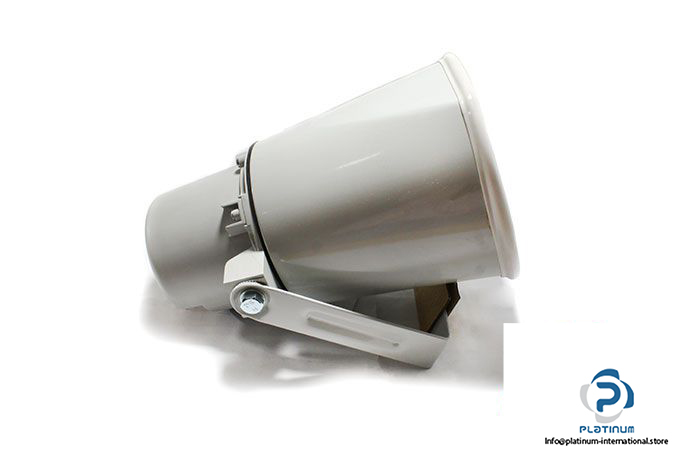

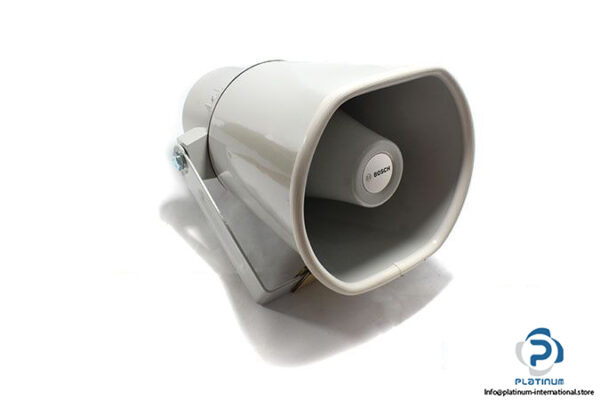

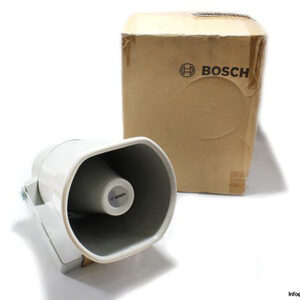

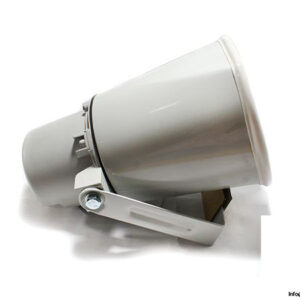

Bosch LH1-10M10E Horn Loudspeaker

Manufacturer: BOSCH

Type: Horn Loudspeaker

Model: LH1‑10M10E

Features:

• High efficiency driver
• Excellent speech reproduction
• Provision for inside mounting of the optional
• line / loudspeaker supervision board

Material (Horn / Rear Cover): Aluminum / ABS

Rated Input Voltage: 100 V

Rated Impedance: 1000 ohm

Max. Power: 15 W

Rated Power: 10 W

Power Tapping: 10 / 5 / 2.5 / 1.25 W

Sound Pressure Level at 10 W / 1 W (1 kHz, 1 m): 112 / 102 dB (SPL)

Effective Frequency Range (- 10 dB): 280 Hz to 5800 Hz

Connector: Screw Terminal Block

Dimensions (W x D): (213 x 186) x 310 mm

Cable Diameter: 6 mm to 12 mm

Protection Class: IP 65

Temperature: -25 … 55 °C

Weight: 3.5 kg
