B&R 3IF786.9-1 INTERFACE MODULE
New
In stock1 unitReady to ship
Interface Module
B&R 3IF786.9-1 POWERLINK interface module with RS232 and Ethernet 100BASE-T communication, 2.5 W power consumption, and IP20 protection for industrial automation systems.100BASE-T3IF786.9-1AutomationB&RCardCommunicationEthernetIF789IndustrialInterfaceModulePowerlinkRJ45RS232
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

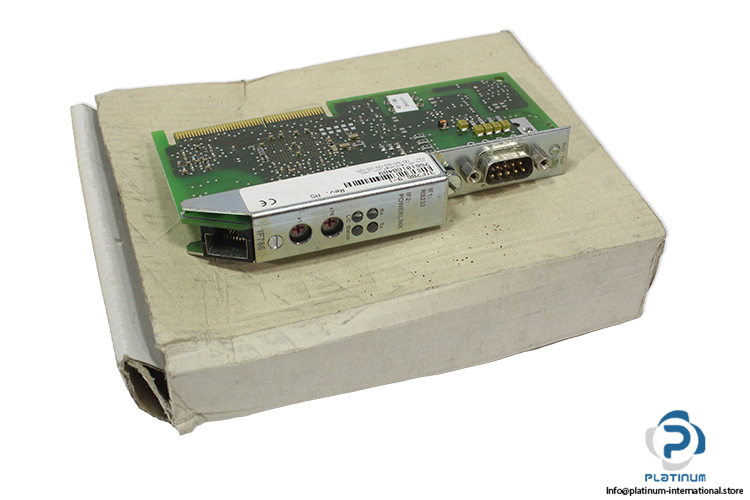

B&R 3IF786.9-1 Interface Module
The B&R 3IF786.9-1 interface module is an industrial communication module designed for reliable data exchange within automation systems. Identified under short name IF789, this POWERLINK interface module can operate as a managing or controlled node and connects via an RJ45 port for Ethernet POWERLINK communication.
Manufacturer: B&R
Type: Interface Module

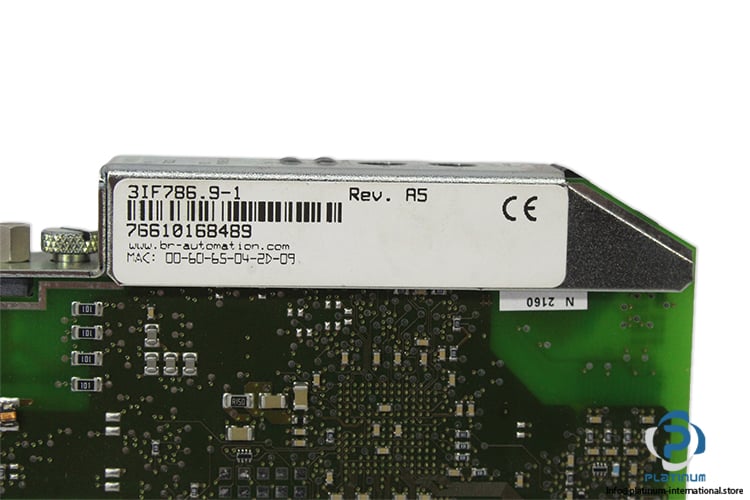

Model: 3IF786.9-1
Code: 76610168489
Revision: A5
MAC No: 00-60-65-04-2D-09
Short Name: IF789
Description: 3IF789.9-1 is a POWERLINK Interface Module used as a managing or controlled node and connected via an RJ45 port.

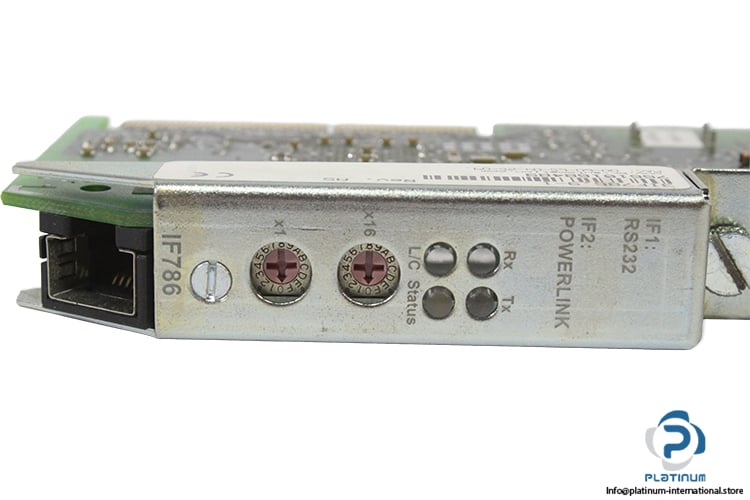

Status Indicators:
Transmitting/Receiving Data for IF1
Status of the POWERLINK Station
Network Activity
Link/Collision for IF2
| Power Consumption (Total) | 2.5 W |
| Interface IF1 Type | RS232 |
| Variant | 9-pin male DSUB connector |
| Max. Transfer Rate | 115.2 kbit/s |
| Interface IF2 Fieldbus | Ethernet POWERLINK |
| Variant | Shielded RJ45 port |
| Line Length | Max. 100 m between two stations (segment length) |
| Transfer Rate | 100 Mbit/s |
| Operating Conditions Degree of Protection (EN 60529) | IP20 |
| Ambient Conditions Temperature “ Operation | 0 to 60°C |
| Temperature “ Storage | -25 to 70°C |
| Relative Humidity “ Operation | 5 to 95% |
