B&R X67CA0P00.0020 POWER CABLE
New
In stock22 unitsReady to ship
Power Cable

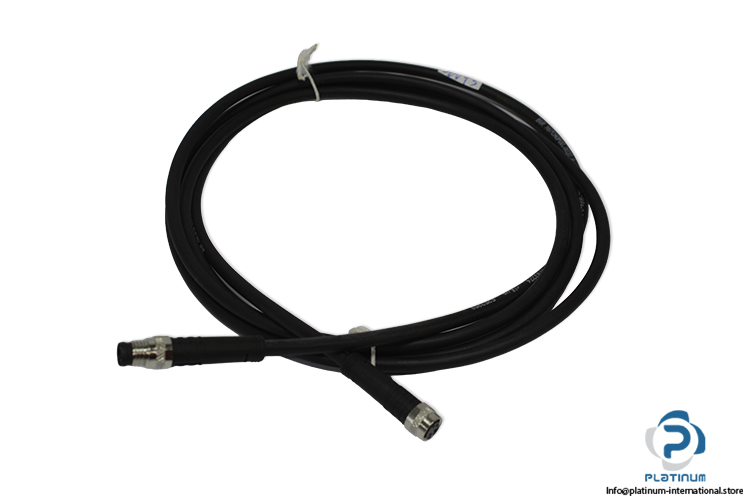

Industrial B&R X67 power cable with 2 m length, 4-pin female to 4-pin male connectors, PUR jacket and 4x 20 AWG conductors designed for automation and I/O system connectivity.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
B&R X67CA0P00.0020 Power Cable
The B&R X67CA0P00.0020 is an industrial power cable designed for reliable connection in automation and control systems. Part of the X67 series, this cable features durable PUR insulation and a 4-pin connector configuration suitable for industrial environments and machine installations.
Manufacturer: B&R
Type: Power Cable
Model: X67CA0P00.0020

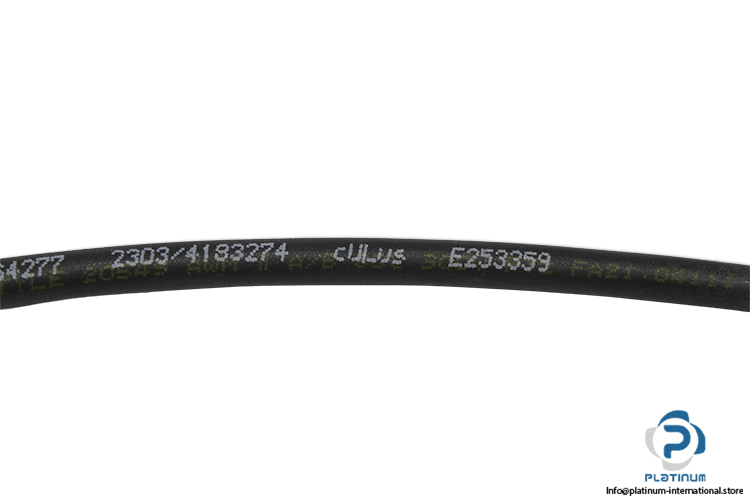

Code: 2303/4183274
Series: X67

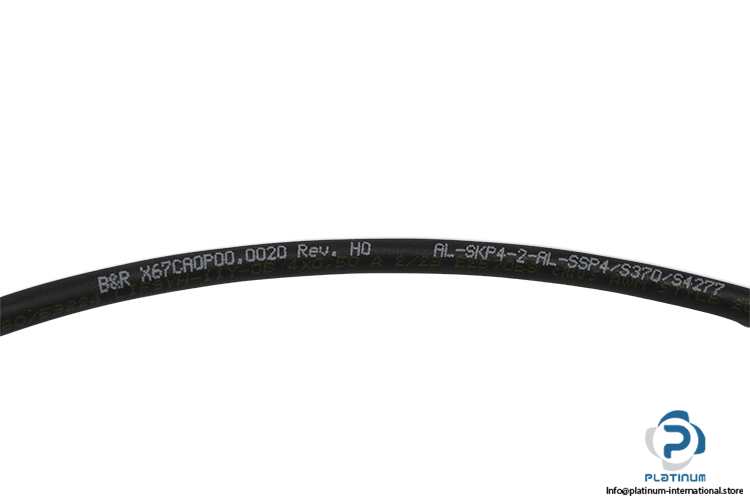

Revision: H0
Cable Info: /E253359
Operating Conditions Degree Of Protection per EN 60529:
Compatible I/O Systems
X20 System
Coated X20 Systems
| Cable Length | 2 m |

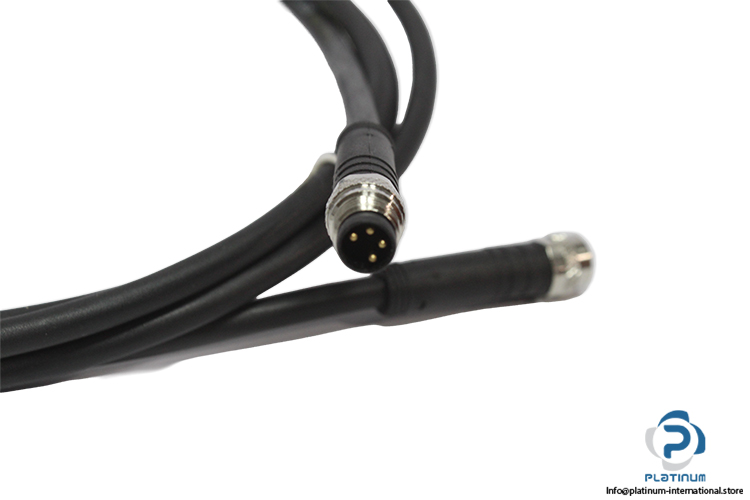

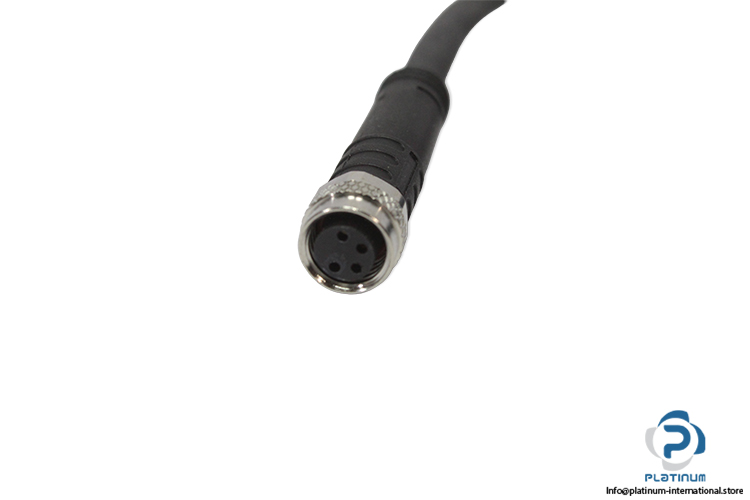

| Connector 1 | 4-Pins Female |
| Connector 2 | 4-Pins Male |
| Cable Cross Section AWG | 4x 20 AWG |
| mm² | 4x 0.5 mm² |
| Cable Construction Cable Shield | Not Shielded |
| Outer Jacket Material | Polyurethane (PUR) |
| Outer Jacket Color | Black |
| Wires Wire Insulation | Polypropylene (PP) 9Y |
| Wire Colors | Brown, Black, Blue, White |
| Conductor Type | Uncoated Copper ETP1 |
| Fine Stranded Wire | (42x 0.1 mm / 42x 38 AWG), Class 6 |
| Stranding | Not Stranded |
| Electrical Properties Nominal Current | Max. 4 A per EN / Contact at 40°C |
| Max. 3 A per UL / Contact Operating Voltage | Max. 60 V |
| Degree Of Insulation | Category II per IEC 61076-2 |
| Conductor Resistance | ‰¤57 Ω/km |
| Insulation Resistance | ‰¥100 MΩ |
| Connector/Coupling | IP67, Only When Screwed In |
| Ambient Conditions “ Temperature Transport | -40 to 90°C |
| Fixed Installation | -30 to 90°C |
| Flexible Installation | -25 to 60°C |
| Mechanical Properties Length | 2 m |
| Diameter | 5 mm ±0.2 mm |
| Bend Radius Fixed Installation | ‰¥5x Outer Diameter |
| Flexible Installation | ‰¥10x Outer Diameter |
| Drag Chain Data Acceleration | Max. 5 m/s² |
| Flex Cycles | 5 Million |
| Velocity | Max. 3.3 m/s |
