B&R X67CA0X01.0005 LINK CABLE
New
In stock32 unitsReady to ship
Link Connection Cable
B&R X67CA0X01.0005 industrial link connection cable, 0.5 m length, IP67 protection, PUR sheathing, and designed for X2X Link system networking between modules.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

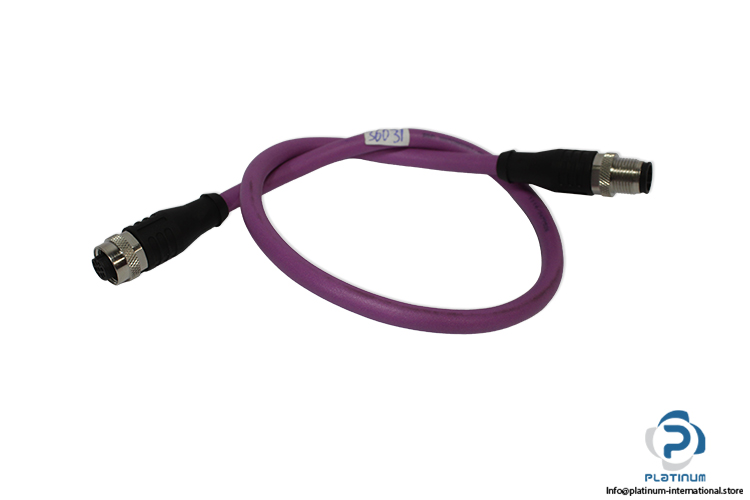

B&R X67CA0X01.0005 Link Connection Cable
The B&R X67CA0X01.0005 is a high-quality link connection cable from the X67 series, designed for reliable X2X Link system networking between modules. Built for industrial environments, this cable features durable PUR outer sheathing, full shielding with tinned copper filaments, and IP67 protection for secure and stable connectivity.
Manufacturer: B&R
Type: Link Connection Cable

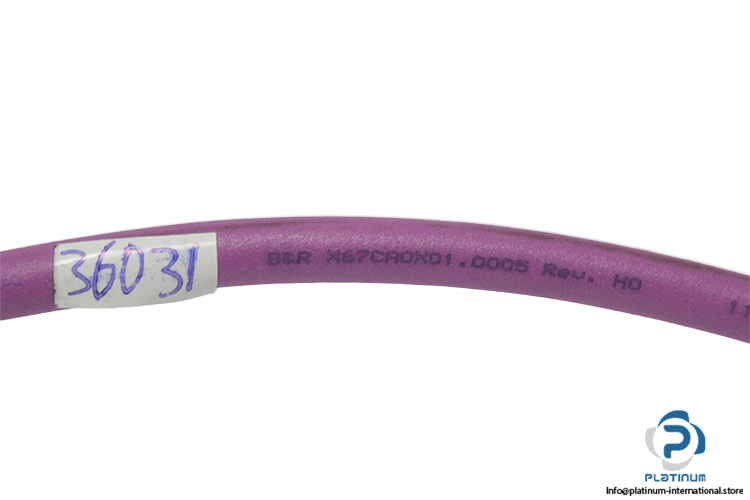

Model: X67CA0X01.0005
Series: X67
Range: X2X
Revision: H0
Suitable For Interface: X2X Link System Networking Between Modules
| Cable Length | 0.5 m |

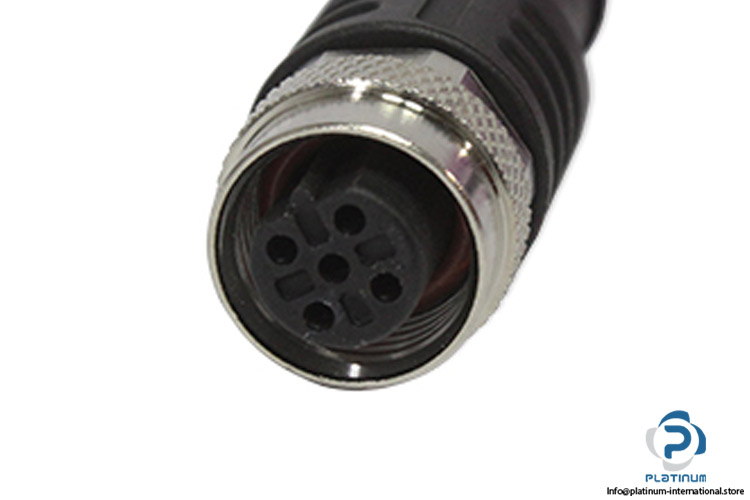

| Connector 1 | 5-Pins Female |

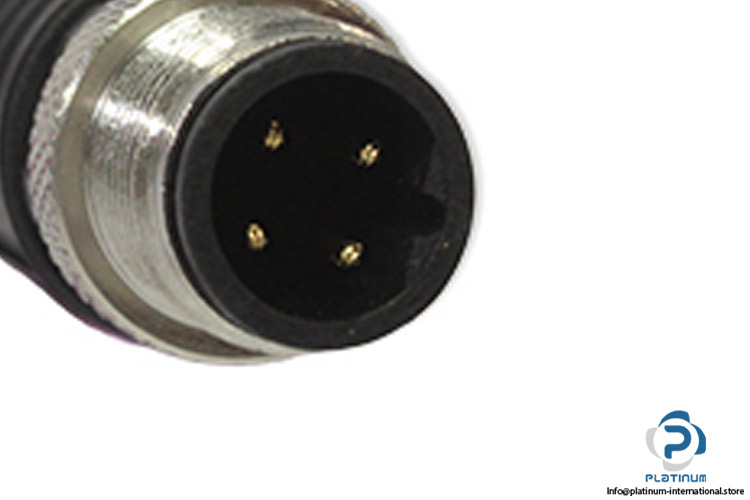

| Connector 2 | 4-Pins Male |
| Cable Stranding | With Additional Wire 22 AWG/19 |
| Entire Shielding | Tinned Cu Filaments |
| Outer Sheathing Material | PUR Mixture |
| Characteristics | Halogen-Free |
| Degree Of Insulation | Category II According To IEC 60664-1 |
| Installed Voltage | Max. 125 V AC/DC |
| Rated Current | Max. 4 A / Contact |
| Protection Type (Plug/Coupling) | IP67 |
| Temperature Range (Fixed Installation) | -25 To +80°C |
