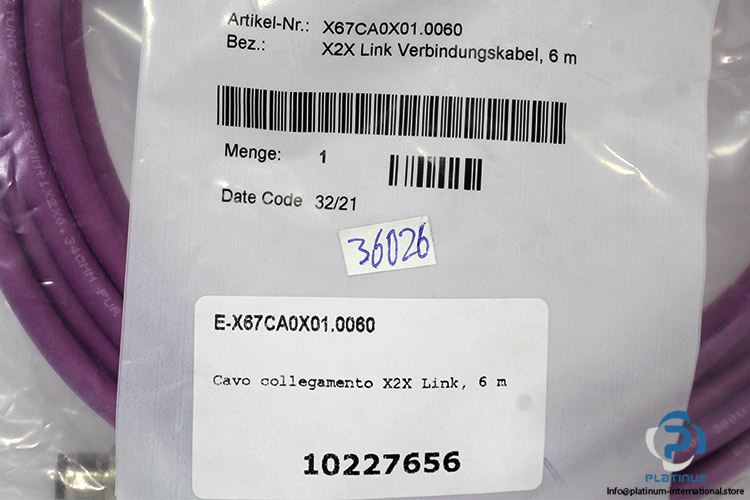

B&R X67CA0X01.0060 LINK CABLE
New
In stock20 unitsReady to ship
Link Connection Cable
B&R X67CA0X01.0060 link connection cable, 6 m length, IP67 protection, halogen-free PUR sheathing, designed for X2X Link system networking between modules.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

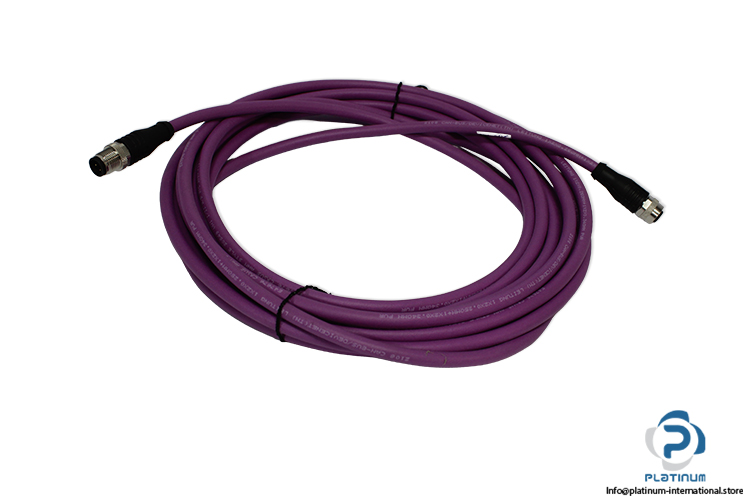

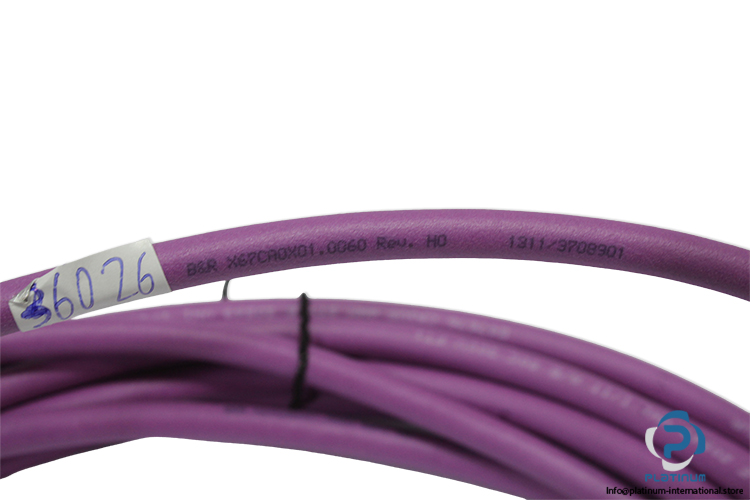

B&R X67CA0X01.0060 Link Connection Cable
The B&R X67CA0X01.0060 is a high-performance link connection cable designed for reliable X2X Link system networking between modules. Built for industrial environments, this cable ensures stable data and power transmission with robust shielding and durable PUR outer sheathing.
Manufacturer: B&R
Type: Link Connection Cable
Model: X67CA0X01.0060
Part No.: 10227656
Code: 1311/3708901 / E-X67CA0X01.0060
Series: X67
Range: X2X
Revision: H0
| Cable Length | 6 m |

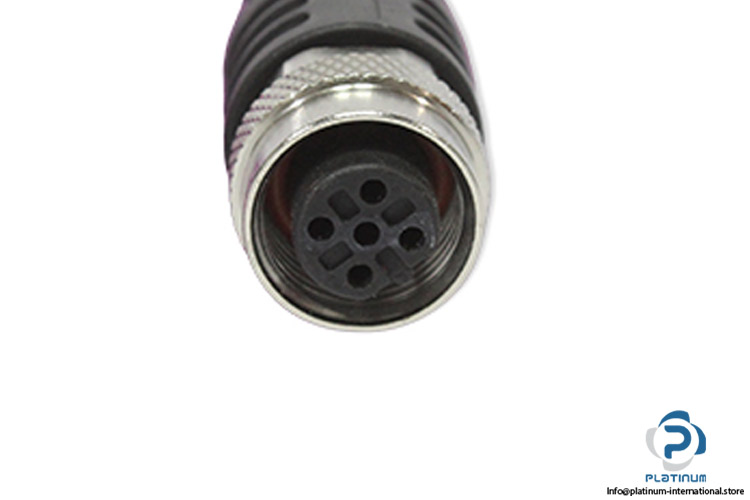

| Connector 1 | 5-pins Female |
| Connector 2 | 4-pins Male |
| Cable Stranding | With Additional Wire 22 AWG/19 |
| Entire Shielding | Tinned Cu Filaments |
| Outer Sheathing Material | PUR Mixture |
| Characteristics | Halogen-Free |
| Degree Of Insulation | Category II According To IEC 60664-1 |
| Installed Voltage | Max. 125 V AC/DC |
| Rated Current | Max. 4 A / Contact |
| Protection Type (Plug/Coupling) | IP67 |
| Temperature Range (Fixed Installation) | -25 To +80 °C |
| Suitable For Interface | X2X Link System Networking Between Modules |
