B&R X67CA0X01.0075 LINK CABLE
New
In stock18 unitsReady to ship
LINK Connection Cable
B&R X67CA0X01.0075 LINK connection cable, 7.5 m length, IP67 protection, PUR sheathing, and designed for X2X Link system networking between modules.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

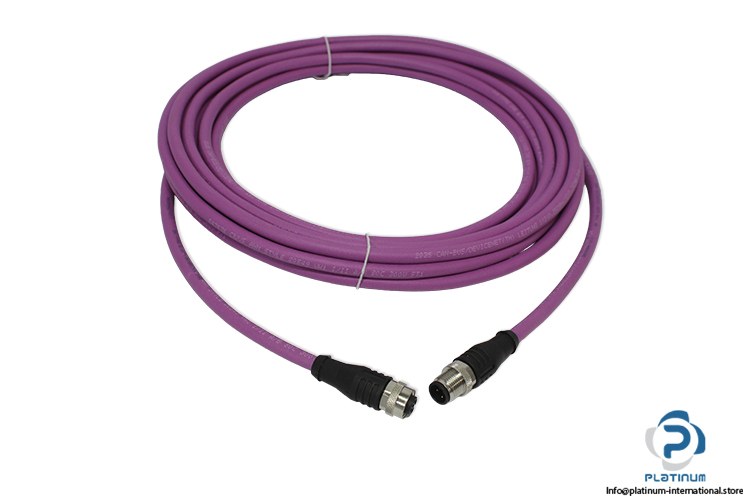

B&R X67CA0X01.0075 LINK Connection Cable
The B&R X67CA0X01.0075 is a high-performance LINK connection cable designed for reliable communication within X2X Link system networks. Engineered for industrial environments, it features robust shielding, PUR outer sheathing, and IP67 protection to ensure dependable operation in demanding installations.
Manufacturer: B&R
Type: LINK Connection Cable
Model: X67CA0X01.0075
Part No.: 10227657

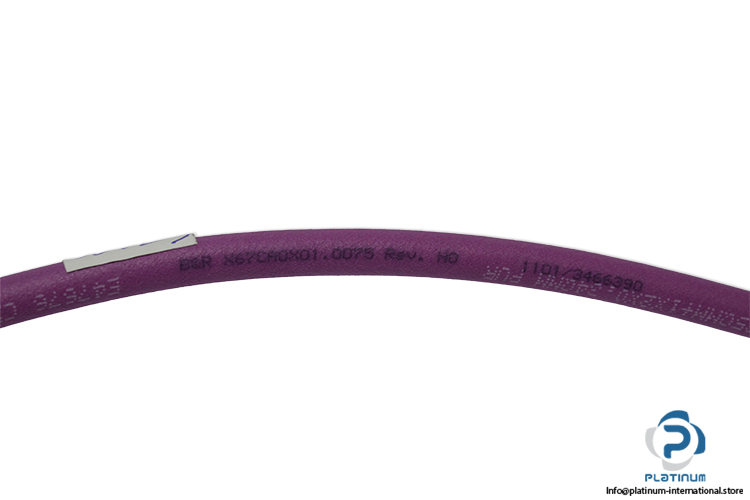

Code: 1101/3466390
Series: X67
Range: X2X
Revision: H0
Outer Sheathing:
| Cable Length | 7.5 m |

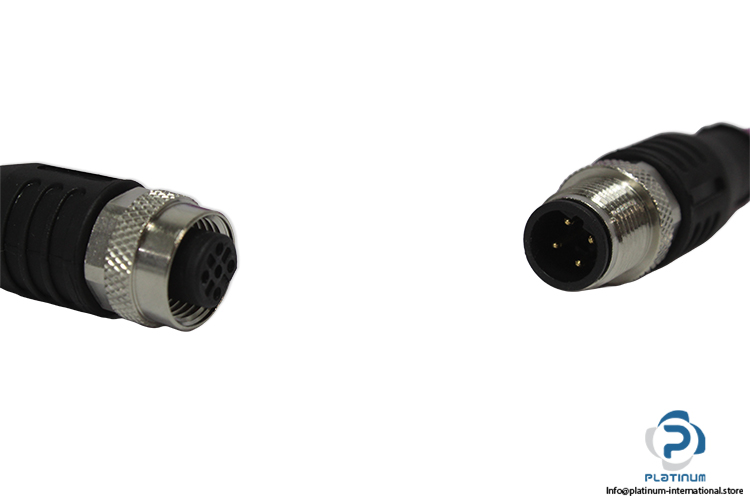

| Connector 1 | 5-Pins | Female |
| Connector 2 | 4-Pins | Male |
| Cable Stranding | With Additional Wire 22 AWG / 19 |
| Entire Shielding | Tinned Cu Filaments |
| Material | PUR Mixture |
| Characteristics | Halogen-Free |
| Degree Of Insulation | Category II According To IEC 60664-1 |
| Installed Voltage | Max. 125 V AC/DC |
| Rated Current | Max. 4 A / Contact |
| Protection Type (Plug/Coupling) | IP67 |
| Temperature Range (Fixed Installation) | -25 To +80°C |
| Suitable For Interface | X2X Link System Networking Between Modules |
