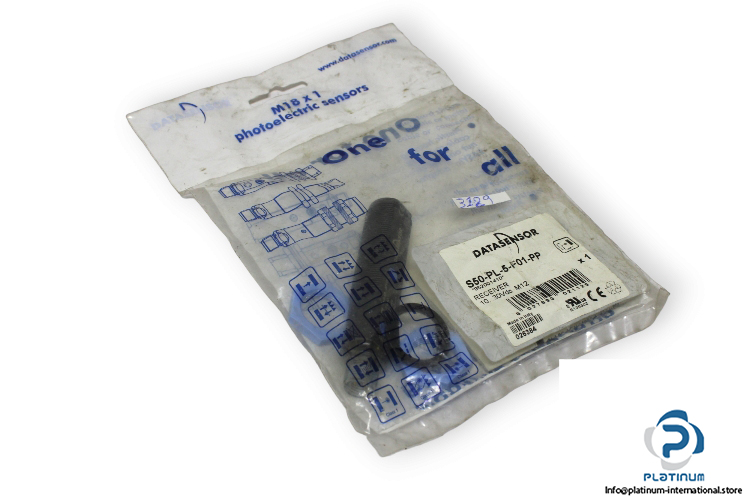

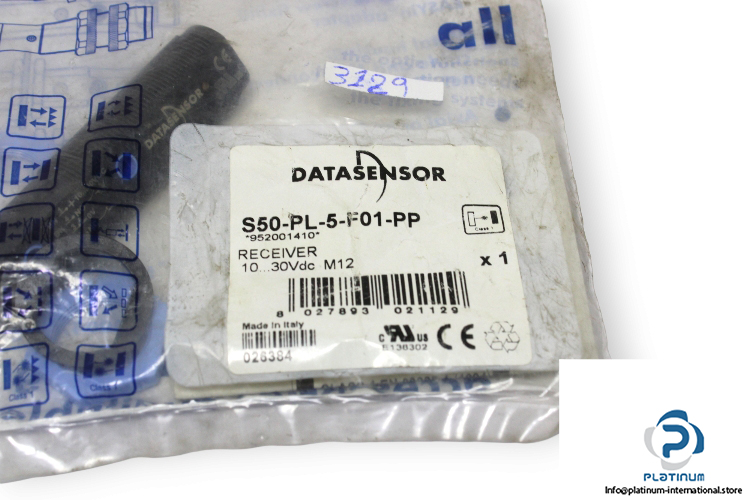

Datasensor S50-PL-5-F01-PP Photoelectric Sensor

Manufacturer: Datasensor
Type: Through beam receiver/ Photoelectric Sensor
Model: S50-PL-5-F01-PP
Part No.: 952001410

Power supply: 10 … 30 V DC
Consumption current: 30 mA max
Output current: 100 mA max.
Operating mode: DARK mode on N.O. output / LIGHT mode on N.C. output
Response time: 2 ms
Switching frequency: 250 Hz
Sensing range max.: > 10 m
Function: Through beam receiver
Emission: red Laser 650 nm, Axial optic
Connection: M12 Connector
Output: 4-wire, PNP connection,(NO,NC contact)
Housing material: PBT, nickel plated brass
Operating temperature: -25 … 55 °C
Protection degree: IP67
